49
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-32S3000 ONLY

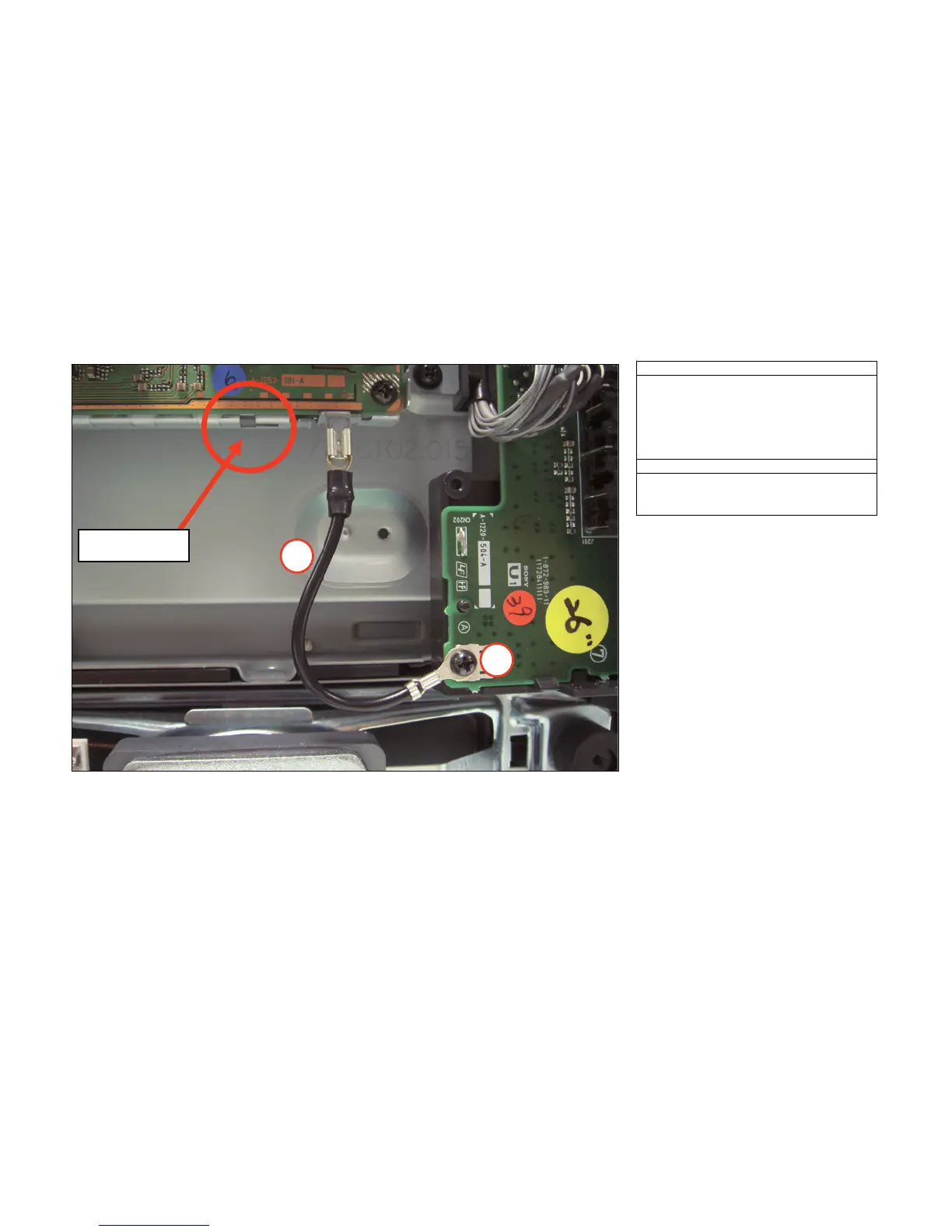

1. Wire route ESD GND wire as shown
(NOTE: Actual Part will have RED insulation)
2. Use 3x12mm screw to fix ring terminal in
U1 Bracket
3mm TORQUE: 6.0kg-cm (+-1.0kg-cm)
OPERATION PROCESS
TORQUE SPECIFICATION
1
2
NO SIDE CLAMP
[DO NOT INSTALL]
U1 BOARD (CONTINUED)
