75
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-46S3000 ONLY

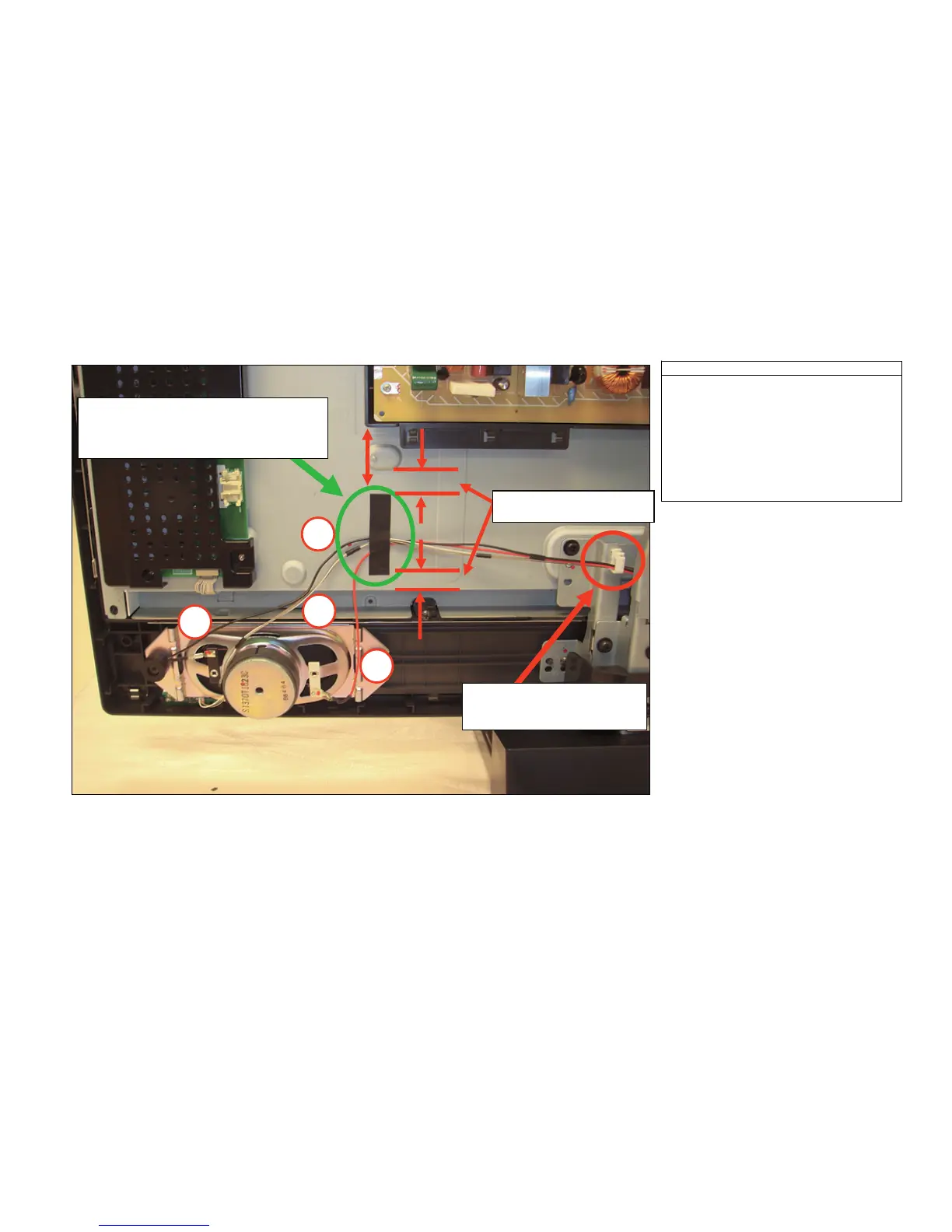

Wire Dress Right Speaker wires and H4
cables in side clamp (white) and G3-Bd
bracket clips (black).
NOTE: Rt. Spkr. Wires are NOT dressed
in far left G-Bracket clip!
OPERATION PROCESS
NOTE: H4-Bd/Rt. Speaker cables
are dressed in plastic clip.
Clip installed by Vendor.
2
1
Apply Sheet Core C to hold Rt Speaker
Align horizontally with Edge of G3 Bracket.
Align vertically with even space above/below
tape(see photo).
3
2
For Sheet Core C alignment:
Disatances about same.
H4 BOARD AND RIGHT SPEAKER
To Next Page
