76
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-46S3000 ONLY

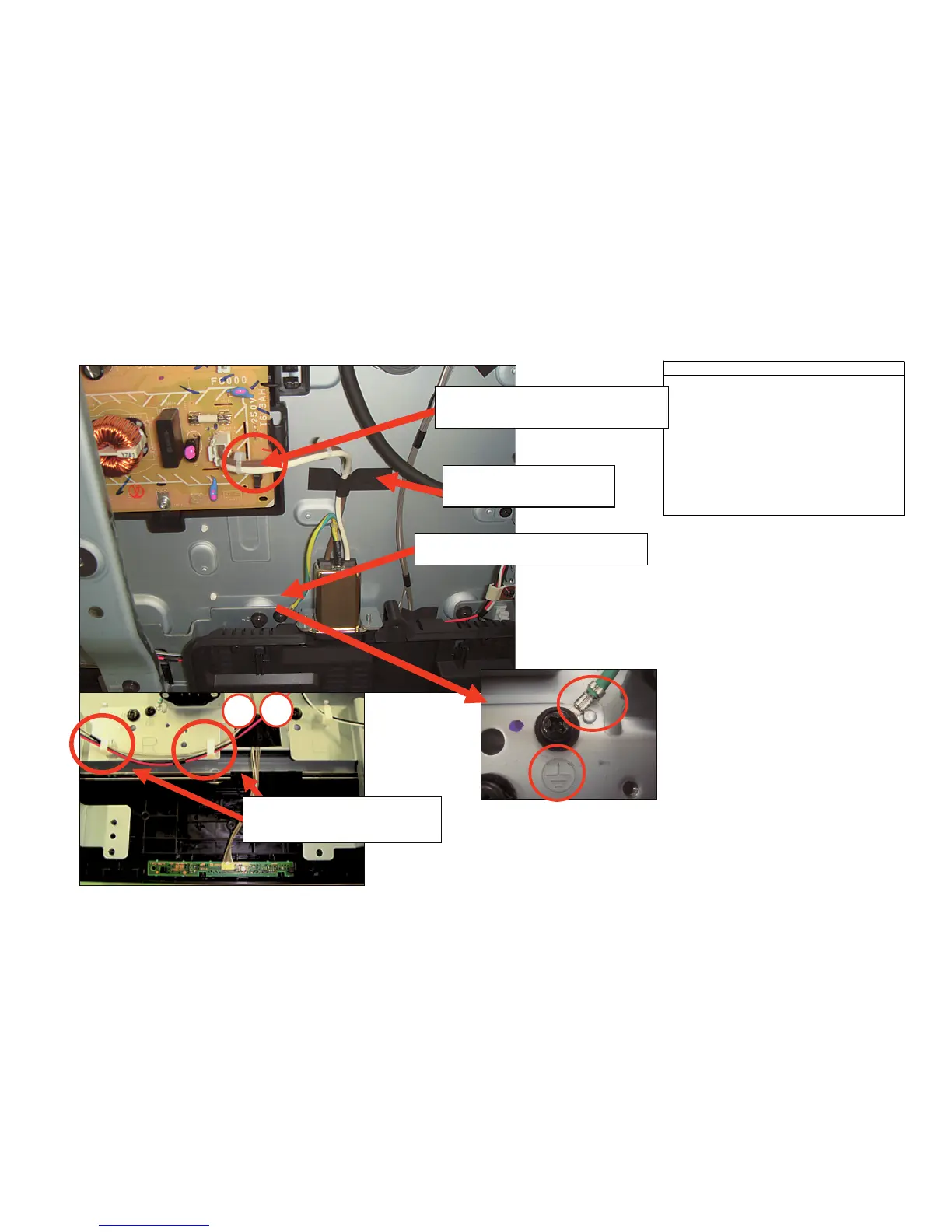

Dress H4/Rt. Speaker cables in white
side clips.
Dress AC Inlet Cables in Plastic clip on the
G-Bracket as shown.
Make sure Green/Yellow Earth Gnd. Is screwed
into lower LCD Bracket (w/4x8mm screw)
OPERATION PROCESS
2
Dress AC Inlet Cables
in Sheet Core C
NOTE Angle of Earth Gnd. Wire.
(Ring terminal touches "dimple" on plate)
NOTE: H4-Bd/Right Speaker cables
are dressed in plastic clip.
Clip installed by Vendor.
1
DO NOTDress AC Inlet Cables
in M-TYPE CLAMP (G3-Bd)
H4 BOARD AND RIGHT SPEAKER (CONTINUED)
To Next Page
