— 22 —
KV-13FM13 / 13FM14
5-2. PRINTED WIRING BOARDS AND
SCHEMATIC DIAGRAMS INFORMATION
All capacitors are in µF unless otherwise noted. pF : µµF 50WV or less
are not indicated except for electrolytics and tantalums.
All electrolytics are in 50V unless otherwise speciÞ ed.
All resistors are in ohms. KΩ=1000Ω, MΩ=1000kΩ
Indication of resistance, which does not have one for rating
electrical power, is as follows: Pitch : 5mm
Rating electrical power :
1
/
4
W
1
/
4
W in resistance,
1
/
10
W and
1
/
8
W in chip resistance.
: nonß ammable resistor.
: fusible resistor.
: internal component.
: panel designation and adjustment for repair.
All variable and adjustable resistors have characteristic curve B, unless
otherwise noted.
Readings are taken with a color-bar signal input.
Readings are taken with a 10MΩ digital multimeter.
Voltages are DC with respect to ground unless otherwise noted.
Voltage variations may be noted due to normal production tolerances.
All voltages are in V.
S : Measurement impossibillity.
: B+line.
:
V
B-line. (Actual measured value may be different).
: signal path. (RF)
Circled numbers are waveform references.

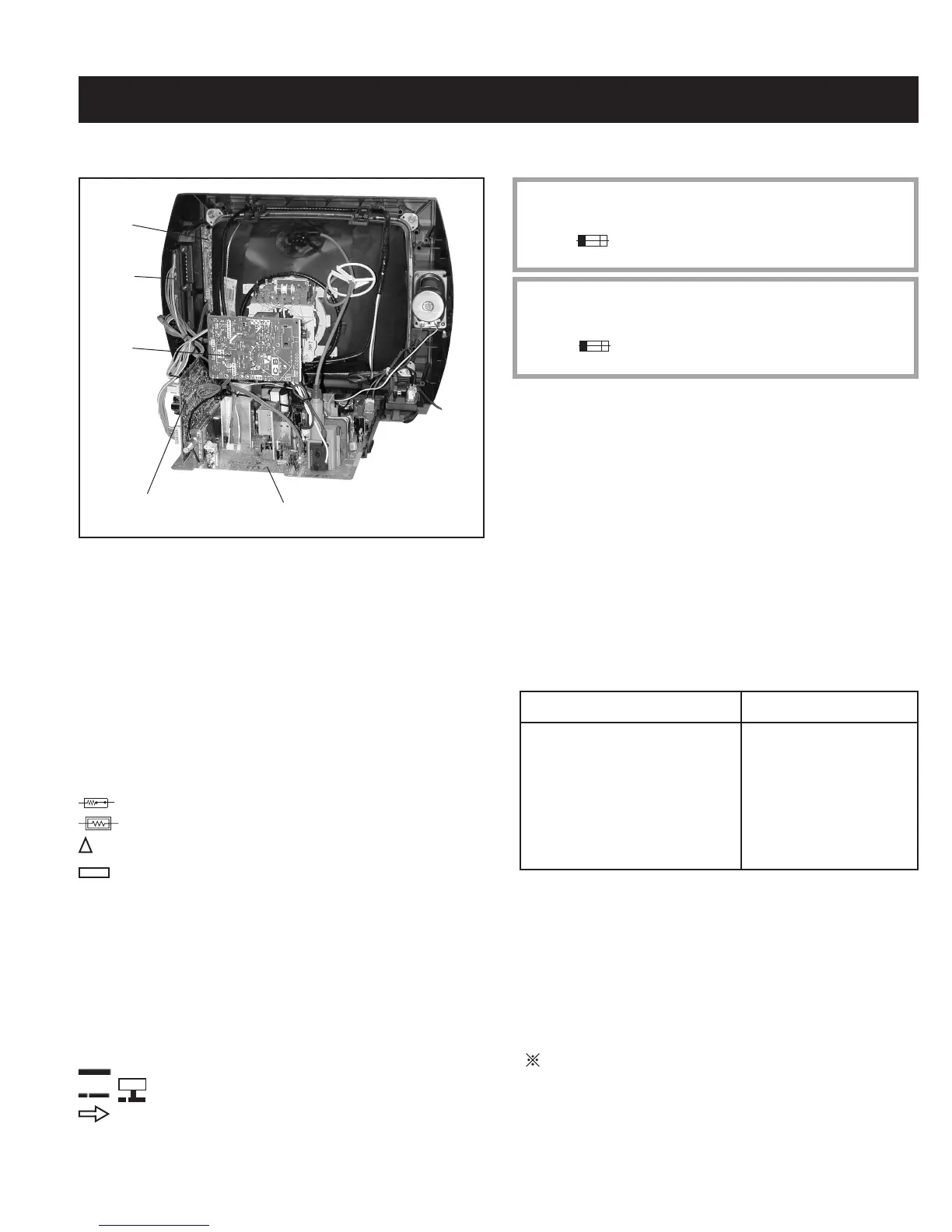

5-1. CIRCUIT BOARDS LOCATION
REFERENCE INFORMATION
RESISTOR
: RN METAL FILM
: RC SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RW NONFLAMMABLE WIREWOUND
: RS NONFLAMMABLE METAL OXIDE
: RB NONFLAMMABLE CEMENT
: ADJUSTMENT RESISTOR
The components identiÞ ed by shading and
!
symbol are critical for safety. Replace
only with part number speciÞ ed.
The symbol indicates a fast operating fuse and is displayed on the component
side of the board. Replace only with fuse of the same rating as marked.
Les composants identiÞ es per un trame et une marque
!
sont critiques pour la
securite. Ne les remplacer que par une piece portant le numero speciÞ e.
Le symbole indique une fusible a action rapide. Doit etre remplace par une
fusible de meme yaleur, comme maque.
The components identiÞ ed by
X
in this basic schematic diagram
have been carefully factory-selected for each set in order to
satisfy regulations regarding X-ray radiation. Should replacement be
necessary, replace only with the value originally used.
When replacing components identiÞ ed by
Y
, make the necessary
adjustments as indicated. If the results do not meet the speciÞ ed value,
change the component identiÞ ed by
X
and repeat the adjustment until
the speciÞ ed value is achieved.
(Refer to R564 Adjustment on page 15.)
When replacing the parts listed in the table below, it is important to
perform the related adjustments.
Part Replaced (
Y
) Adjustment (
X
)
DY, T505, CRT, IC501, C507, C520,
C505, C509, C515, L509, L508,
C551, L510, C546, C537, C547,
D517, D518, D519, R560, R561,
R562, R563, R565, R566, R567,
R525............................A Board
IC1301......................MB Board
HV HOLD-DOWN
R564
COIL
: LF-8L MICRO INDUCTOR
CAPACITOR
: TA TANTALUM
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE
SECTION 5: DIAGRAMS
HC
Board
CB
Board
A Board
MB Board
HD
Board
To Next Page
