Operating Instructions
Connecting Additional Equipment

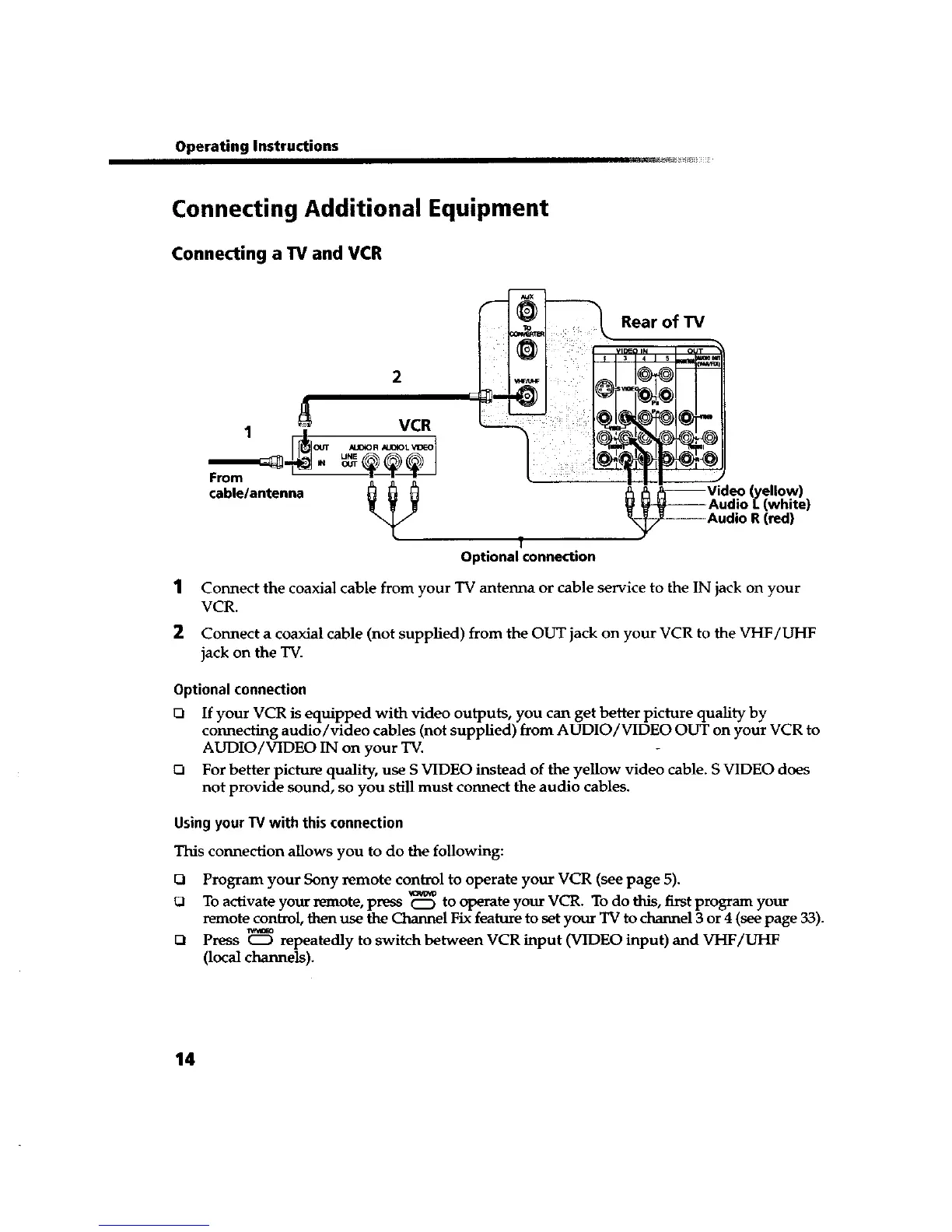

Connecting a TV and VCR
1
2
Rear of TV
2
1 [__o_ VCR
From
cable/antenna t_ _ _Video (yellow)
_ Audio I. (white)
......... Audio R(red)
?
Optional connection
Connect the coaxial cable from your TV antenna or cable service to the IN jack on your
VCR.
Connect a coaxial cable (not supplied) from the OUT jack on your VCR to the VHF/UHF
jack on the TV.
Optional connection
Q If your VCR is equipped with video outputs, you can get better picture quality by
connecting audio/video cables (not supplied) from AUDIO/VIDEO OUT on your VCR to
AUDIO/VIDEO IN on your TV.
n For better picture quality, use S VIDEO instead of the yellow video cable. S VIDEO does
not provide sound, so you still must connect the audio cables.
UsingyourTV with this connection
This connection allows you to do the following:
Q Program your Sony remote control to operate your VCR (see page 5).
To activate your remote, press CID to operate your VCR. Todothis, first pmgram your
remote control, then use the Channel Fix feature to set your TV to channel 3 or 4 (see page 33).
n P_ss CID repeatedly to switch between VCR input (VIDEO input) and VHF/UHF
(local channels).
