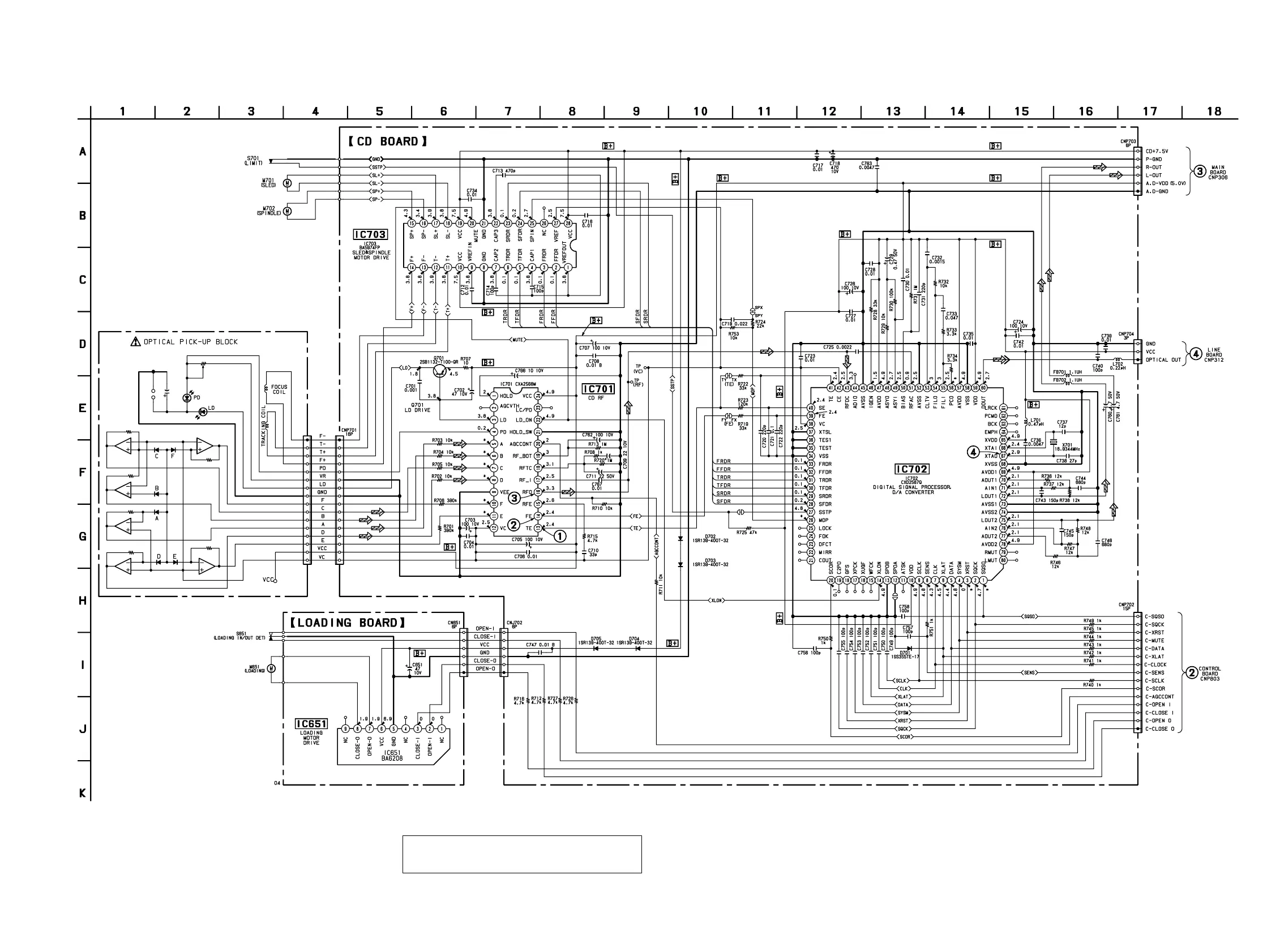

6-10. SCHEMATIC DIAGRAM — CD SECTION — • Refer to page 68 for IC Block Diagrams. Refer to page 40 for Waveforms. Refer to page 35 for Note.
PMC-DR45L
– 41 – – 42 –
(KSS-213C)
(Page 49)
(Page 61)
(Page 56)
• Voltage and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : CD PLAY
∗
: Impossible to measure
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
