Sony PMC-DR45L - Schematic Diagram -Control Section

PMC-DR45L
– 55 – – 56 –
• Voltage and waveforms are dc with respect to
ground under no-signal (detuned) conditions.
no mark : FM
( ) : PB (TAPE)
< > : REC (TAPE)
[ ] : CD PLAY
∗
: Impossible to measure

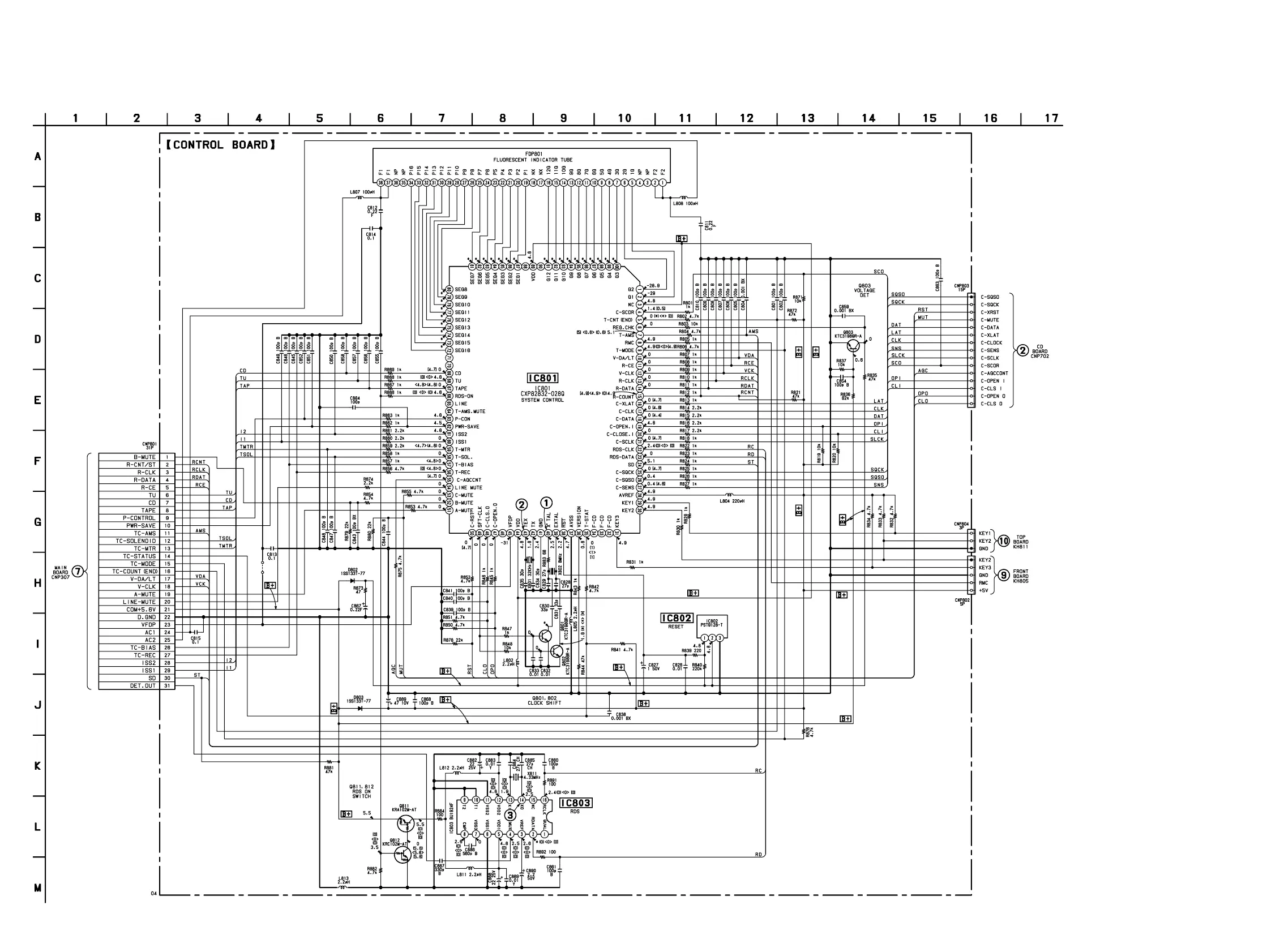

6-16. SCHEMATIC DIAGRAM — CONTROL SECTION — • Refer to page 71 for IC Block Diagram. Refer to page 52 for Waveforms. Refer to page 35 for Note.
(Page 42)
(Page 60)
(Page 58)
(Page 50)
