Sony PMC-DR45L - Speaker (L) Section

– 78 –

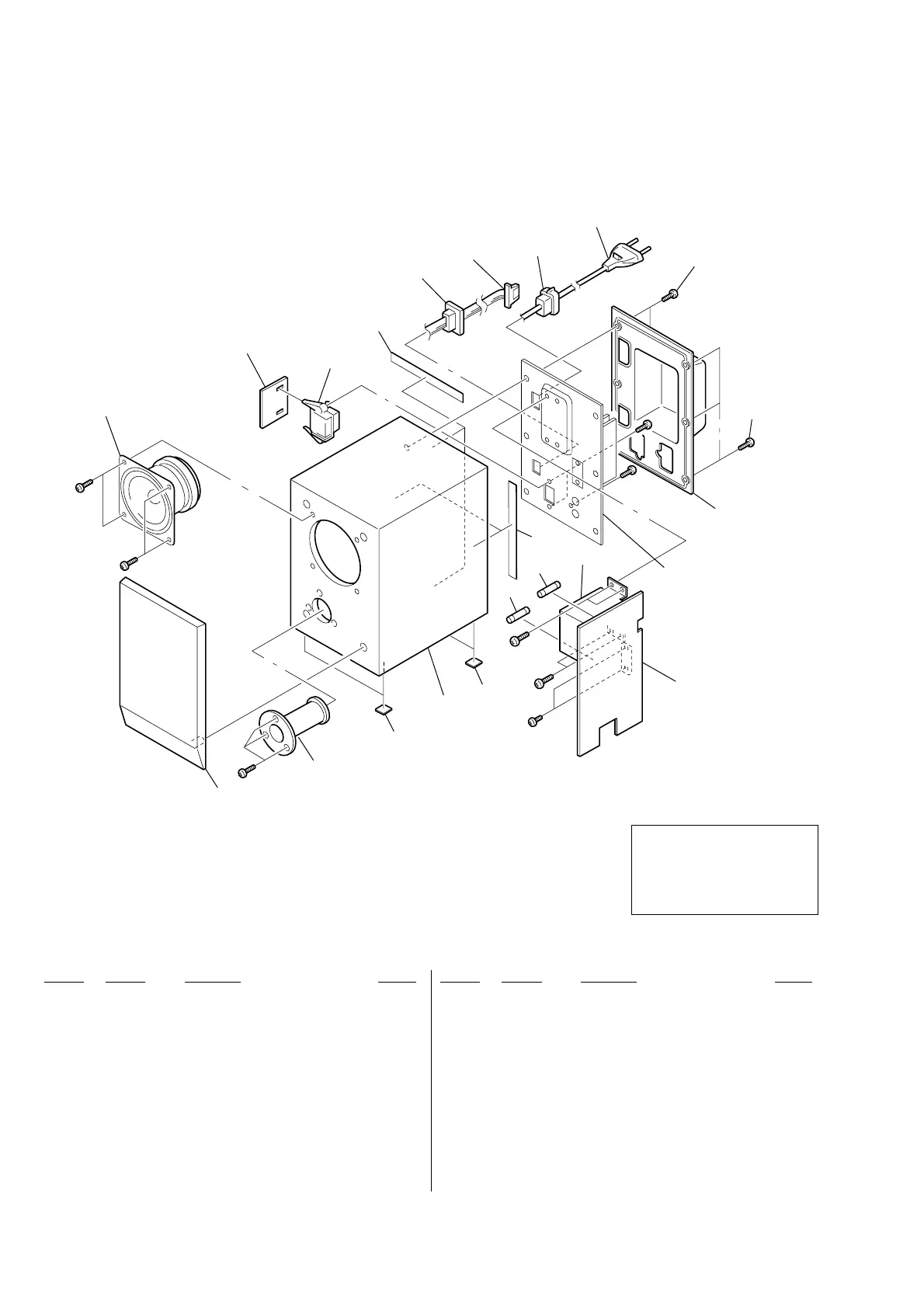

7-7. SPEAKER (L) SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 X-3378-542-1 NET ASSY, FRAME
302 3-049-718-01 DUCT (SPEAKER)
303 3-042-254-01 BOX (L), SPEAKER (SILVER)
303 3-042-254-11 BOX (L), SPEAKER (WOOD) (SP)
303 3-042-254-21 BOX (L), SPEAKER (WOOD) (EXCEPT SP)
* 304 A-3322-508-A POWER BOARD, COMPLETE
* 305 1-677-027-11 SPEAKER BOARD
306 3-036-280-01 BUSHING (9 PIN), CORD
* 307 3-703-244-11 BUSHING (2104), CORD
0 308 1-575-651-11 CORD, POWER
309 3-048-210-01 CUSHION (S.P.K) (B)
310 3-029-171-01 SCREW, +B TAPPING
311 3-041-358-01 CABINET (REAR), SPEAKER (AEP, UK)
311 3-041-358-11 CABINET (REAR), SPEAKER (IT, CET, SP)
312 3-029-170-01 FOOT (SPEAKER)
313 3-048-209-01 CUSHION (S.P.K) (A)
314 1-757-050-11 LEAD WIRE (WITH CONNECTOR)
0 F901 1-532-501-31 FUSE (0.8A)
0 F902 1-532-506-31 FUSE (6.3A)
J901 1-536-707-21 TERMINAL, PUSH (2P) (SPEAKER OUT R-CH)
SP101 1-529-615-11 SPEAKER (8cm)
0 T901 1-435-350-11 TRANSFORMER, POWER
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
301
302
303
304
305
306
314
307
308
309
313
310
310
311
312
312
#8
#8
#8
J901
SP101
F902
T901
not supplied
F901
#7
#7
#1
#1
#1
Ver 1.1
