Sony PMC-DR45L - Schematic Diagram -Main Section

PMC-DR45L
– 49 – – 50 –
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
( ) : PB (TAPE)
< > : REC (TAPE)
[ ] : CD PLAY

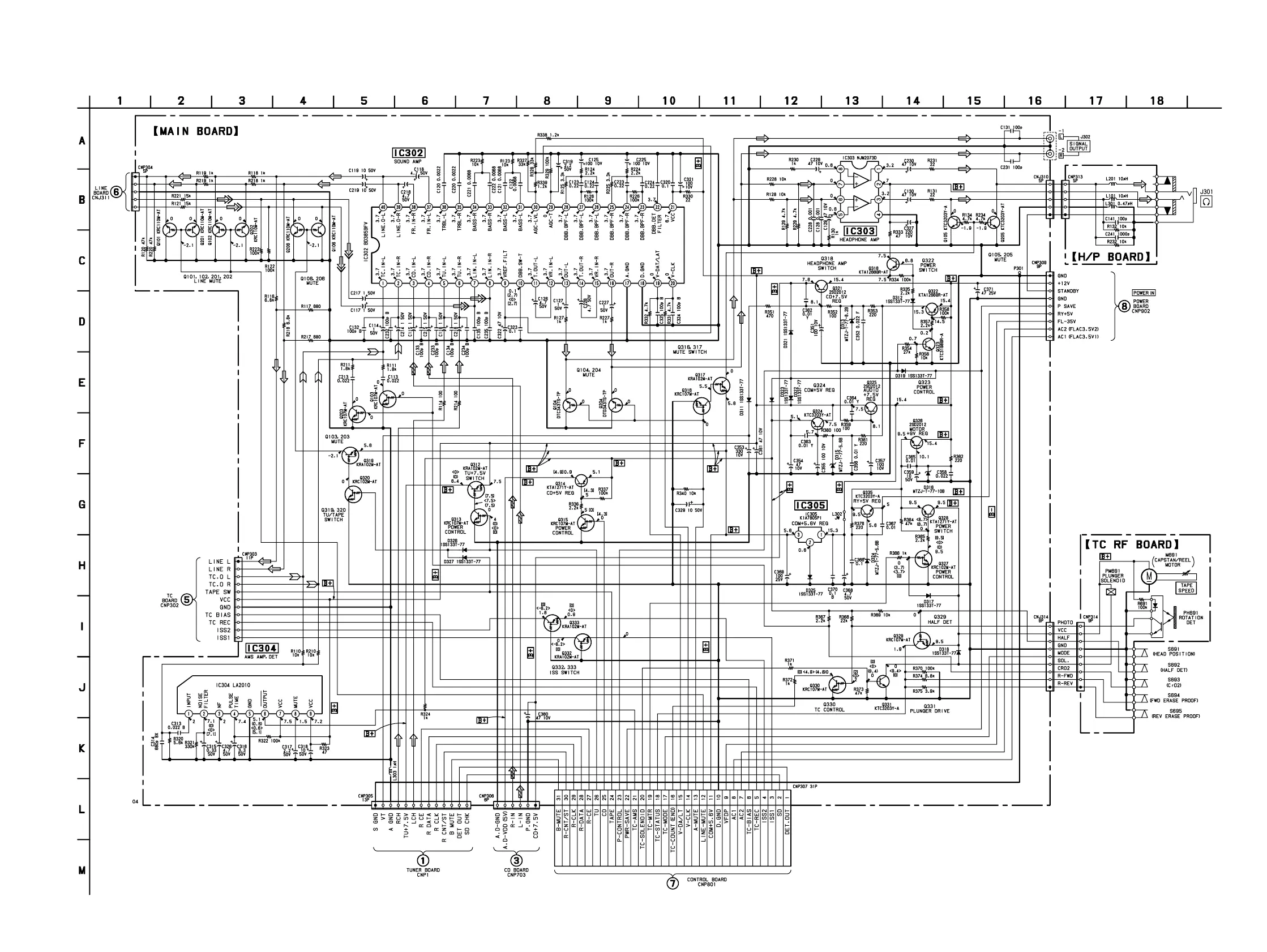

6-14. SCHEMATIC DIAGRAM — MAIN SECTION — • Refer to page 70 for IC Block Diagrams. Refer to page 35 for Note.
(Page
61)
(Page 46)
(Page 38)
(Page 42)
(Page 55)
(Page 65)
