– 77 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

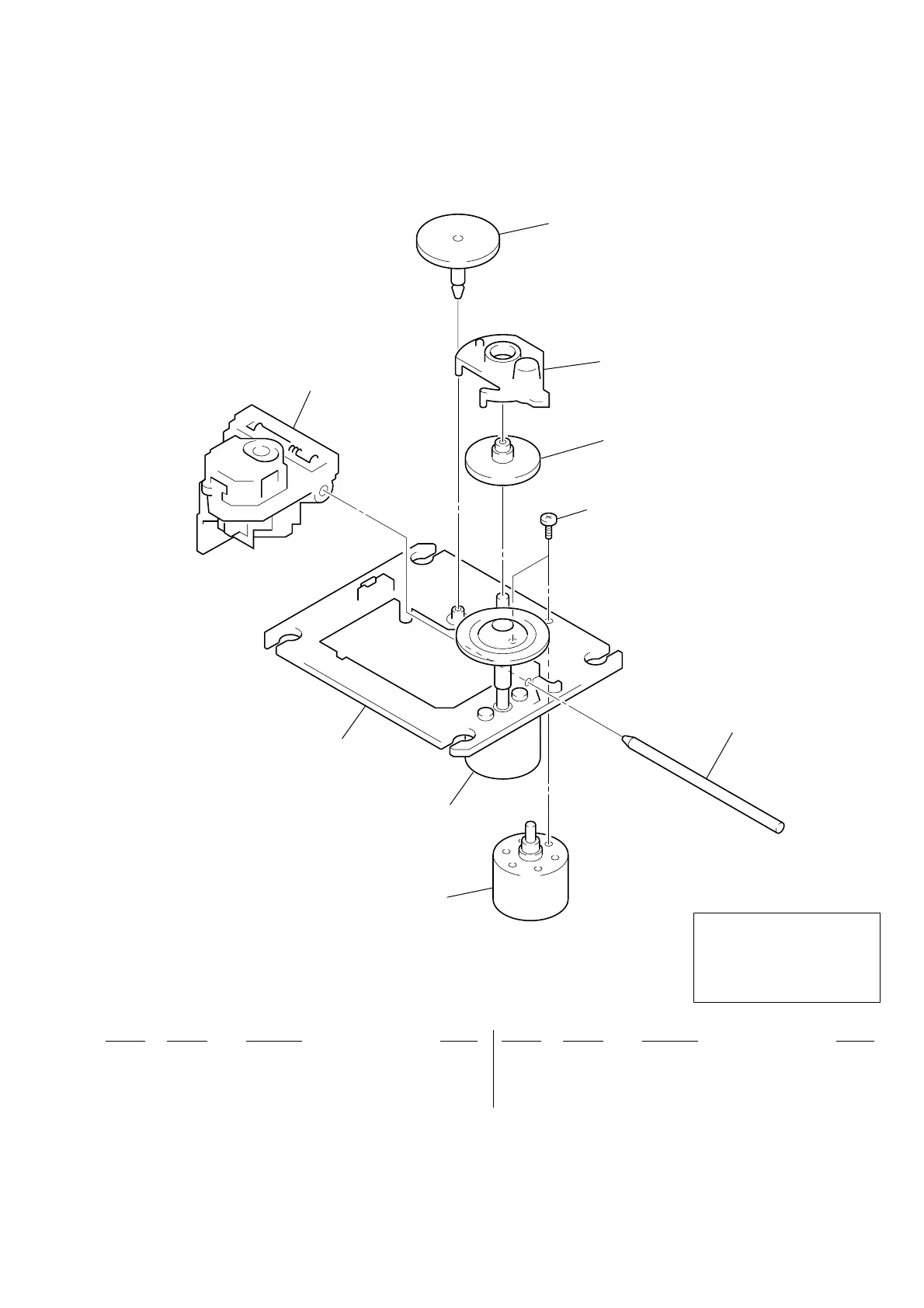

7-6. OPTICAL PICK-UP SECTION
(KSM-213CCP)
0 251 8-848-483-05 PICK-UP, OPTICAL KSS-213C
252 2-627-003-02 GEAR (B) (RP)
253 2-626-908-01 SHAFT, SLED
254 3-713-786-51 SCREW +P 2X3
255 X-2646-381-1 CHASSIS ASSY (MB) (RP), MOTOR (SPINDLE)
(INCLUDING M701)
256 2-626-907-01 GEAR (A)
M702 X-2625-769-1 GEAR ASSY, MOTOR
not supplied
M702
M701
253
251
256
252
254
255
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
