– 72 –
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark

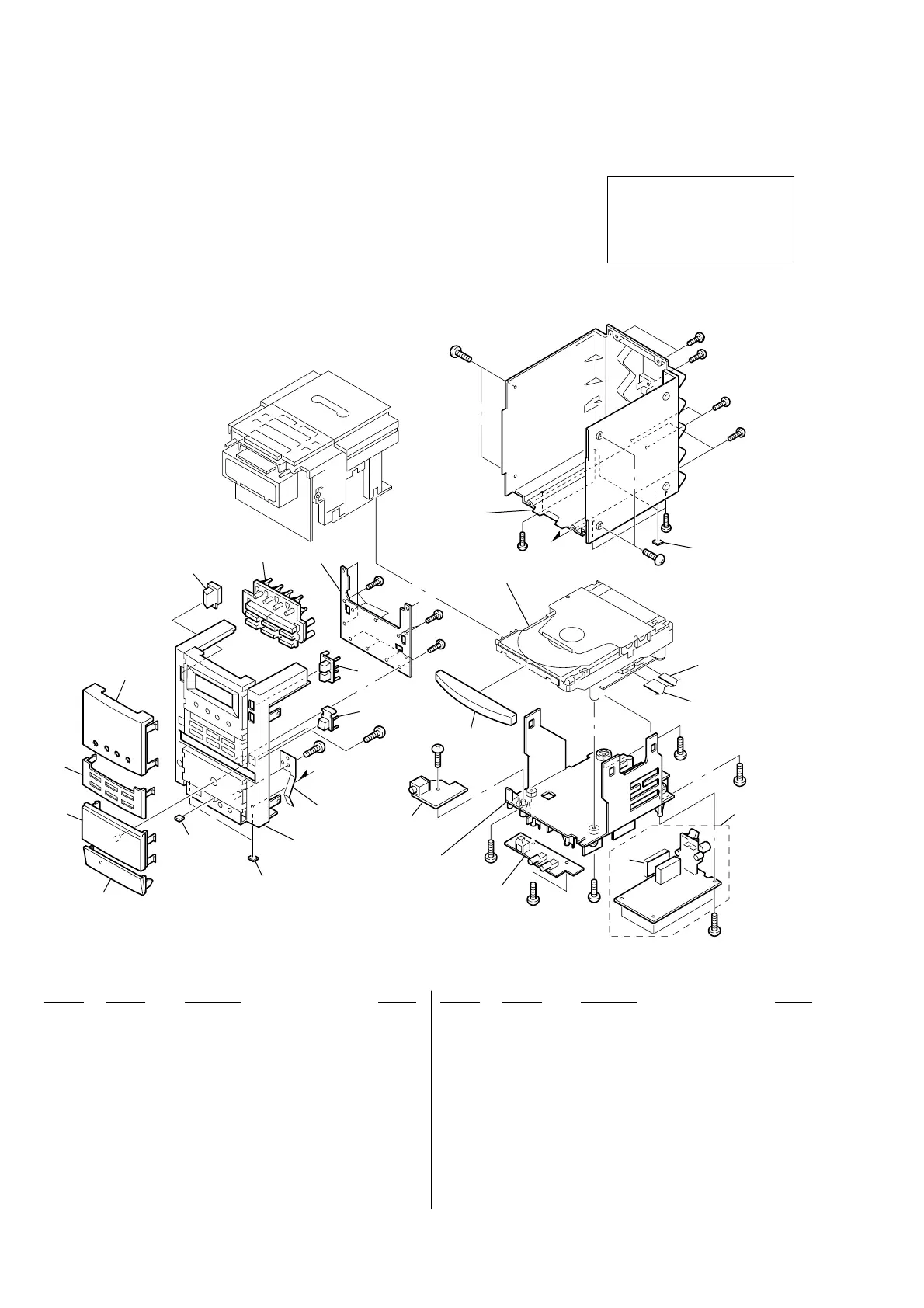

7-1. CABINET SECTION
Ref. No. Part No. Description Remark
1 X-3378-540-1 CABINET (FRONT) SUB ASSY
2 3-041-365-01 SPRING, LINK
3 3-044-751-01 FOOT (MAIN)
4 3-044-750-01 RUBBER
5 X-3378-541-1 LINK ASSY, COVER
6 3-041-339-01 COVER (B)
7 3-041-338-01 COVER (A)
8 3-041-337-01 WINDOW, ORNAMENT
9 3-041-346-01 BUTTON, POWER
10 3-041-350-01 BUTTON (A)
11 3-044-293-01 BUTTON, VOLUME
12 3-041-349-01 BUTTON (EJECT), CD
* 13 1-677-031-11 FRONT BOARD
14 3-041-335-01 CABINET (REAR)
15 1-792-256-11 CABLE, FFC (6P)
16 1-792-226-11 CABLE, FFC (15P)
* 17 A-3322-706-A TUNER BOARD, COMPLETE
* 18 1-677-028-11 LINE BOARD
* 19 1-677-029-11 H/P BOARD
20 3-041-340-01 PLATE, CD
21 3-047-242-01 PLATE SHIELD (TU)
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
R
R
R
R
• Abbreviation
IT : Italian model
CET : East European & CIS model
SP : Singapore model
• Accessories and packing materials and
hardware (# mark) list are given in
the last of this parts list.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
3
15
16
17
21
18
19
20
#1
#1
#1
FLM-DR45-149
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
#2
#2
#1
#1
#3
#3
#3
A
A
not supplied
To Next Page
