1-26
104
A [/1 (on/standby) button (21)
B Front panel display (32, 105)
C Disc tray (25)
D TIMER REC indicator (39)
SYNCHRO REC indicator (46)
E A (open/close) button (25)
F HDD button/indicator (27)
DVD button/indicator (25)
G (remote sensor) (18)
H H (play) button (49)
X (pause) button (51)
x (stop) button (49)
I z REC button (27)
X REC PAUSE button (27)
x REC STOP button (27)
J DV IN jack (75)
K ONE-TOUCH DUB button (77)
L SYSTEM MENU button (78, 80)
M TOOLS button (25)
N </M/m/,/ENTER button (21)
O O RETURN button (44)
P ./> (previous/next) buttons (51)
Q PROGRAM +/– buttons (27)
The + button has a tactile dot
*
.
R INPUT SELECT button (47, 75)
S REC MODE button (37)
T LINE 2 IN (S VIDEO/VIDEO/AUDIO L
(MONO)/R) jacks (22)
* Use the tactile dot as a reference when operating the
recorder.

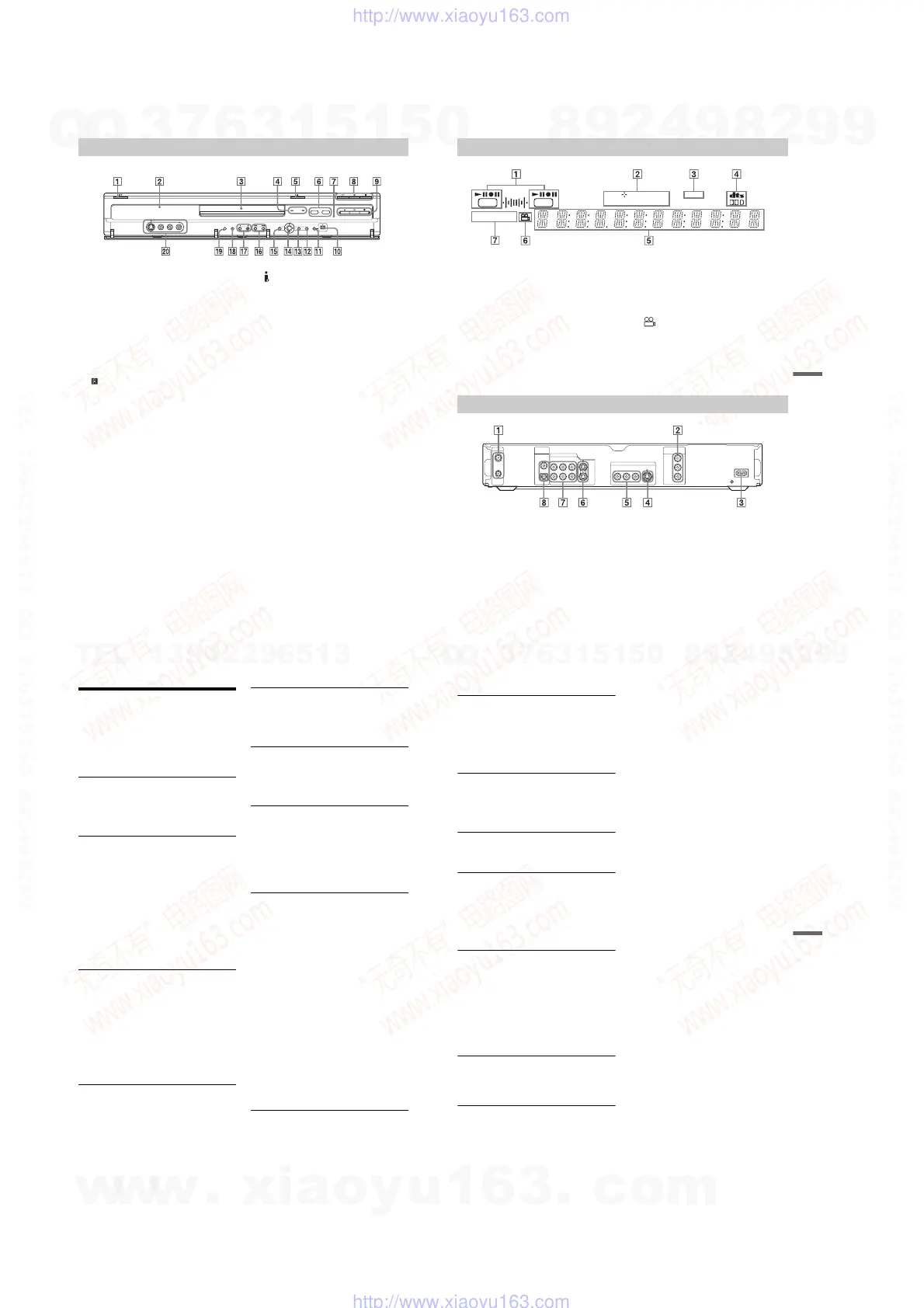

Front panel
105
Additional Information
A HDD/DVD indicators
Displays the selected media and the
playing/recording/dubbing status.
B Disc type*/recording format
C NICAM indicator (38)
D Audio signal indicators (31)
E Displays the following (32):
• Playing time/remaining time
• Current title/chapter/track/index number
• Recording time/recording mode
• Clock
• Programme position
F (angle) indicator (51)
G PROGRESSIVE indicator (15)
* Displays DATA CDs as “CD.”
z Hint
You can turn off the front panel display when the recorder is turned off by setting “Dimmer” to “Power Save” in
“Options” setup (page 91).
A AERIAL IN/OUT jacks (13)
B COMPONENT VIDEO OUT (Y, P
B/CB,
P
R/CR) jacks (14)
C AC IN terminal (17)
D LINE OUT (S VIDEO) jack (14)
E LINE OUT (R-AUDIO-L/VIDEO) jacks
(14, 16)
F LINE IN 1/3 (S VIDEO) jack (22)
G LINE IN 1/3 (R-AUDIO-L/VIDEO) jacks
(22)
H DIGITAL OUT (COAXIAL/OPTICAL)
jacks (16)
Front panel display
HDD
DVD
DVD RW VCD
NICAM
VR
PROGRESSIVE
Rear panel
AERIAL
~
AC IN
COMPONENT
VIDEO OUT
P
B
/C
B
Y
P
R
/C
R
LINE OUT
VIDEO S VIDEOR-AUDIO-L
IN
OUT
DIGITAL
OUT
COAXIAL
OPTICAL
PCM/DTS/MPEG/
DOLBY DIGITAL
LINE IN
1
3
VIDEO
S VIDEO
R-AUDIO-L
106
Glossary
Chapter (page 56)
Sections of a picture or a music feature that are
smaller than titles. A title is composed of several
chapters. Depending on the disc, no chapters may
be recorded.
Copy protection signals (page 38)
Copy restriction set by copyright owners, etc.
These signals are included in some software or TV
programmes and restrict recording on this
recorder.
Dolby Digital (page 88)
Digital audio compression technology developed
by Dolby Laboratories. This technology conforms
to multi-channel surround sound. The rear channel
is stereo and there is a discrete subwoofer channel
in this format. Dolby Digital provides the same
discrete channels of high quality digital audio
found in “Dolby Digital” theater surround sound
systems.
Good channel separation is realized because all of
the channel data is recorded discretely, and little
deterioration occurs because all channel data
processing is digital.
DTS (page 88)
Digital audio compression technology by Digital
Theater Systems, Inc. This technology conforms
to multi-channel surround sound. The rear channel
is stereo and there is a discrete subwoofer channel
in this format. DTS provides the same discrete
channels of high quality digital audio.
Good channel separation is realized because all of
the channel data is recorded discretely, and little
deterioration occurs because all channel data
processing is digital.
DVD+R (page 8)
A DVD+R (read “plus R”) is a recordable disc that
is the same size as a DVD VIDEO. Contents can
be recorded only once to a DVD+R, and will have
the same format as a DVD VIDEO.
DVD+RW (page 8)
A DVD+RW (read “plus RW”) is a recordable and
rewritable disc. DVD+RWs use a recording
format that is comparable to the DVD VIDEO
format.
DVD-R (page 8)
A DVD-R is a recordable disc that is the same size
as a DVD VIDEO. Contents can be recorded only
once to a DVD-R, and will have the same format
as a DVD VIDEO.
DVD-RW (page 8)
A DVD-RW is a recordable and rewritable disc
that is the same size as a DVD VIDEO. The DVD-
RW has two different modes: VR mode and Video
mode. DVDs created in Video mode have the
same format as a DVD VIDEO, while discs
created in VR (Video Recording) mode allow the
contents to be programmed or edited.
DVD VIDEO (page 10)
A disc that contains up to eight hours of moving
pictures on a disc the same diameter as a CD.
The data capacity of a single-layer and single-
sided DVD is 4.7 GB (Giga Byte), which is 7
times that of a CD. The data capacity of a double-
layer and single-sided DVD is 8.5 GB, a single-
layer and double-sided DVD is 9.4 GB, and
double-layer and double-sided DVD is 17 GB.
The picture data uses the MPEG 2 format, which
is a worldwide standard of digital compression
technology. The picture data is compressed to
about 1/40 (average) of its original size. The DVD
also uses a variable rate coding technology that
changes the data to be allocated according to the
status of the picture. Audio information is
recorded in a multi-channel format, such as Dolby
Digital, allowing you to enjoy a more real audio
presence.
Furthermore, various advanced functions such as
the multi-angle, multilingual, and Parental
Control functions are provided on the DVD.
Hard disk drive (page 2)
A hard disk drive is a whole mechanical system
that consists of disks and drive. Disks are flat,
circular, rigid plates coated with a thin magnetic
media. Magnetic heads record data on the rapidly
spinning disks, and this enables the speedy and
efficient reading and writing of data.
107
Additional Information
Interlace format (page 15)
Interlace format shows every other line of an
image as a single “field” and is the standard
method for displaying images on television. The
even number field shows the even numbered lines
of an image, and the odd numbered field shows the
odd numbered lines of an image.
MPEG Audio (page 88)
International standard coding system used to
compress audio digital signals authorized by ISO/
IEC. MPEG 2, used on DVDs, conforms to up to
7.1-channel surround.
Original (page 62)
Titles actually recorded on a HDD/DVD-RW (VR
mode). Erasing original titles frees up disc space.
Playlist (page 62)
Playback information created from the actual
recordings on a HDD/DVD-RW (VR mode). A
Playlist leaves the original titles as they are, and
contains only the information needed to control
playback. A Playlist title takes up very little disc
space.
Progressive format (page 15)
Compared to the Interlace format that alternately
shows every other line of an image (field) to create
one frame, the Progressive format shows the entire
image at once as a single frame. This means that
while the Interlace format can show 25-30 frames/
50-60 fields in one second, the Progressive format
can show 50/60 frames in one second. The overall
picture quality increases and still images, text, and
horizontal lines appear sharper.
Title (page 56)
The longest section of a picture or music feature
on a DVD, movie, etc., in video software, or the
entire album in audio software.
Track (page 56)
Sections of a music feature on a CD/VIDEO CD
(the length of a song).
