Sony RDR-GX310 - 2 Disassembly; Upper Case; Tray Cover Assembly

2-2

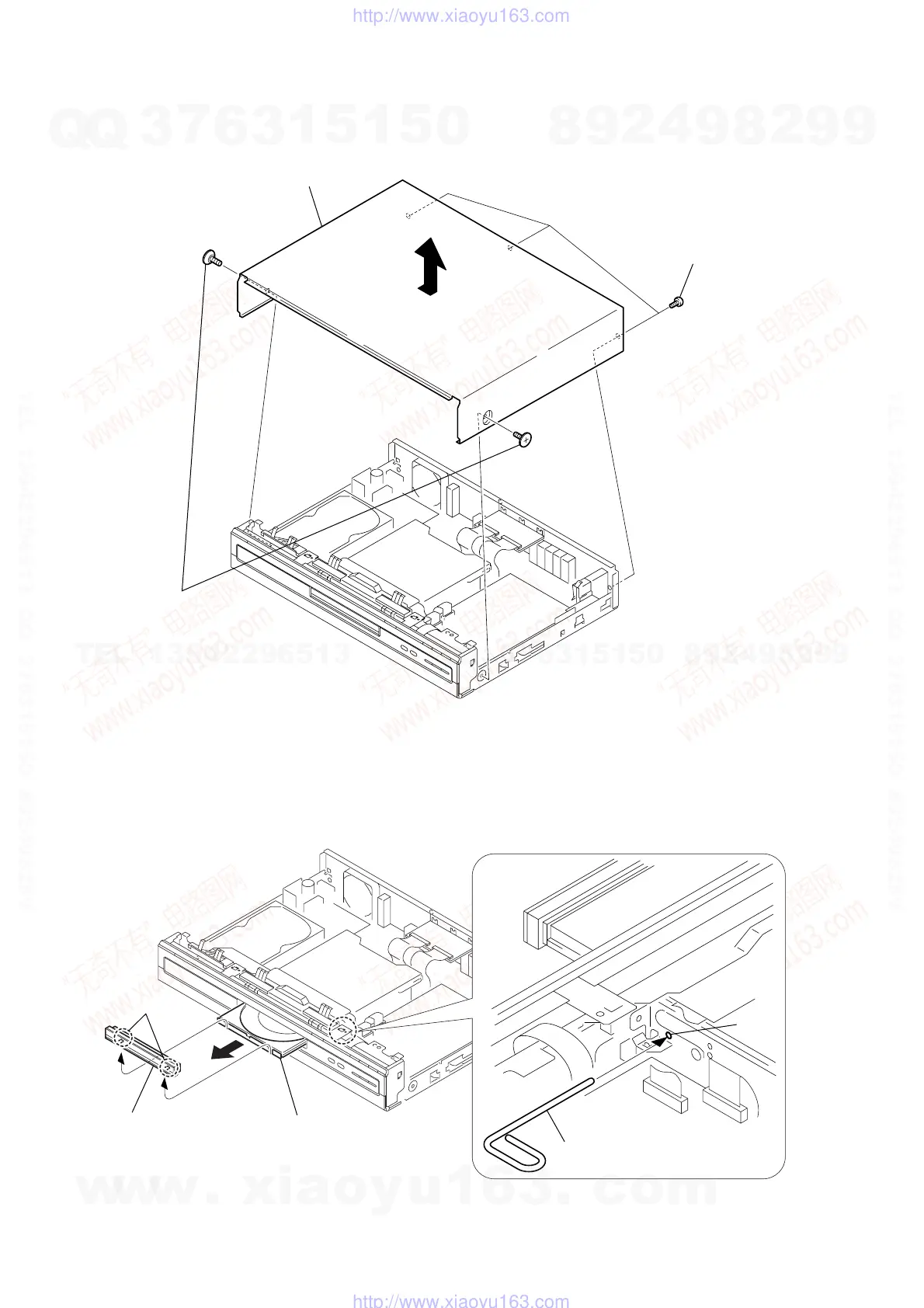

2-1. UPPER CASE
2-2. TRAY COVER ASSEMBLY
NOTE: Follow the disassembly procedure in the numerical order given.
1 Two tapping screws
3 Upper case
2 Three tapping screw
s
(+BV 3 x 10)
4 Tray cover assembly
3 Two claws
2 Open the tray
1 The stiff wire
Hole
