8-3

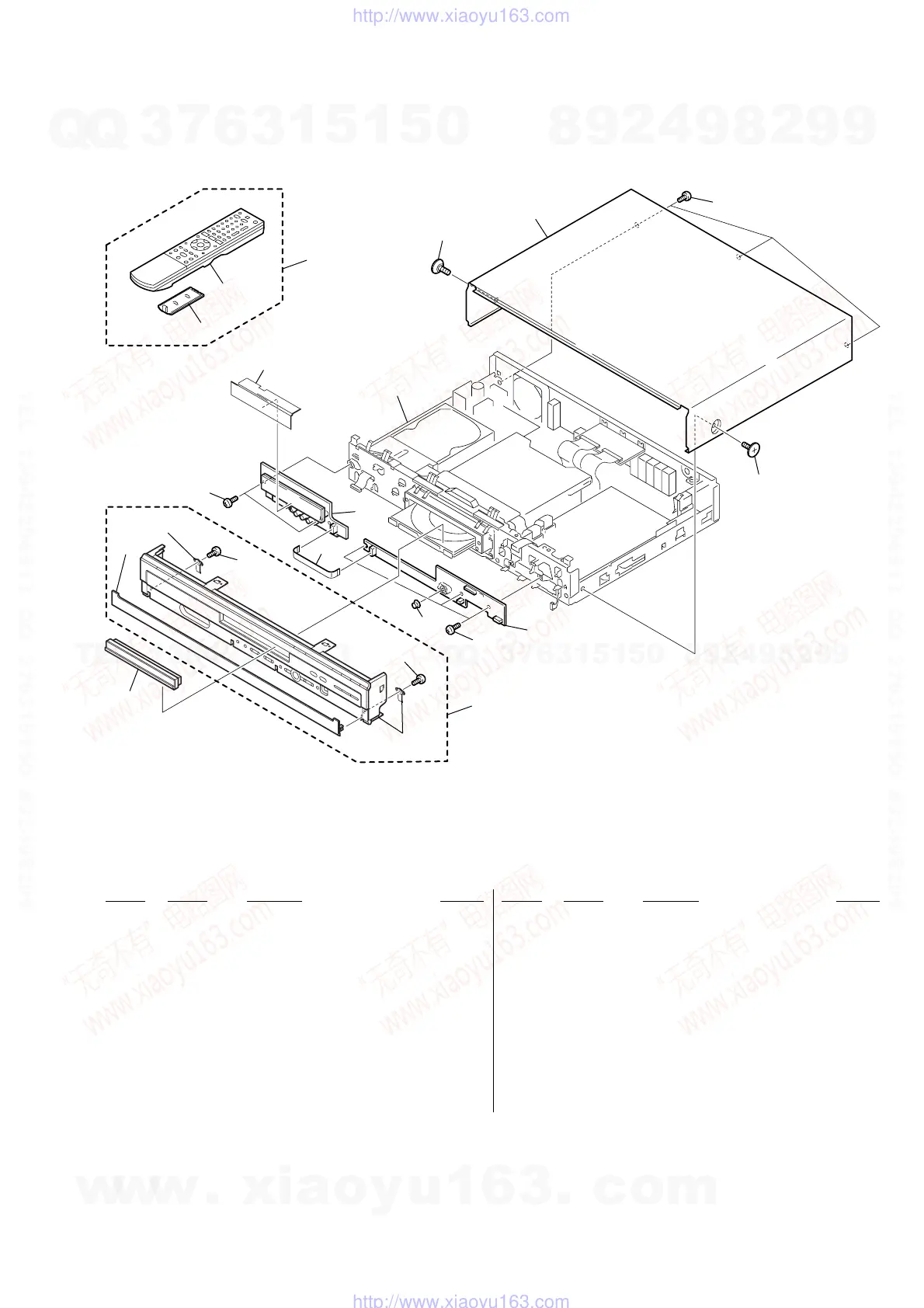

8-1-3. OVERALL SECTION (HX710/HX910)
not
supplied
not
supplied
not
supplied
101
104
103
107
106
109
108
110
114
115
111
112
111
113
106
103
102
105
Chassis section
(See page 8-4)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 X-2050-530-1 COVER ASSY (1380), TRAY
102 X-2059-333-1 PANEL ASSY, FRONT (1330) (HX710)
102 X-2059-335-1 PANEL ASSY, FRONT (1330) (HX910: E)
102 X-2059-337-1 PANEL ASSY, FRONT (1330) (HX910: TW)
102 X-2059-339-1 PANEL ASSY, FRONT (1330) (HX910: RU)
102 X-2059-341-1 PANEL ASSY, FRONT (1330) (HX910: SP)
103 7-685-533-14 SCREW +BTP 2.6X6 TYPE2 N-S
104 2-515-217-21 DOOR (3G), SLIDE (HX710/HX910: RU, SP)
104 2-515-217-41 DOOR (3G), SLIDE (HX910: E, TW)
* 105 A-1111-959-A FR-232 (JD) COMPL
106 3-077-331-01 +BV3 (3-CR)
107 2-159-703-12 CURSOR
108 1-829-813-11 CABLE, FLEXIBLE FLAT (FFS-001)
* 109 A-1122-393-A FL-144 (SU) COMPL
110 2-189-250-11 COVER, FL
111 3-070-883-41 SCREW, TAPPING
112 A-1121-378-A CASE BLOCK ASSY (SERVICE USE)
113 3-077-331-31 +BV3 (3-CR)
114 1-479-289-11 REMOTE COMMANDER (RMT-D217P)
(HX710/HX910: RU, SP)
114 1-479-301-11 REMOTE COMMANDER (RMT-D217A)
(HX910: E, TW)
115 3-071-119-91 COVER, BATTERY
