Sony SLV-D360P - Exploded Views; Cabinet Assembly

8-2
10
7
101
157
not supplied
not supplied
153
not supplied
602
157
155
21
22
5
not supplied
not supplied
1
2
200
3
not supplied
UT01
6
4
not supplied
702
( )
Except for Assy Cylinder,
H/Cleaner Lever Assy
SLV-D560P
21
22
1
2
3
4
SLV-D360P
8-1-1 Cabinet Assembly

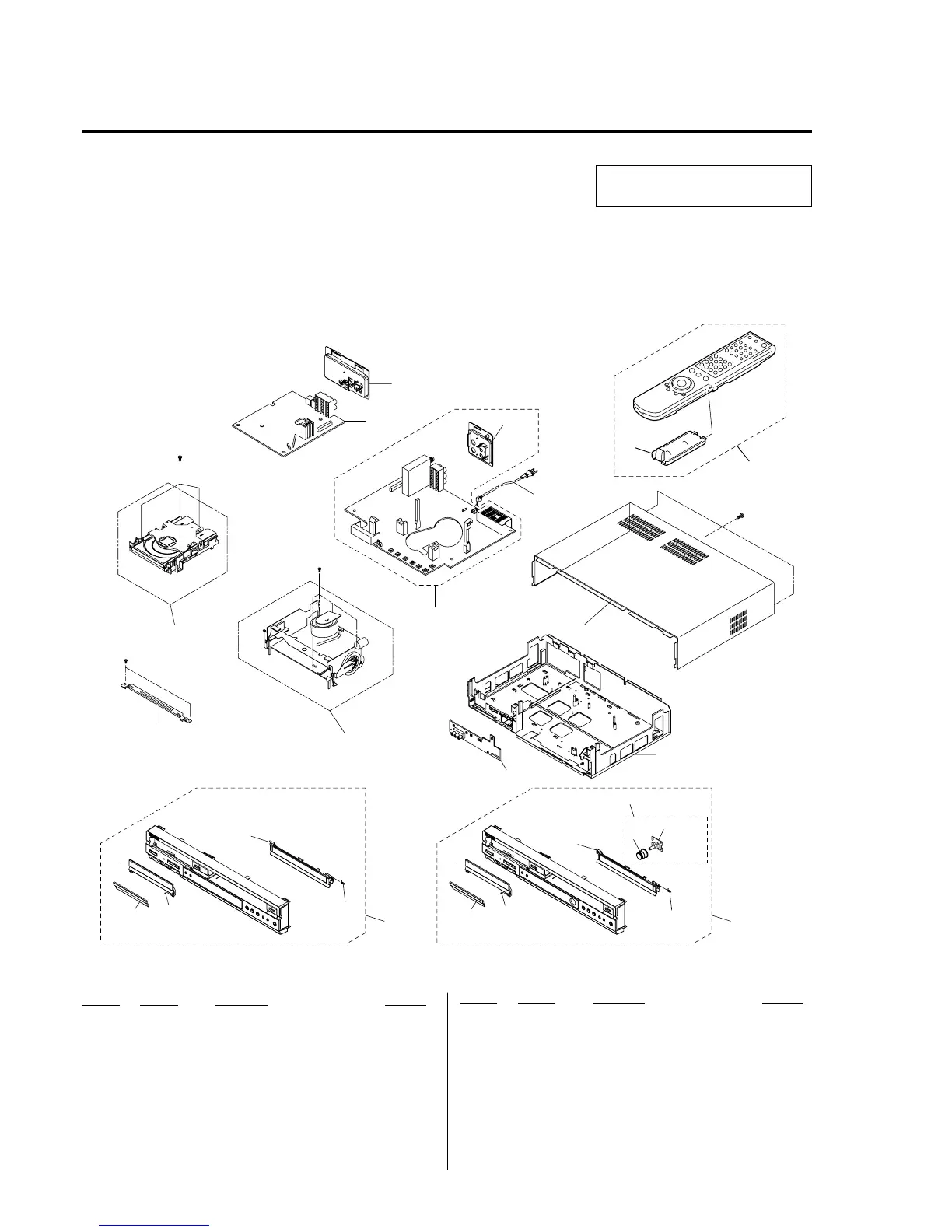

8-1 EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
1 9-885-079-65 ASSY PANEL FRONT COMBO D360P (D360P)
1 9-885-079-66 ASSY PANEL FRONT COMBO D560P (D560P)
2 9-885-079-59 DOOR TRAY
3 9-885-061-27 DOOR SPRING
4 9-885-079-60 DOOR PANEL
5 1-786-352-11 SW-DIAL TIMER
6 9-885-080-39 BATTERY COVER (for RMT-V501E/V501F)
7 9-885-079-64 ASSY DVD DECK
10 9-885-079-49 ASSY DECK
21 9-885-079-58 DOOR CASSETTE
22 9-885-037-13 SPRING ETC MASK
101 9-885-061-23 CASE (COMBO UC), UPPER
153 3-075-262-01 SCREW BH 4X12
155 3-078-566-01 SCREW TAP M3 L10 BLK
157 9-885-069-85 SCREW-TAPTITE ZPC (YEL) SWR
0 200 9-885-061-02 POWER CORD EP2
602 9-885-079-61 PWB MAIN ASSY
702 9-885-079-62 DIAL TIMER ASSY (D560P)
UT01 9-885-079-55 COMMANDER (RMT-V501E), (TYPE) (D360P)
UT01 9-885-079-56 COMMANDER (RMT-V501F), (TYPE) (D560P)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
