Sony SLV-D360P - Lever Unit Pinch Assy, Plate Joint; Spring Pinch Drive Removal; Lever #9 Guide Assy Removal

2-16
"A"
"B"
1 SPRING #9 GUIDE
2 LEVER #9 GUIDE ASS`Y
3 SPRING PINCH DRIVE
1 LEVER UNIT PINCH ASS`Y
2 PLATE JOINT
2-4-19 Lever Unit Pinch Ass’y, Plate Joint,
Spring Pinch Drive Removal
1) Lift the Unit Pinch Ass’y 1.
2) Remove the Plate Joint 2 from Lever Pinch Drive.
3) Remove the Spring Pinch Drive 3.
Note:
1) Take extreme care not to touch the grease on the Roller Pinch.
2) When reinstalling, be sure to apply grease on the post pinch
roller.

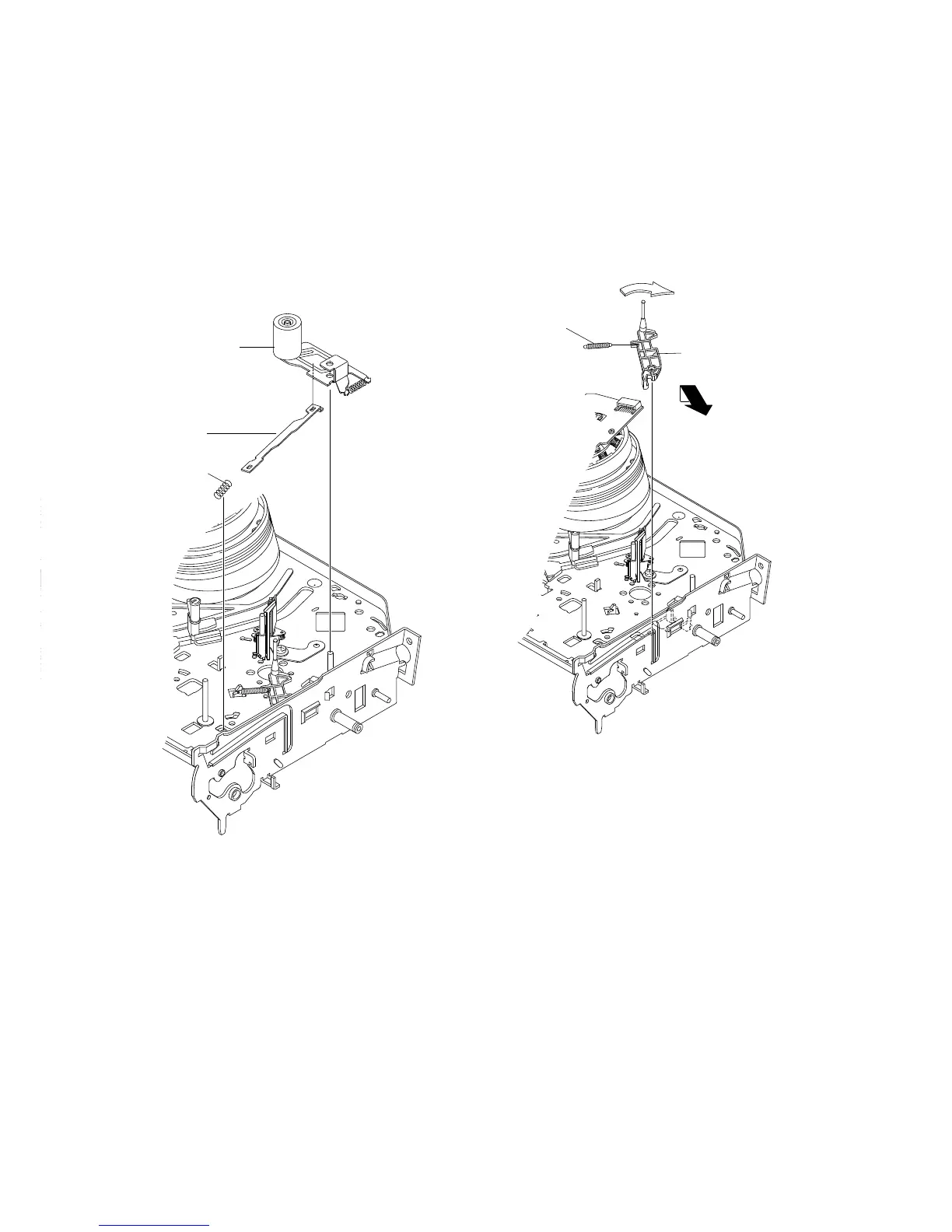

Fig. 2-32 Lever Unit Pinch Ass’y, Plate Joint,
Spring Pinch Drive Removal
2-4-20 Lever #9 Guide Ass’y Removal
1) Remove the Spring #9 Guide 1.
2) Lift the Spring #9 Guide Ass’y 2 in the direction of arrow “A”.
Note:
1) Take extreme care not to get grease on the tape Guide Post.
2) After reinstalling, check the bottom side of the Post #9 Guide to
the top side of Main Base.
Fig. 2-33 Lever #9 Guide Ass’y Removal
