Sony SLV-D360P - Bottom View

2-6
2-3-2 Bottom View
1
23
4
5
6
7
8
9
0

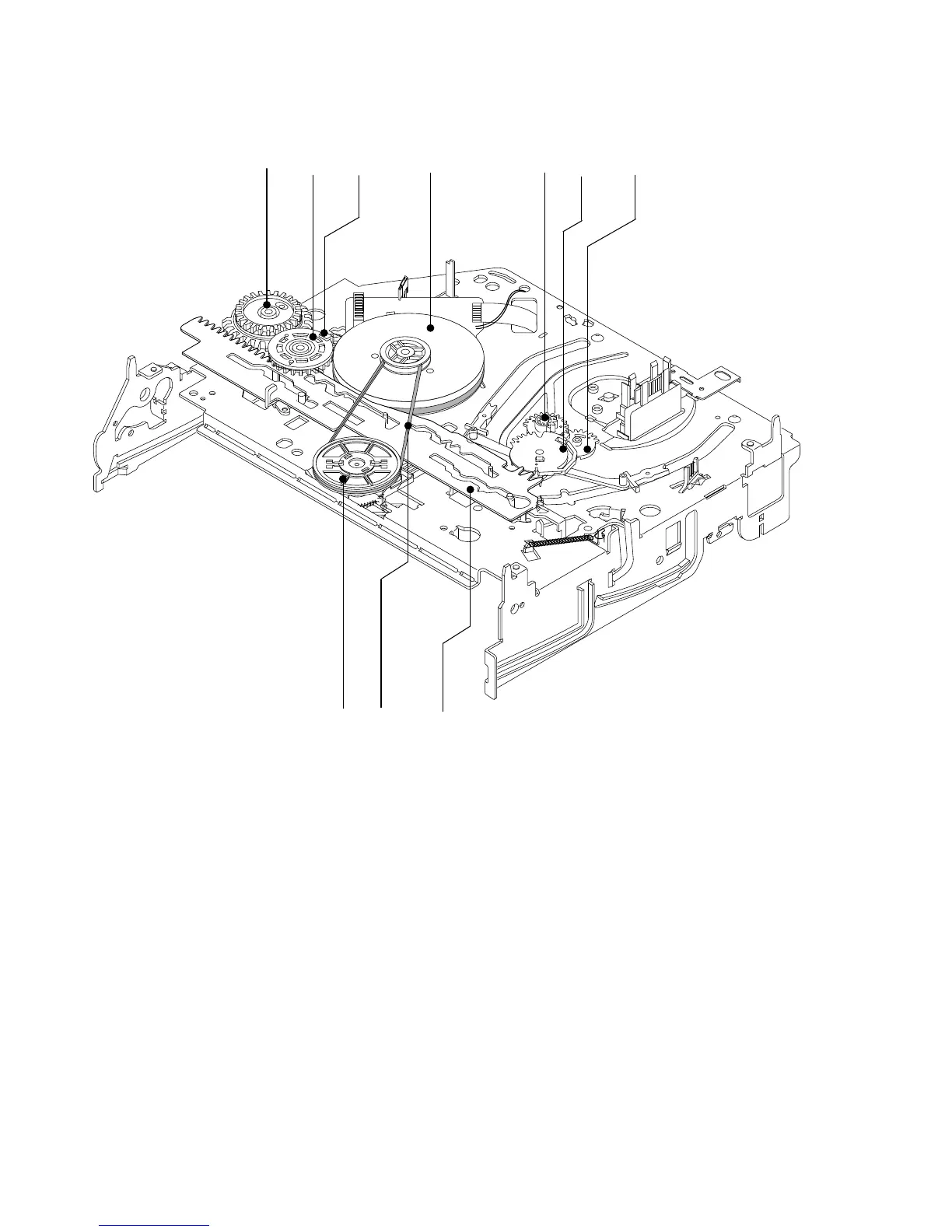

Fig. 2-10 Bottom Parts Location
1 GEAR JOINT 1
2 GEAR JOINT 2
3 BRAKET GEAR
4 MOTOR CAPSTAN ASS’Y
5 LEVER T LOAD ASS’Y
6 GEAR LOADING DRIVE
7 LEVER S LOAD ASS’Y
8 HOLDER CLUTCH ASS’Y
9 BELT PULLEY
0 SLIDER CAM
