— 9 —
5 PICK-UP DISASSEMBLY AND REASSEMBLY
5-1 Disassembly
1) Remove the power cord.
2) Disassemble the Deck-Assy.
3) Make solder land 2 points short on Pick-up.
(See Fig. 4)
4) Disassembly the Pick-up.
5-2 Assembly
1) Replace the Pick-up.
2) Remove the soldering 2 points on Pick-up.
3) Reassemble the Deck-Assy.
Note: If the assembly and disassembly are not done in correct sequence, the Pick-up may be damaged.

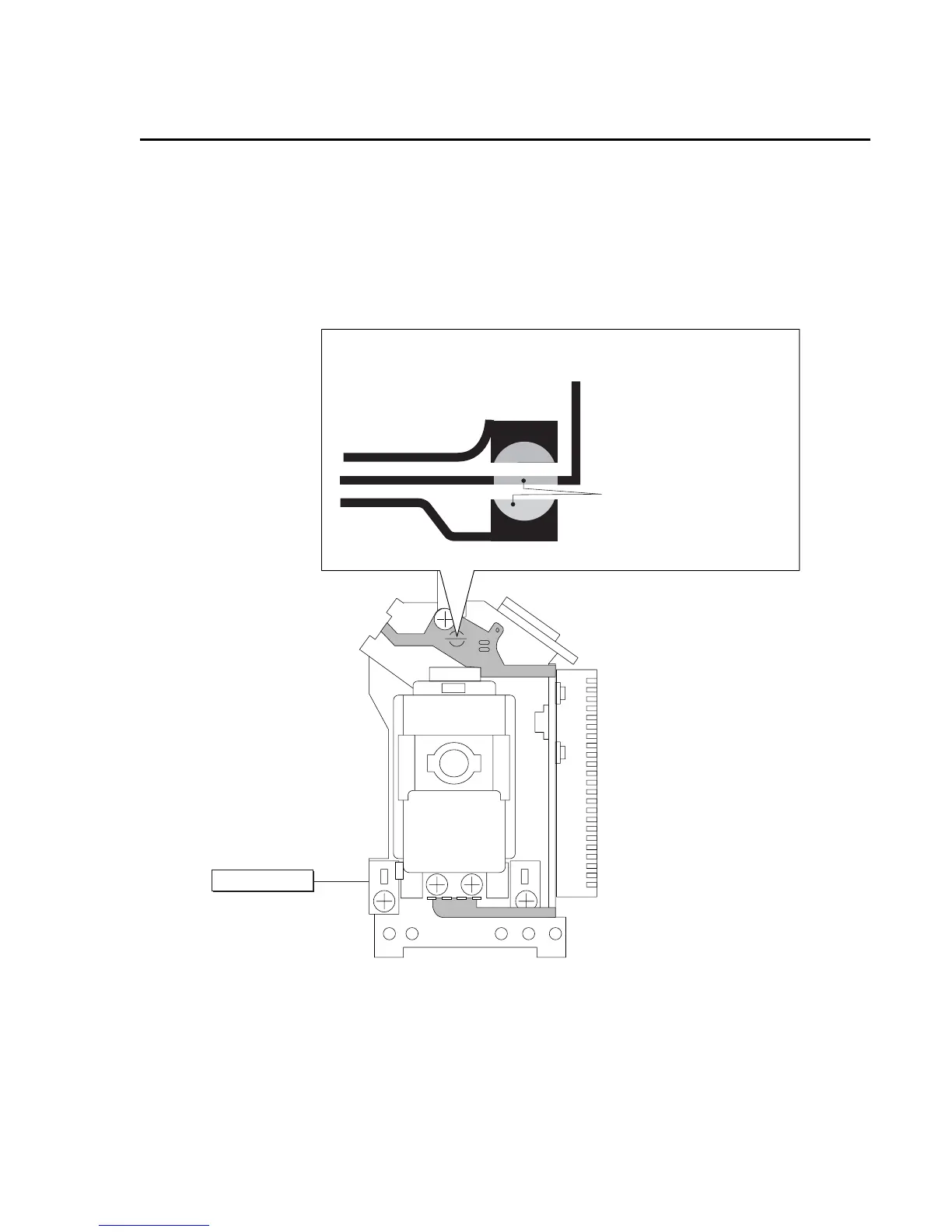

PICK-UP ASS'Y
SOLDER LAND 2 POINTS SHORT
Fig. 4
