Sony SLV-D360P - Chassis Removal; VCR Main PCB Removal

2-2

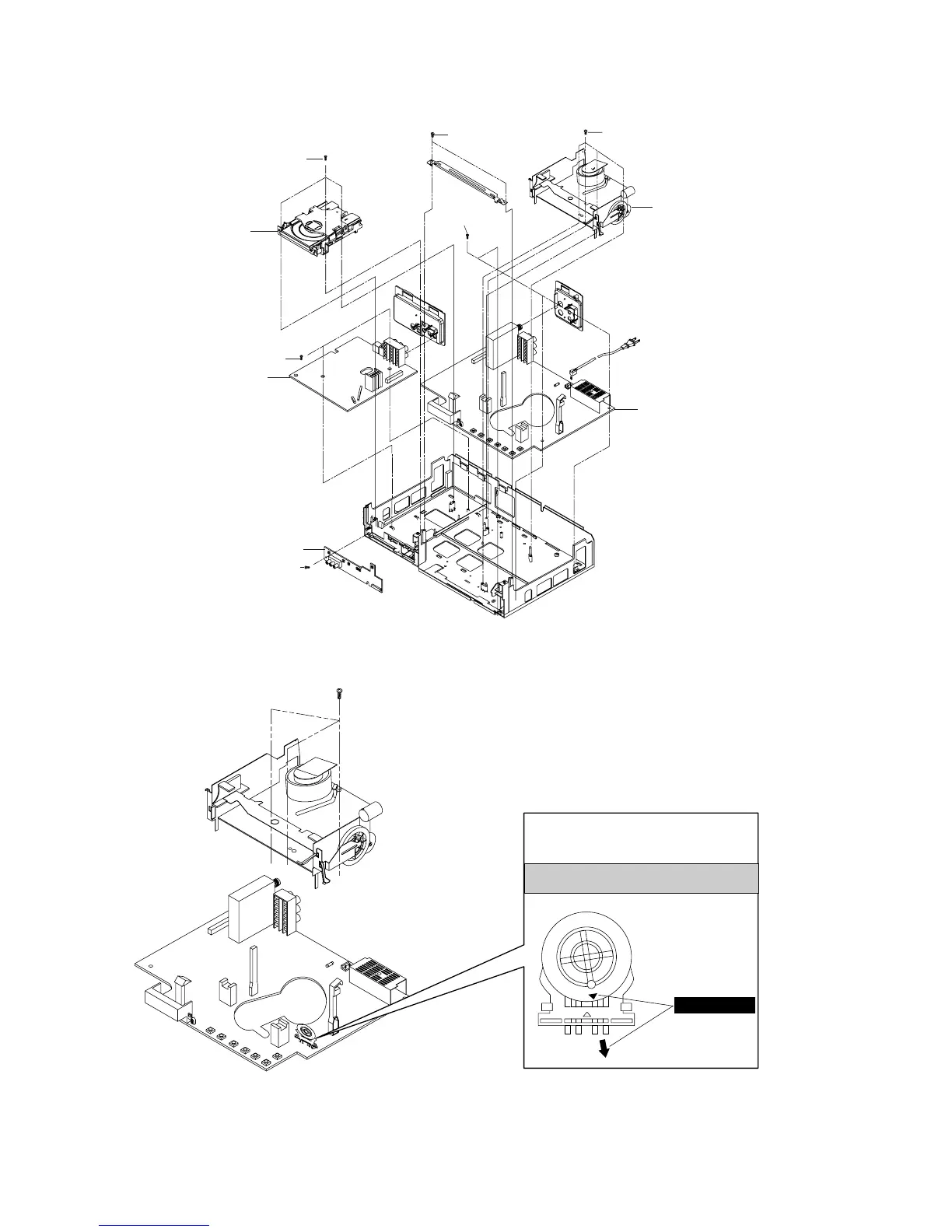

Fig. 2-5 Chassis Removal
2-1-5 Chassis Removal
2-1-6 VCR Main PCB Removal
Fig. 2-6 VCR Main PCB Removal
1 REMOVE 2 SCREWS
2 REMOVE 4 SCREWS
VCR MAIN PCB
DVD MAIN PCB
FUNCTION TIMER PCB
VCR DECK
3 REMOVE 3 SCREWS
5 REMOVE 3 SCREWS
4 REMOVE 2 SCREWS
6 REMOVE 1 SCREW
DVD DECK
1 REMOVE 3 SCREWS
MODE SWITCH
When installing the ass'y full deck on the Main PCB,
be sure to align the assembly point of mode switch.
ASSEMBLY POINT
