Sony SLV-SE710 - Page 44

4-8
REC : 500 mVp-p (H)
PB : 380 mVp-p (H)

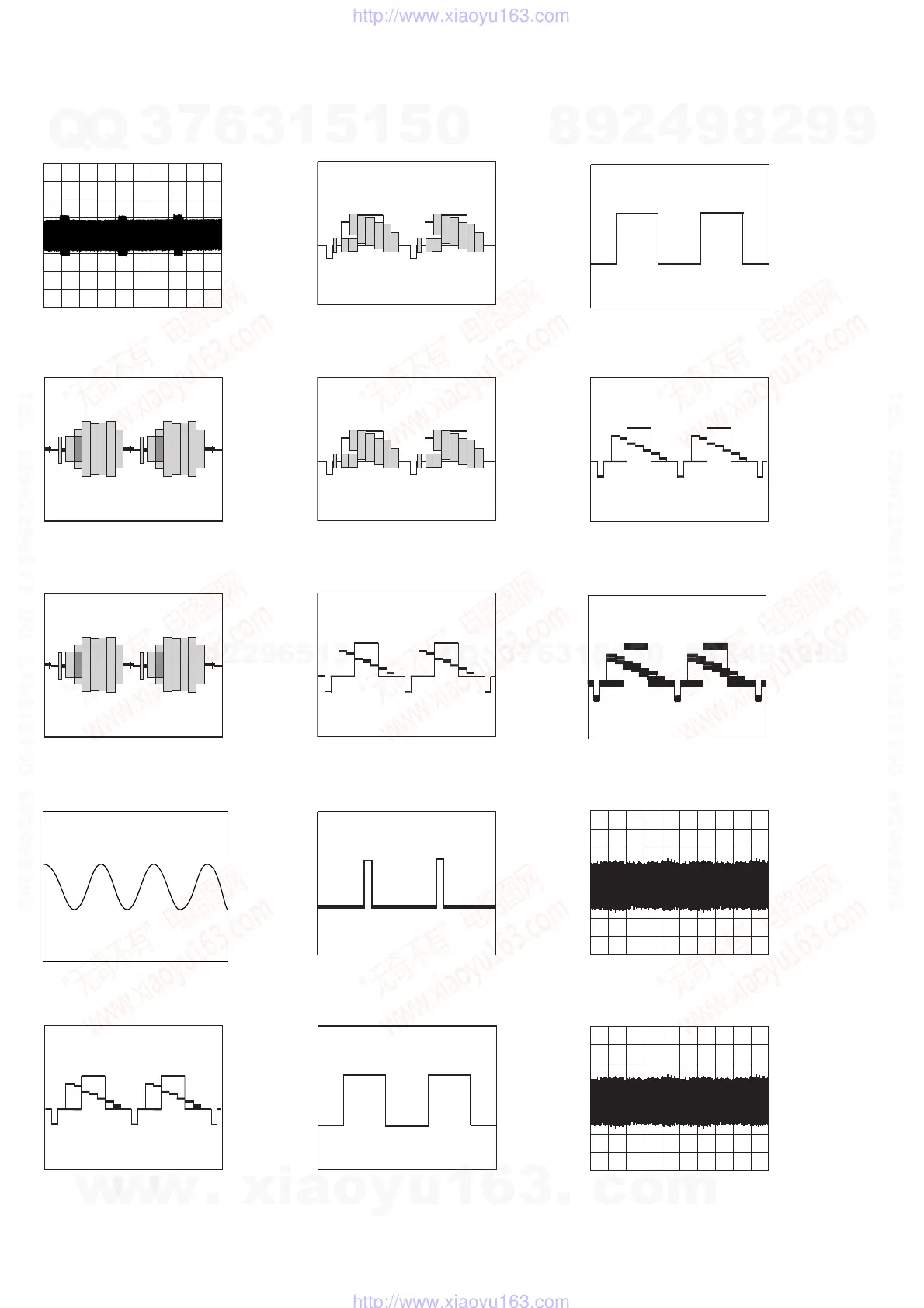

• Waveforms
1 IC201 og REC
3.8 Vp-p (H)
2 IC201 wa REC
420 mVp-p (H)
3 IC201 wg PB
460 mVp-p (H)
4 IC201 wj REC/PB
480 mVp-p (4.433619 MHz)
5 IC201 rg REC/PB
REC : 360 mVp-p (H)
PB : 450 mVp-p (H)
6 IC201 ts REC/PB
1 Vp-p (H)
7 IC201 yg REC
2 Vp-p (H)
8 IC201 yg PB
2.1 Vp-p (H)
9 IC201 yk REC/PB
4.5 Vp-p (H)
0 IC201 us REC/PB
5 Vp-p (2 V)
qa IC201 ud PB
1.7 Vp-p (2 V)
qs IC201 uh REC
560 mVp-p (H)
620 mVp-p (H)
qd IC201 uh PB
qf IC201 ia REC/PB
qg IC201 is REC/PB
REC : 500 mVp-p (H)
PB : 380 mVp-p (H)
