1-1
SECTION 1
GENERAL
SLV-SE610/SE710/SE810/SX710/SX717/SX810/X9
This section is extracted from
instruction manual. (3-065-678-11)
4

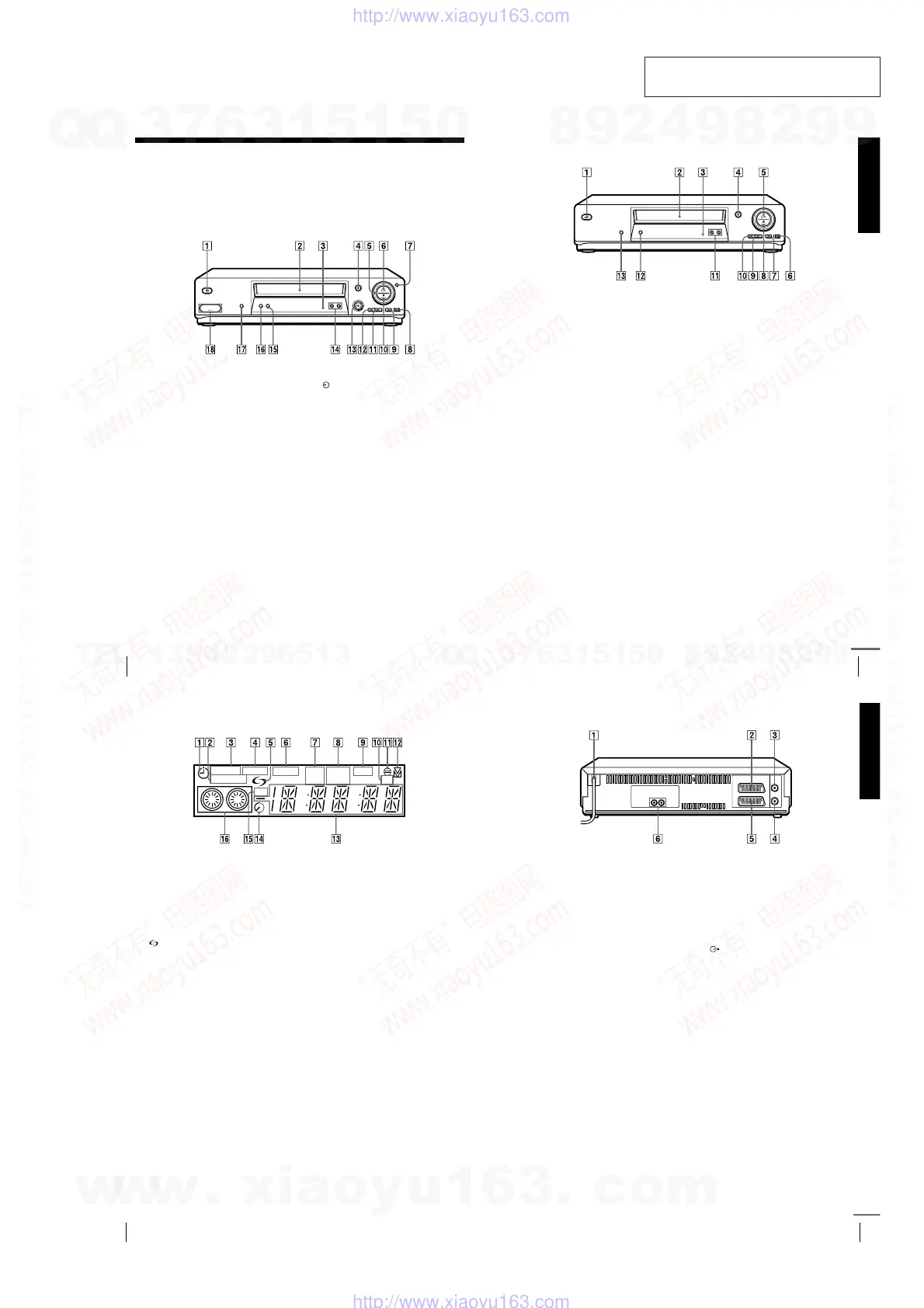

Index to parts and controls
Getting Started
Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.
Front panel
SLV-SE810N/K
A ?
/
1
(on/standby) switch (19)
B
Tape compartment
C
Remote sensor (11)
D A
(eject) button (44)
E
Shuttle ring (63)
F H
(play) button (44) (63)
G
JOG button (64)
H z
REC (record) button (46) (65)
(89)
I X
(pause) button (44) (89)
J x
(stop) button (44) (89)
K M
(fast-forward) button (44) (63)
L m
(rewind) button (44) (63)
M
DIAL TIMER (50)
N
PROGRAM +/– buttons (22) (64)
(81)
O
AUDIO DUB button (90)
P
AUTO SET UP/
RF (Radio Frequency) CHANNEL
button (19) (22)
Q
SYNCHRO REC (Synchronized
Recording) button (67)
R t
LINE-2 L (left)
o
R (right)
jacks (covered) (87) (88)
How to open the jack cover
1 Press the bottom of the cover.
2 Hook your finger on the top edge of the
cover and pull it open.
Getting Started
5
Index to parts and controls
SLV-SE610N/K, SE710N/K, SX710N/K
A ?
/
1
(on/standby) switch (19)
B
Tape compartment
C
Remote sensor (11)
D A
(eject) button (44)
E H
(play) button (44) (63)
F z
REC (record) button (46) (65)
(89)
G X
(pause) button (44) (89)
H x
(stop) button (44) (89)
* not available on SLV-SE610N/K
I M
(fast-forward) button (44) (63)
J m
(rewind) button (44) (63)
K
PROGRAM +/– buttons (22) (64)
(81)
L
AUTO SET UP/
RF (Radio Frequency) CHANNEL
button (19) (22)
M
SYNCHRO REC (Synchronized
Recording) button* (67)
continued
6
Index to parts and controls
Display window
A
Timer indicator (52) (57) (60)
B
SYNCHRO indicator*
1
(67)
C
STEREO indicator (70)
D
NICAM indicator*
2
(70)
E
(smartlink) indicator*
1
(17)
F
VIDEO indicator (16) (47)
G
VPS (Video Programme System)/
PDC (Programme Delivery Control)
indicator*
1
(57)
H
Tape speed indicators (46)
I
OPC (Optimum Picture Control)
indicator (82)
J
TV indicator*
1
(48)
K
Audio dubbing indicator*
3
(90)
L
Tracking indicator (81)
M
Time counter/clock/line/programme
position indicator (44) (46) (89)
N
Remaining time indicator (47)
O
RR (Reality Regenerator) indicator
(81)
P
Tape/recording indicator (46)
*
1
not available on SLV-SE610N/K
*
2
SLV-SE610N, SE710N, SX710N, and SE810N only
*
3
SLV-SE810N/K only
STEREO NICAM
RR
SYNCHRO
SPLP OPCVIDEO VPS
PDC EP TV
Getting Started
7
Index to parts and controls
Rear panel
A
Mains lead (15) (16)
B
DECODER/
t
LINE-2 IN
DECODEUR/
t
ENTREE LIGNE-
2 connector*
1
(18) (39) (66) (88)
DECODER/
t
LINE-3 IN
DECODEUR/
t
ENTREE LIGNE-
3 connector*
2
(18) (39) (66) (88)
C
AERIAL IN
ANTENNE ENTREE connector (15)
(16)
*
1
SLV-SE710N/K and SX710N/K only
*
2
SLV-SE810N/K only
*
3
not available on SLV-SE610N/K
D
AERIAL OUT
ANTENNE SORTIE connector (15)
(16)
E i
LINE-1 (TV)
i
LIGNE-1 (TV) connector (16)
(39)
F
(audio out) R/D (right) L/G (left)
jacks*
3
(18)
continued
