Sony STR-DE435 - Printed Wiring Board - Input Section

STR-DE435/DE535/SE491/V424/V525
12
A
B
C
D
E
F
G
H
I
345678910111213

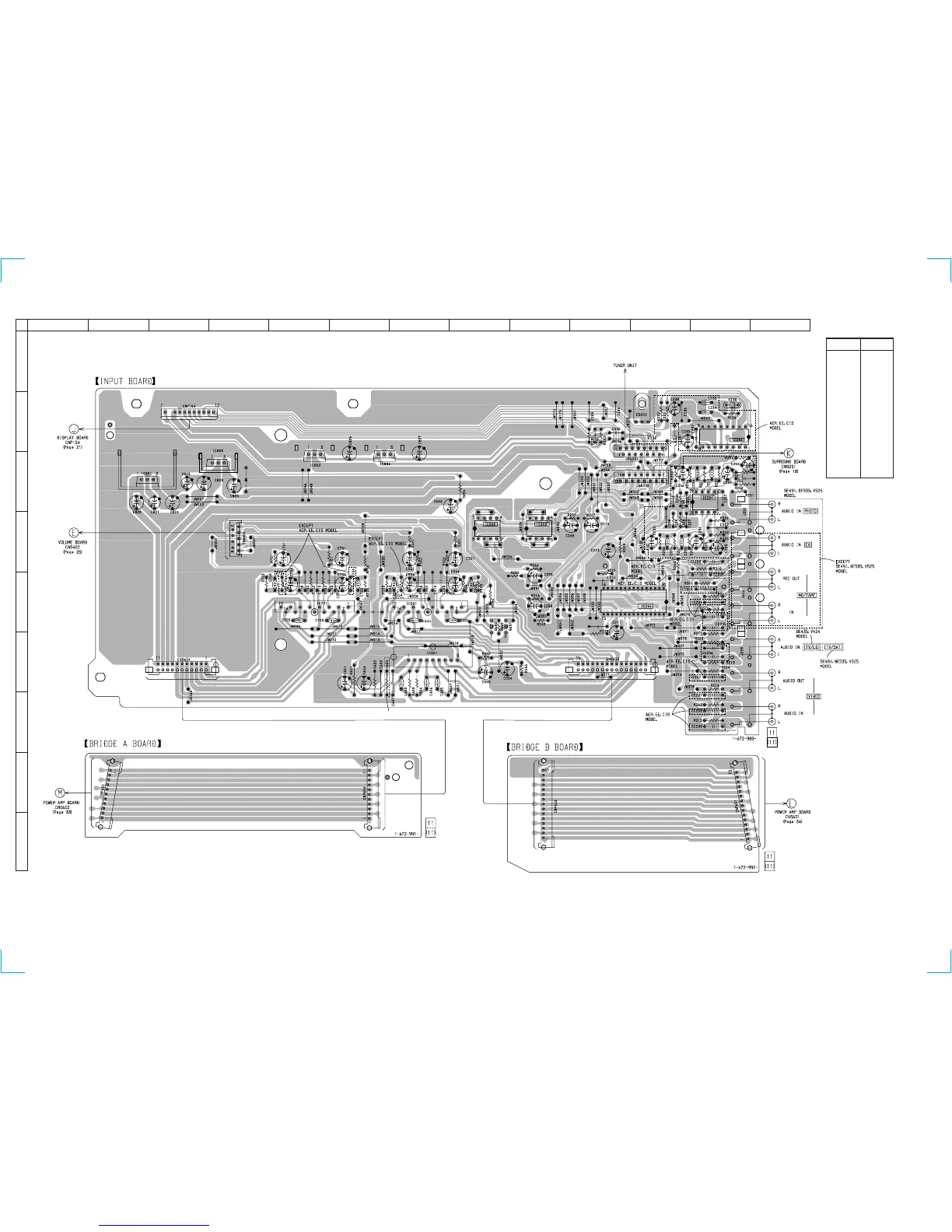

3-3. PRINTED WIRING BOARD — INPUT SECTION —
— 13 — — 14 —
AEP,EE,CIS MODEL
Ref. No. Location
IC201 C-12
IC202 D-9
IC203 D-8
IC204 E-11
IC230 B-12
IC501 E-7
IC601 F-7
IC701 E-5
IC801 C-2
IC802 C-5
IC803 C-4
IC804 C-6
Q691 E-8
Q692 E-8
• Semiconductor
Location
16
• Refer to page 7 for Circuit Boards Location.
