Sony STR-DE435 - Printed Wiring Board - Surround Section

STR-DE435/DE535/SE491/V424/V525

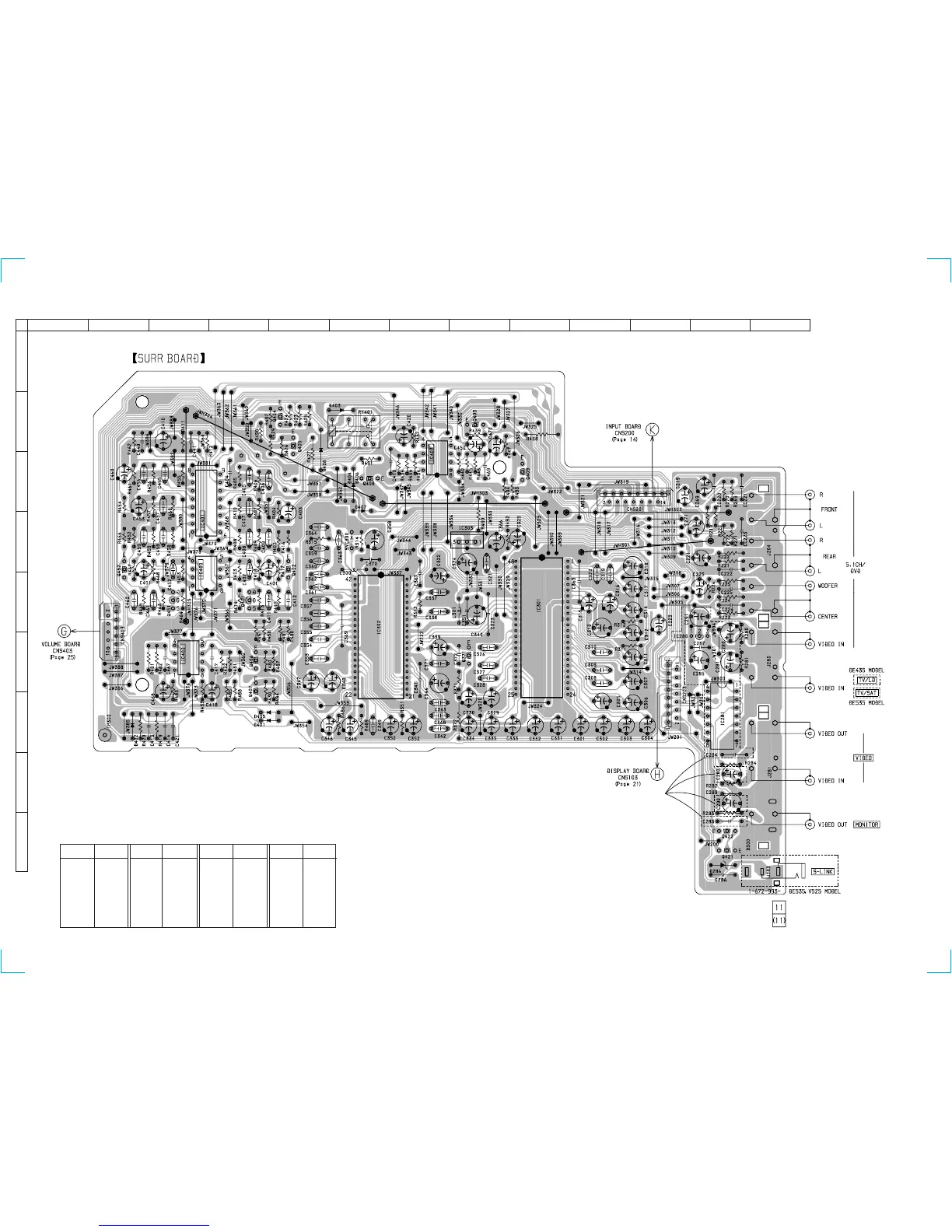

3-5. PRINTED WIRING BOARD — SURROUND SECTION —
— 17 — — 18 —
EXCEPT
SE491
MODEL
12
A
B
C
D
E
F
G
H
I
345678910111213
16
• Semiconductor Location
Ref. No. Location Ref. No. Location
D401 G-4
D402 G-2
D403 B-6
D404 C-6
D405 G-4
D406 C-6
D407 C-6
D408 C-5
Ref. No. Location
SVC300 D-6
IC280 E-12
IC281 G-12
IC301 E-9
IC302 E-6
IC303 D-8
IC400 D-3
IC401 D-3
IC402 F-3
IC403 B-7
Q401 E-4
Q402 D-5
Q403 B-8
Q404 B-5
Q405 B-5
Q406 F-4
Q407 F-4
Q408 C-6
Q409 C-9
Q451 E-3
Q452 D-2
Ref. No. Location
• Refer to page 7 for Circuit Boards Location.
