Sony STR-DE435 - Printed Wiring Board - Key Section

STR-DE435/DE535/SE491/V424/V525
12
A
B
C
D
E
F
G
H
I
J
34567891011121314

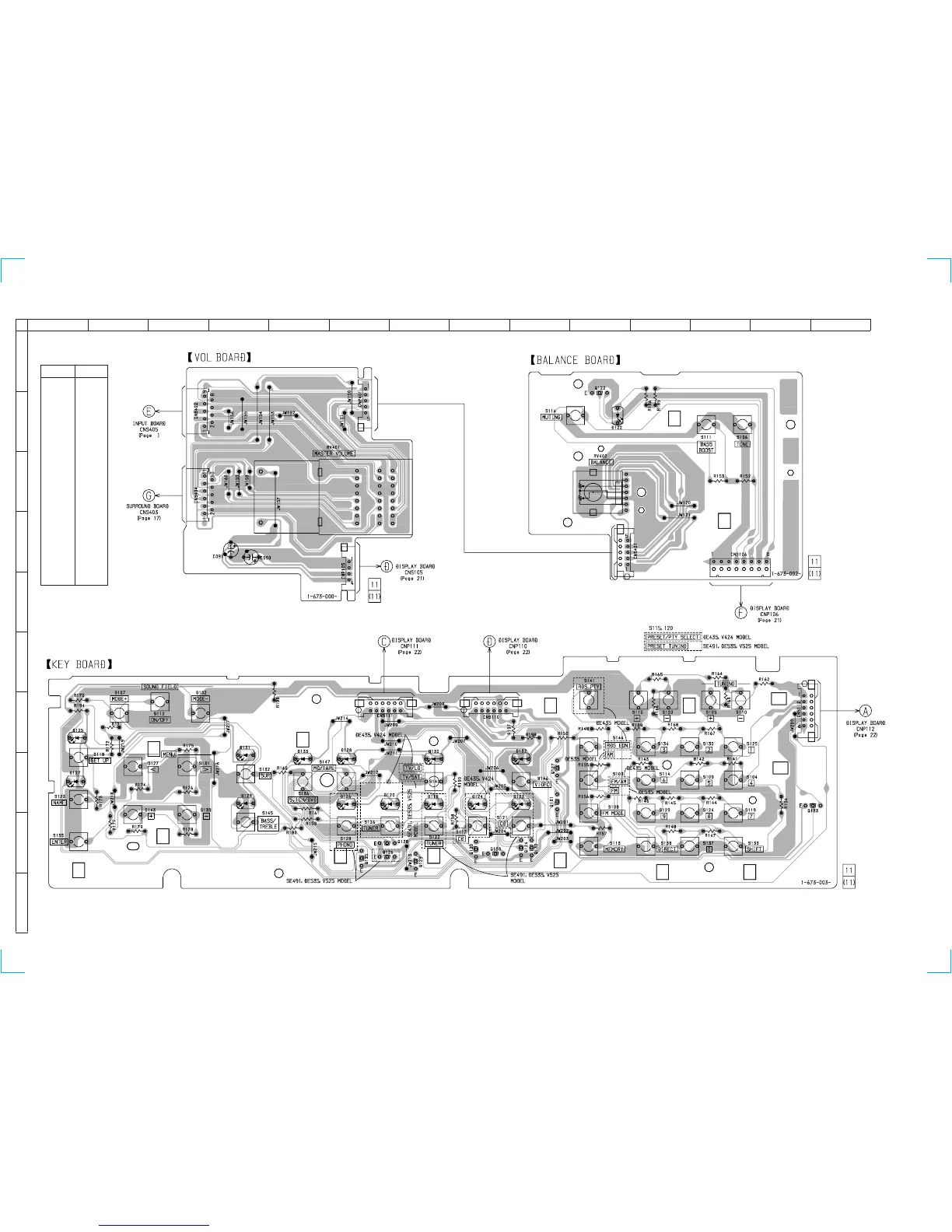

3-9. PRINTED WIRING BOARD — KEY SECTION —
— 25 — — 26 —
13
16
Ref. No. Location
D119 H-7
D120 H-6
D122 A-10
D123 H-9
D124 H-8
D125 G-1
D126 H-6
D127 H-1
D128 H-6
D129 H-4
D130 H-7
D131 H-4
D132 H-9
Q122 A-10
Q124 I-9
Q125 I-6
Q126 I-6
Q127 H-9
Q128 I-7
Q129 I-7
Q130 I-8
Q131 H-9
Q132 I-9
Q133 H-14
• Semiconductor
Location
• Refer to page 7 for Circuit Boards Location.
