Sony STR-DE435 - Printed Wiring Board - Rear Amp Section

STR-DE435/DE535/SE491/V424/V525
12
A
B
C
D
E
F
G
H
I
J
34567891011121314

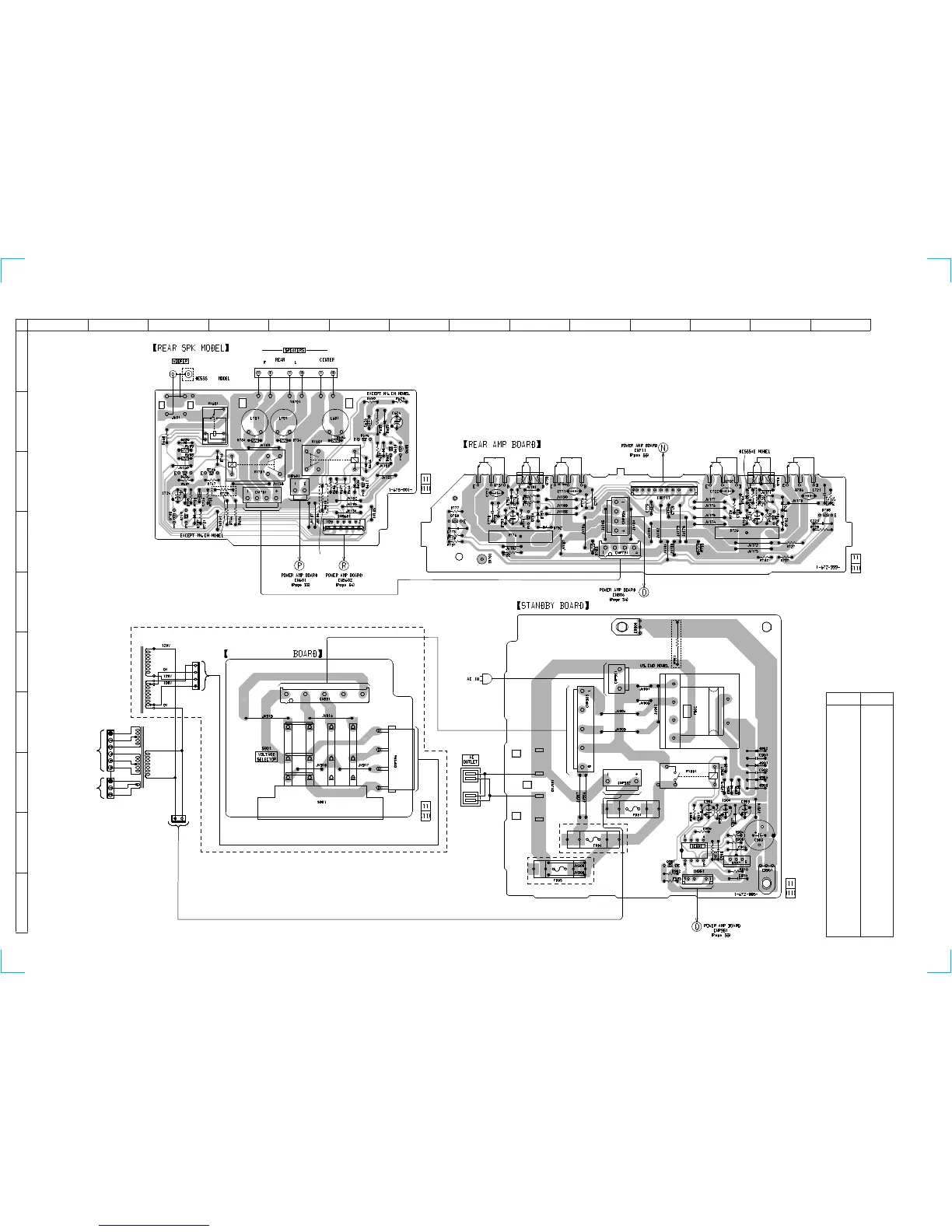

3-11. PRINTED WIRING BOARD — REAR AMP SECTION —
— 29 — — 30 —
TO
POWER AMP BOARD
CNP802
(Page 33)
TO
POWER AMP BOARD
CNP801
(Page 33)
S
T
DE535 :E MODEL
AEP,EE,CIS,MY,SP,AUS,CH
DE535:E
1-672-996-
CNW902
AEP,EE,CIS
MODEL
VOLTAGE SELECTOR
,V525
CNV903
T901
POWER
TRANS FORMER
16
Ref. No. Location
D605 B-6
D606 C-6
D607 C-6
D646 C-6
D696 B-3
D701 C-13
D702 D-13
D703 D-12
D704 C-12
D705 C-3
D707 D-3
D746 C-4
D751 C-9
D752 D-9
D753 D-8
D754 C-9
Q609 B-7
Q611 C-6
Q696 C-3
Q708 C-14
Q709 D-3
Q710 D-3
Q746 C-4
Q704 D-13
Q708 C-14
Q754 C-9
Q758 D-8
• Semiconductor
Location
• Refer to page 7 for Circuit Boards Location.
