Sony STR-DE598 - Front Panel Section Disassembly; Back Panel Section Disassembly

10
STR-DE598/DE698/DV10

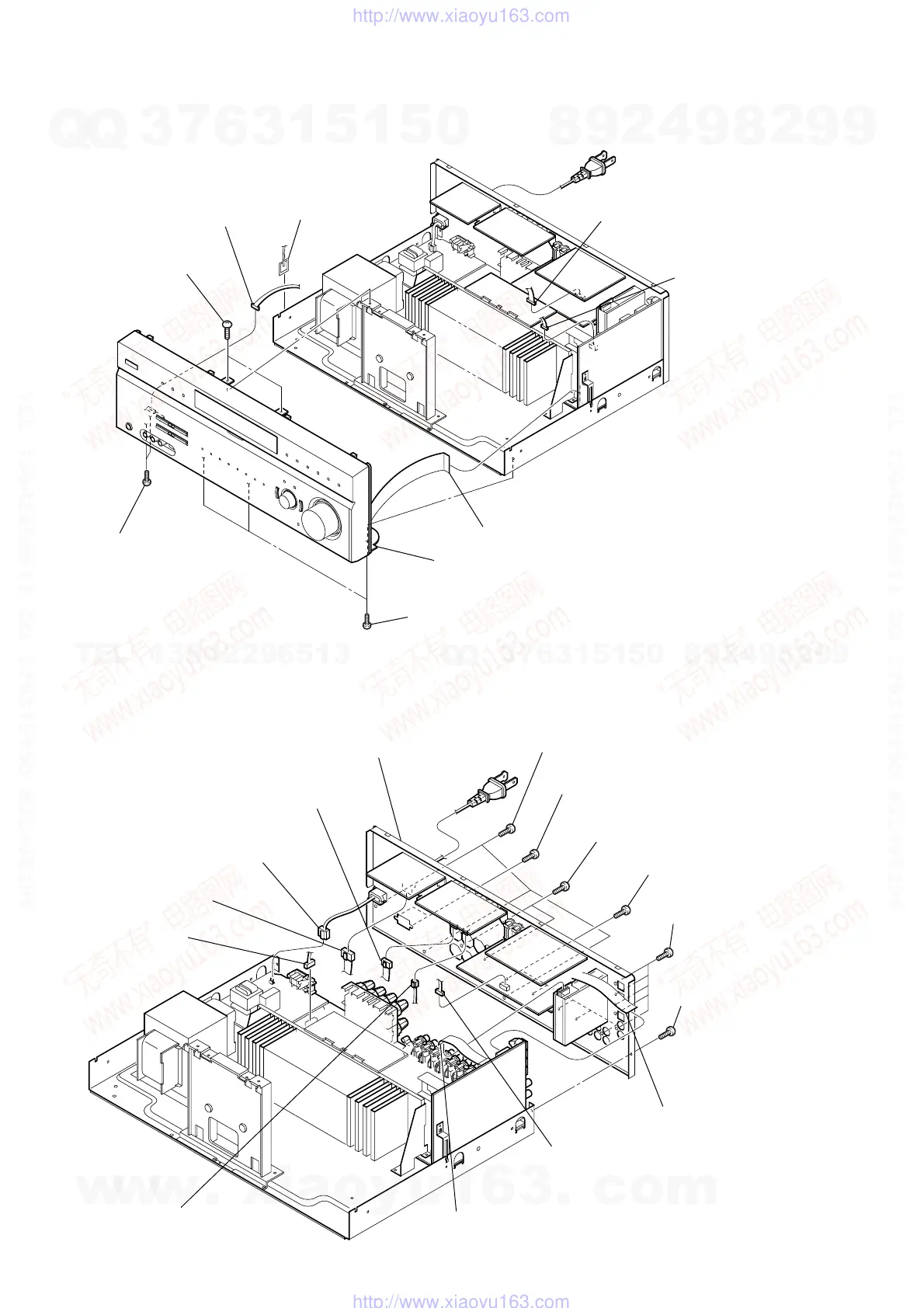

2-2. FRONT PANEL SECTION
2-3. BACK PANEL SECTION
9 front panel section
3 CNS505 (21 core)
2 CNP791 (4P)
4 CNP202 (5P)
5 CNP503 (3P
)
1 clip
6 two screws
(+BVTP 3
× 8)
7 two screws
(+BVTP 3
× 8)
8 three screws
(+BVTP 3
× 8)
2 CNS509 (13P)
3 CNP203 (3P)
1 connector (11P)
6 CNP600 (4P)
7 CN806 (4P)
5 CNP503 (4P)
8 CNP901
4 CNP504 (2P)
0 screw
(+BVTP 3
× 8)
qs five screws
(+BVTP 3
× 8)
qg back panel section
qa five screws
(+BVTP 3
× 8)
9 three screws
(+BVTP 3
× 8)
qd two screws
(+BVTP 3
× 8)
qf two screws
(+BVTP 3
× 8)
Ver. 1.1
