Sony STR-DE598 - Disassembly Procedures; Case Disassembly

9
STR-DE598/DE698/DV10

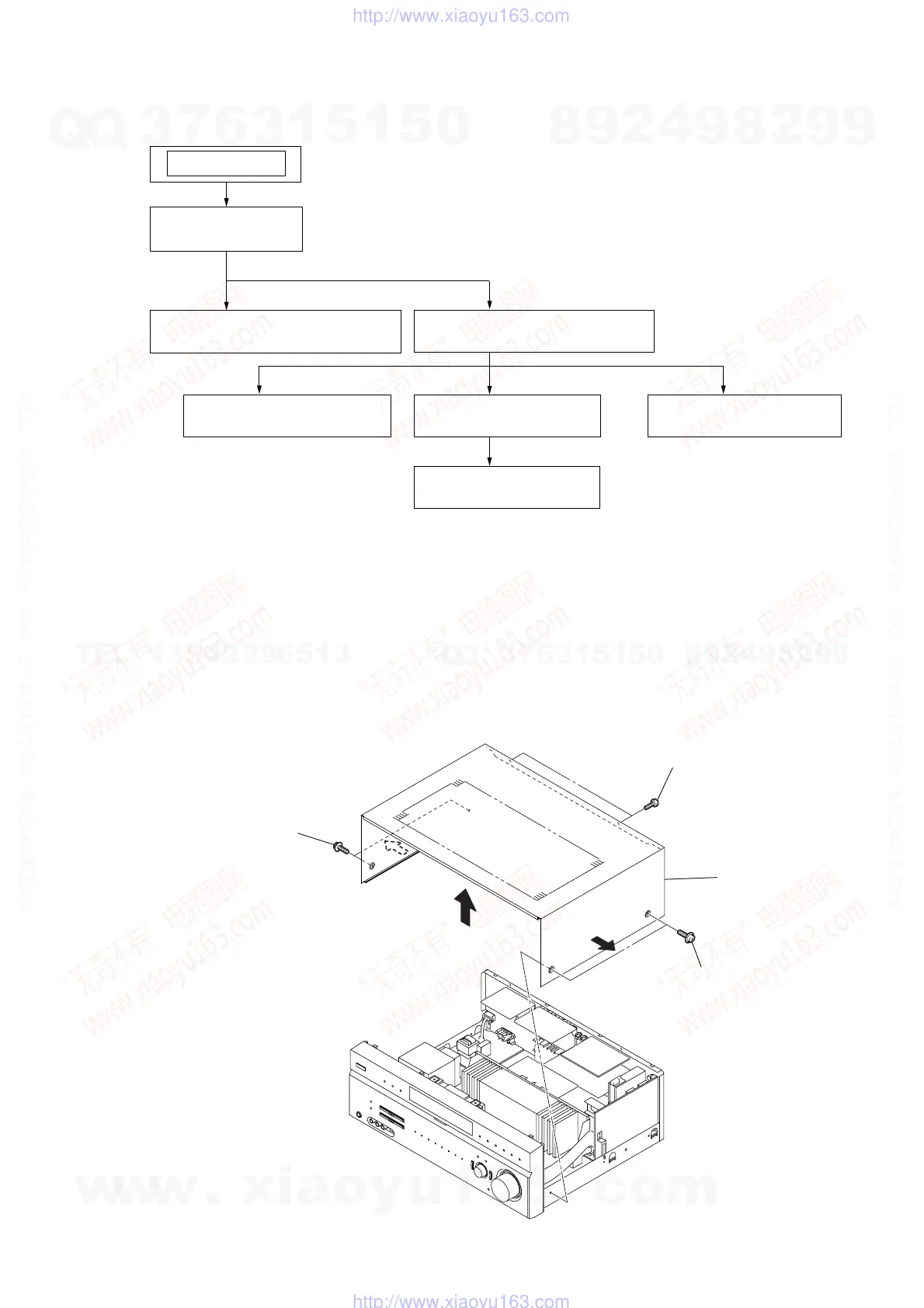

Note : This set can be disassemble according to the following sequence.
SECTION 2
DISASSEMBLY
2-1. CASE
2-1. CASE
(Page 9)
2-2. FRONT PANEL SECTION
(Page 10)
2-3. BACK PANEL SECTION
(Page 10)
SET
2-5. STANDBY BOARD
(Page 11)
2-7. SB AMP BOARD
(Page 12)
2-4. DIGITAL BOARD
(Page 11)
2-6. MAIN BOARD
(Page 12)
Note : Follow the disassembly procedure in the numerical order given.
1 two screws
(case 3 TP2)
2 two screws
(+BVTP 3
× 8)
3 two screws
(case 3 TP2
)
4 case
Ver. 1.1
