– 11 –
OFFSET ADJUSTMENT
1. Connect the CD player, etc. to a digital input terminal. (The op-
tical or coaxial terminal can be used for the input terminal.)
2. Switch the function, and select the connected source.
3. Set the connected equipment into the no-signal state.
4. Rotate the adjustment control corresponding to the channel to
be adjusted, and adjust the voltage of the corresponding test point
to 0 ± 2 mV.
SECTION 3
ELECTRICAL ADJUSTMENT

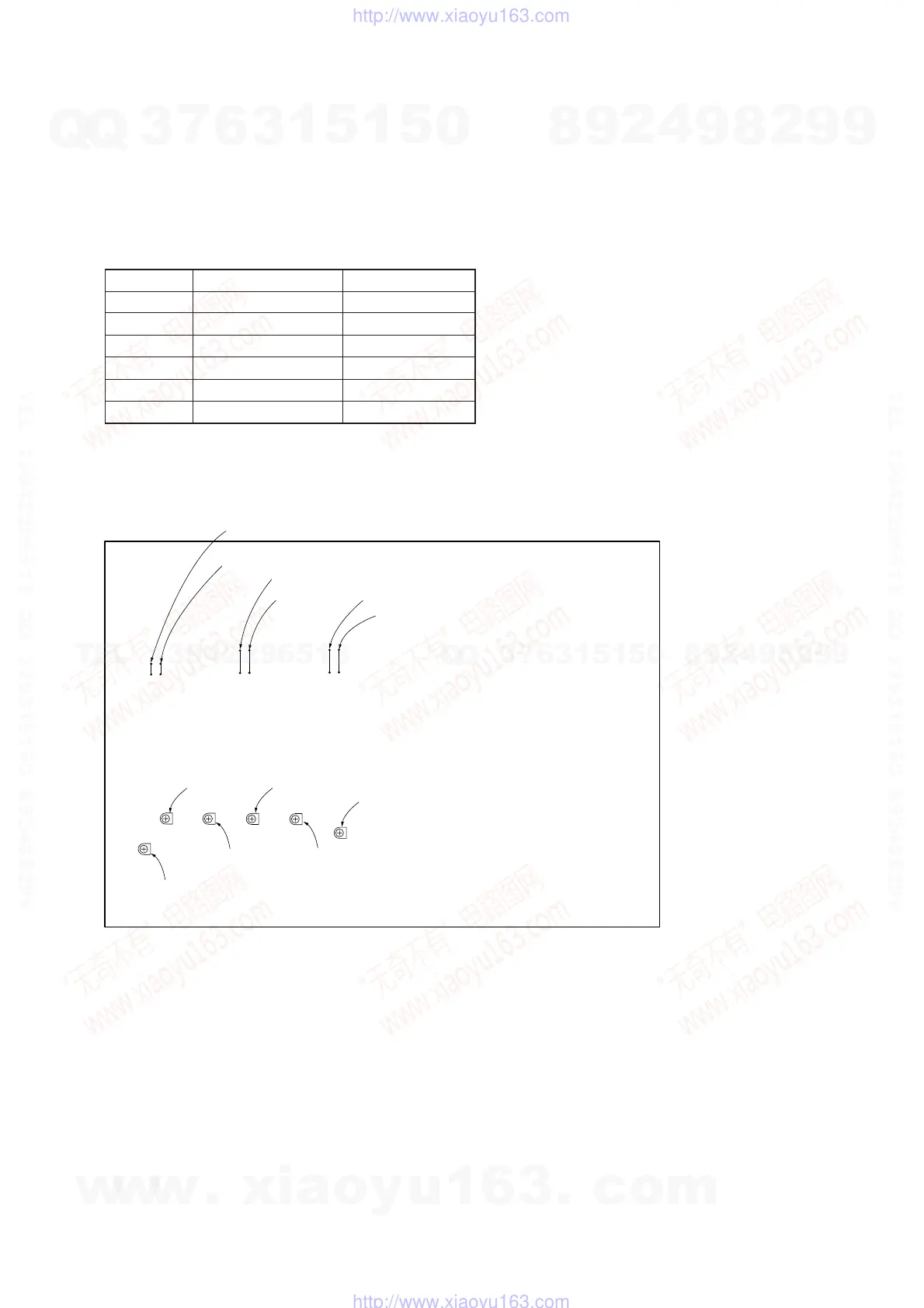

Adjustment Location:
[ANALOG BOARD] – Component side –
Channel Adjusting Point Measuring Point
FRONT L ch RV501 (OFFSET L) TP L (JW642)
FRONT R ch RV502 (OFFSET R) TP L (JW644)
CENTER RV503 (OFFSET C) TP C (JW631)
WOOFER RV504 (OFFSET SW) TP SW (JW633)
REAR L ch RV505 (OFFSET SL) TP SL (JW609)
REAR R ch RV506 (OFFSET SR) TP SR (JW611)
JW644 (TPR)
JW642 (TPL)
JW609 (TP SL)
JW611 (TP SR)
JW631 (TPC)
JW633 (TP SW)
RV506
(OFFSET SR)
RV505
(OFFSET SL)
RV504
(OFFSET SW)
RV502
(OFFSET R)
RV503
(OFFSET C)
RV501
(OFFSET L)
