Sony TA-E9000ES - Printed Wiring Board - (S) Video Section

TA-E9000ES
– 49 –
– 50 –

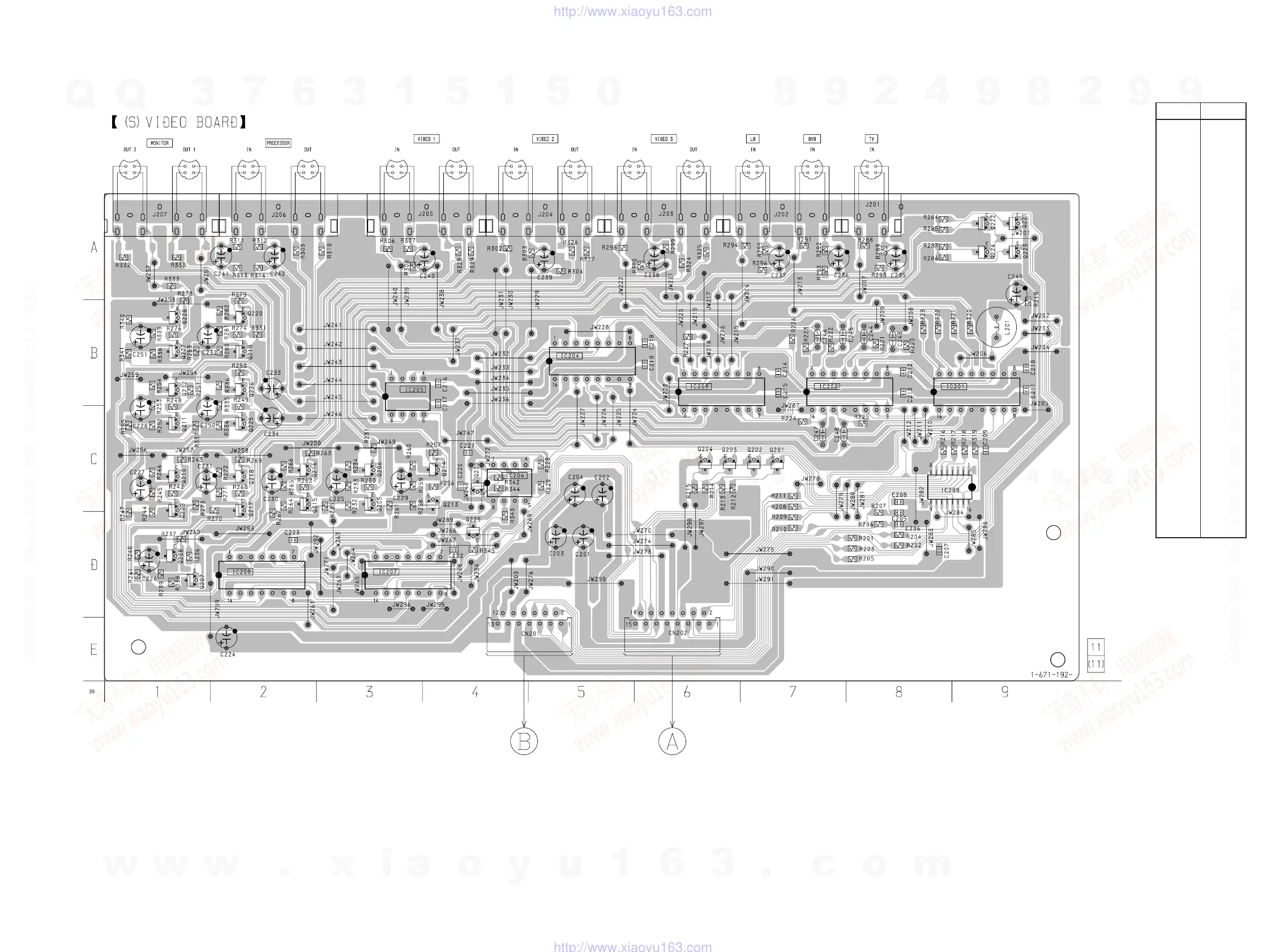

4-6. PRINTED WIRING BOARD – (S) VIDEO SECTION –
• See page 12 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
IC201 B-9
IC202 B-7
IC203 B-6
IC204 B-5
IC205 B-3
IC206 C-4
IC207 D-3
IC208 D-2
IC209 C-8
Q201 C-7
Q202 C-7
Q203 C-6
Q204 C-6
Q205 C-3
Q206 C-3
Q207 D-1
Q208 D-1
Q209 C-1
Q210 C-1
Q211 C-1
Q212 B-1
Q213 C-4
Q214 C-4
Q215 C-2
Q216 C-2
Q217 C-2
Q218 C-2
Q219 B-2
Q220 B-2
Q221 A-9
Q222 A-9
Q223 A-9
Q224 A-9
Q225 C-2
Q226 B-2
Q227 B-1
Q228 B-1
Q229 C-4
Q230 C-4
(Page 58)
(Page 46)
