Sony TA-E9000ES - Printed Wiring Board - Analog Section

TA-E9000ES
– 57 – – 58 –
Ref. No. Location
• Semiconductor Location
D501 C-9
D502 C-10
D503 C-12
D504 B-9
D505 B-10
D506 B-11
D507 B-12
D508 B-8
D509 D-1
IC502 C-3
IC503 C-6
IC504 E-3
IC506 F-6
IC507 F-2
IC508 F-3
IC511 F-7
IC512 F-8
IC513 E-8
IC514 F-9
IC515 F-10
IC516 E-10
IC517 F-11
IC518 F-12
IC519 E-12
IC520 C-8
IC521 C-11
IC522 C-11
IC523 B-9
IC524 H-8
IC525 H-8
IC526 H-9
IC527 G-10
IC528 H-10
IC529 H-10
IC530 H-10
IC531 C-2
IC532 F-2
IC533 F-3
IC536 E-3
Q501 D-9
Q502 D-7
Q503 D-8
Q504 D-7
Q505 D-8
Q506 D-8
Q507 D-10
Q508 D-9
Q509 D-10
Q510 D-9

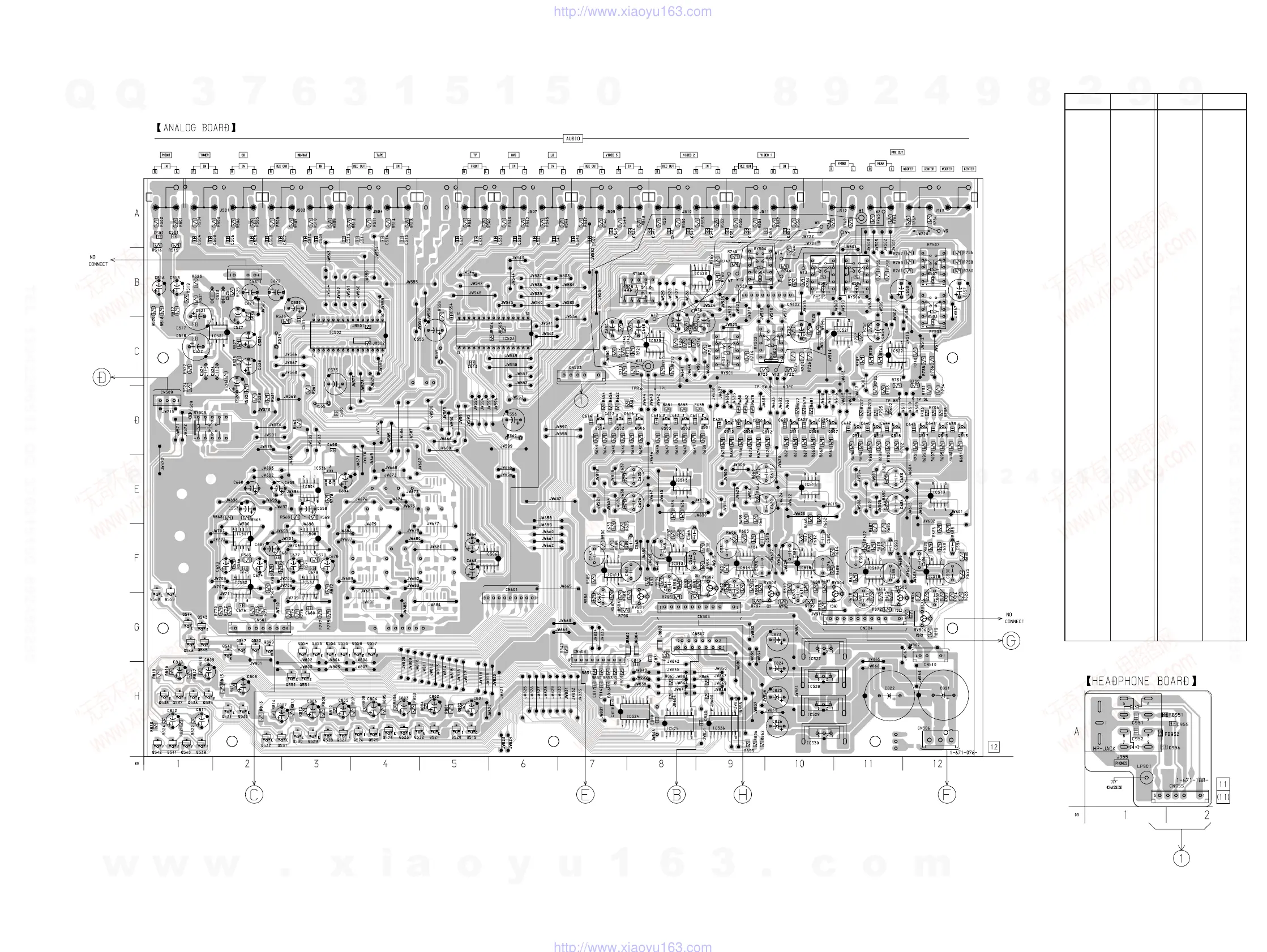

4-10. PRINTED WIRING BOARD – ANALOG SECTION –
• See page 12 for Circuit Boards Location.
Ref. No. Location
Q511 D-10
Q512 D-10
Q513 D-12
Q514 D-11
Q515 D-12
Q516 D-11
Q517 D-12
Q518 D-11
Q519 H-5
Q520 H-5
Q521 H-5
Q522 H-5
Q523 H-4
Q524 H-4
Q525 H-4
Q526 H-4
Q527 H-3
Q528 H-3
Q529 H-3
Q530 H-3
Q531 H-3
Q532 H-2
Q533 H-2
Q534 H-2
Q535 H-1
Q536 H-1
Q537 H-1
Q538 H-1
Q539 H-1
Q540 H-1
Q541 H-1
Q542 H-1
Q543 G-1
Q544 G-1
Q545 G-1
Q546 G-1
Q547 G-2
Q548 G-2
Q549 G-2
Q550 G-2
Q551 H-3
Q552 H-3
Q553 G-3
Q554 G-3
Q555 G-3
Q556 G-3
Q557 G-4
Q558 G-4
Q559 G-1
Q560 G-1
(Page 59)
(Page 60)
(Page 59)
(Page 49)
(Page 60)
(Page 92)
(Page 60)
