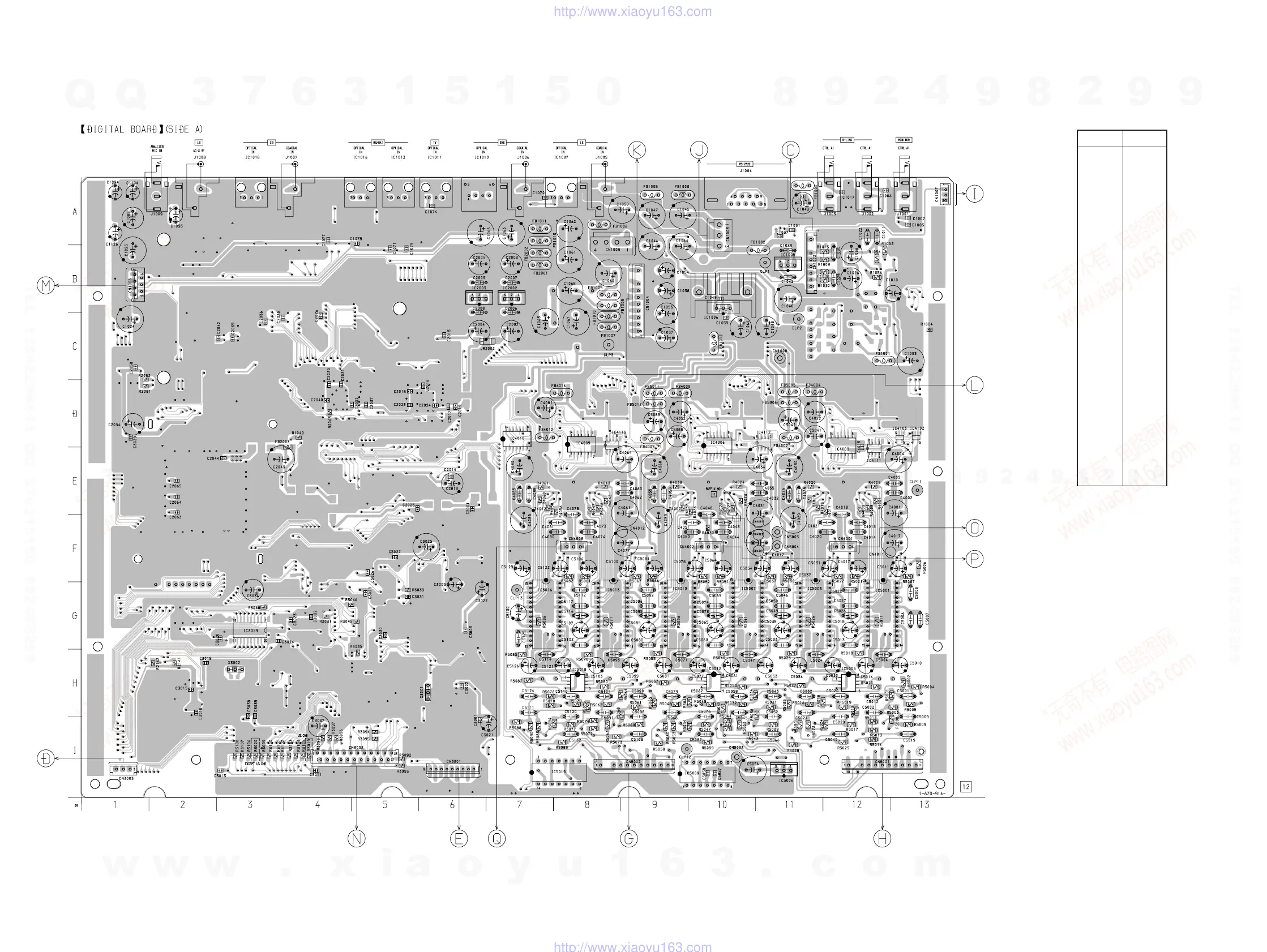

4-11. PRINTED WIRING BOARD – DIGITAL SECTION –
• See page 12 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
IC1005 B-11
IC1006 B-10
IC1007 A-8
IC1010 A-6
IC1011 A-6
IC1013 A-5
IC1016 A-5
IC1018 A-3
IC2002 B-7
IC2003 B-6
IC3019 G-3
IC4003 E-12
IC4006 D-10
IC4009 D-8
IC4010 D-7
IC4102 D-13
IC4103 D-13
IC4111 D-12
IC4112 D-11
IC4113 D-8
IC5001 G-12
IC5003 G-11
IC5005 H-12
IC5006 I-11
IC5007 G-10
IC5009 I-10
IC5010 G-9
IC5012 H-10
IC5013 G-8
IC5016 G-7
IC5018 H-8
IC5019 I-7
(Page
87, 88)
(Page 57)
(Page 83)
(Page 57, 58)
(Page 98)
(Page 58)
(Page 58)
(Page 98)
(Page 98)
(Page 91)
(Page 96)
(Page 57)
(Page 91)
(Page 91)
