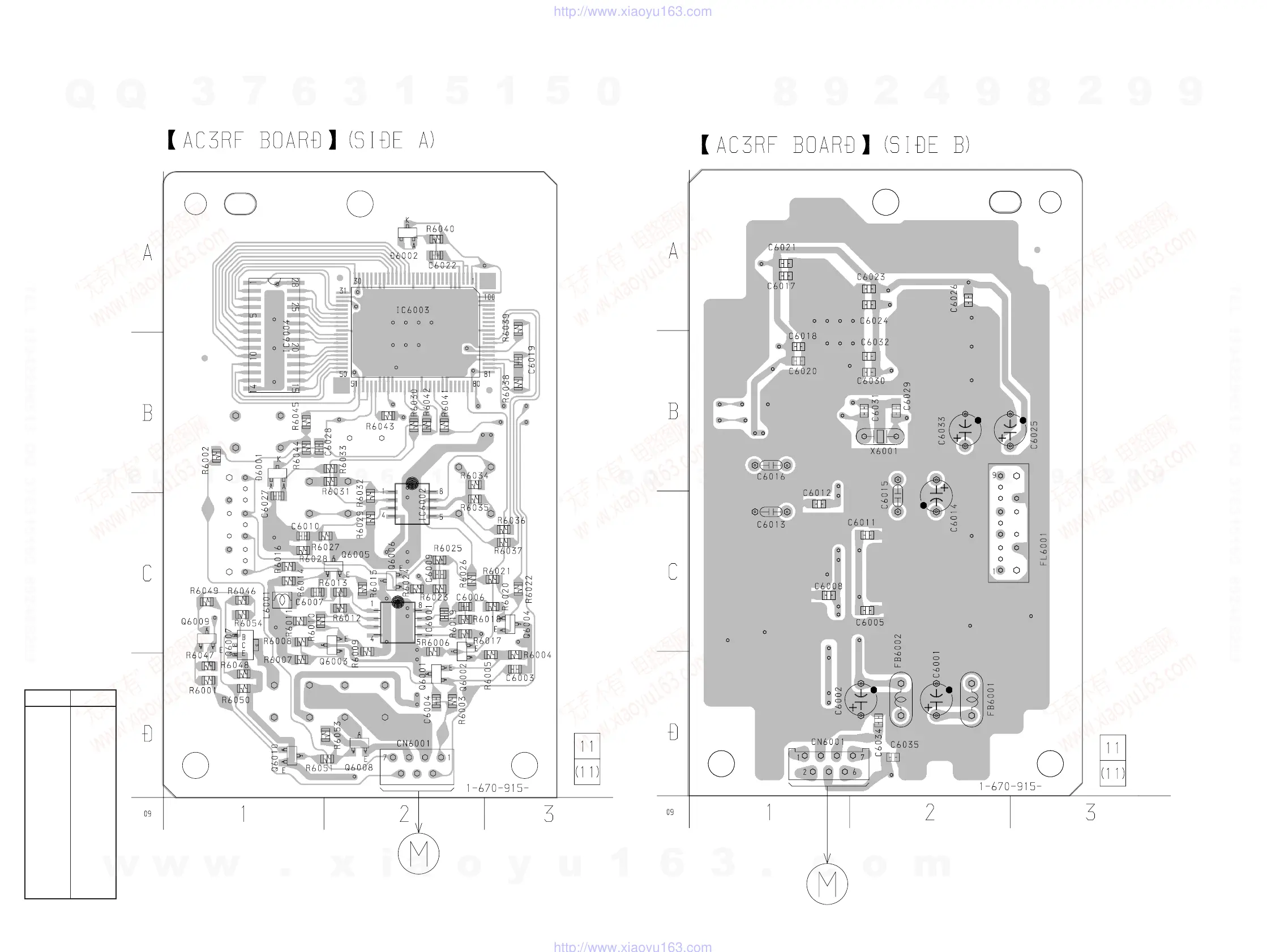

4-24. PRINTED WIRING BOARD – AC 3RF SECTION –
• See page 12 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D6001 B-1
D6002 A-2
IC6001 C-2
IC6002 C-2
IC6003 A-2
IC6004 A-1
Q6001 D-2
Q6002 C-2
Q6003 C-2
Q6004 C-3
Q6005 C-2
Q6006 C-2
Q6007 C-1
Q6008 D-2
Q6009 C-1
Q6010 D-1
(Page 59)
(Page 59)
