– 117 –
SECTION 5

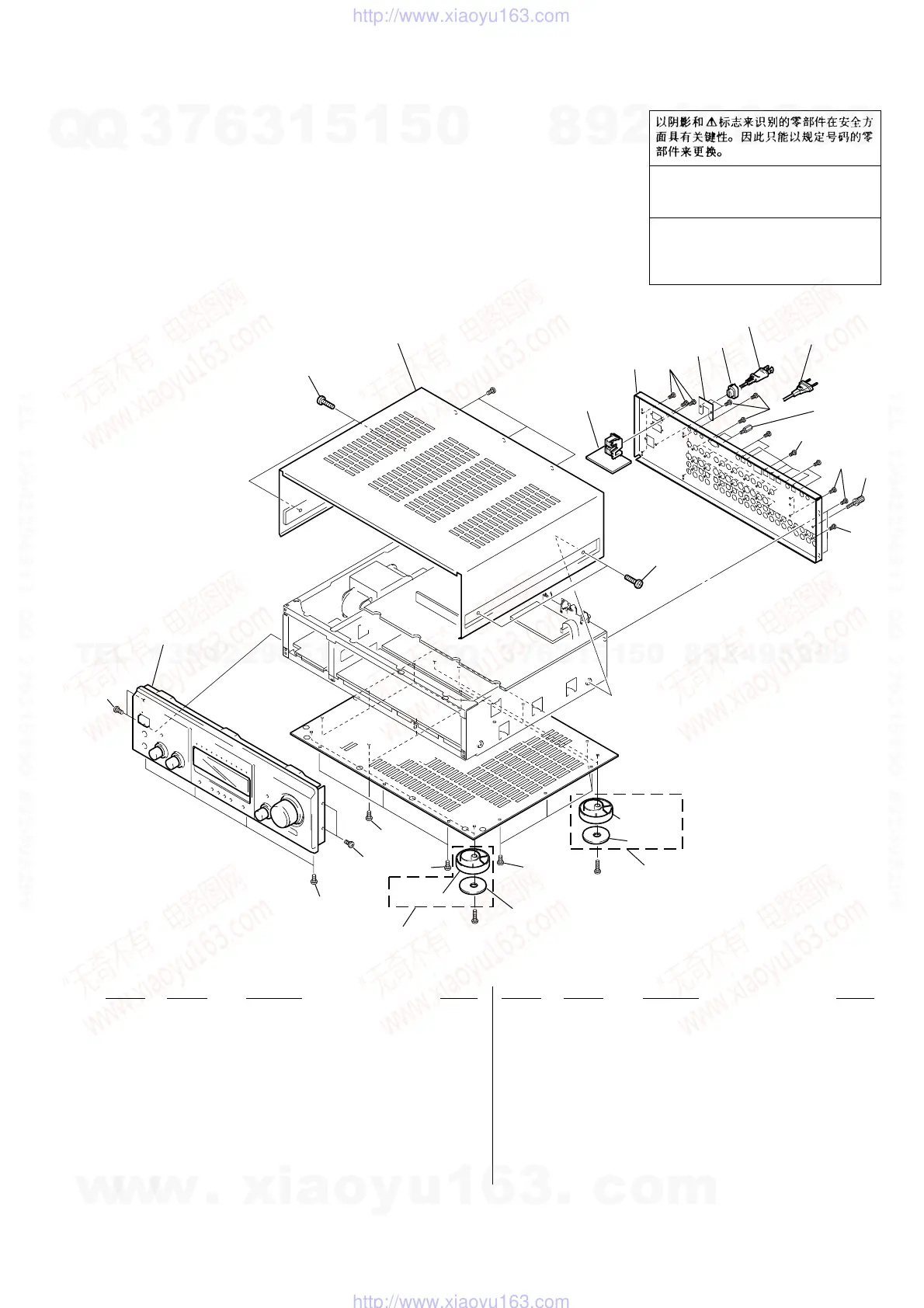

EXPLODED VIEWS
5-1. BACK PANEL SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)
Â
Cabinets color
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
CND : Canadian model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
! 7 1-575-953-11 CORD, POWER (EXCEPT US,CND)
8 4-947-010-01 SCREW, FEEDER FIXED
9 4-972-889-01 CUSHION
10 4-974-510-01 SCREW (+BV 3X8 B)
11 X-4950-540-1 FOOT ASSY
#1 7-682-547-09 SCREW +B 3X6
#4 7-685-885-09 SCREW +BVTT 4X16 (S)
#5 7-628-546-09 +B 3X5
* 1 4-211-437-01 CASE (GOLD)
* 1 4-211-437-11 CASE (BLACK)
2 4-976-827-01 SCREW, FLAT HEAD (BLACK)
2 4-976-827-11 SCREW, FLAT HEAD (GOLD)
* 3 1-671-186-11 OUTLET BOARD
* 4 4-211-440-12 PANEL, BACK (US,CND)
* 4 4-211-440-22 PANEL, BACK (EXCEPT US,CND)
* 5 4-923-873-01 BRACKET, CORD STOPPER
6 4-916-783-01 BUSHING, CORD
! 7 1-559-479-11 CORD, POWER (US,CND)
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque !
sont critiques pour la sécurité.
Ne les remplacer que par une piéce portant
le numéro spécifié.
1
2
2
3
4
5
6
8
10
Supplied
with J1004
#5
#5
10
10
10
10
7 (US,CND)
7 (EXCEPT
US,CND)
9
9
11
10
11
10
10
10
10
10
not supplied
not supplied
Front panel
#4
#4
#1
