ii i
'_ I ....... 1 -t !

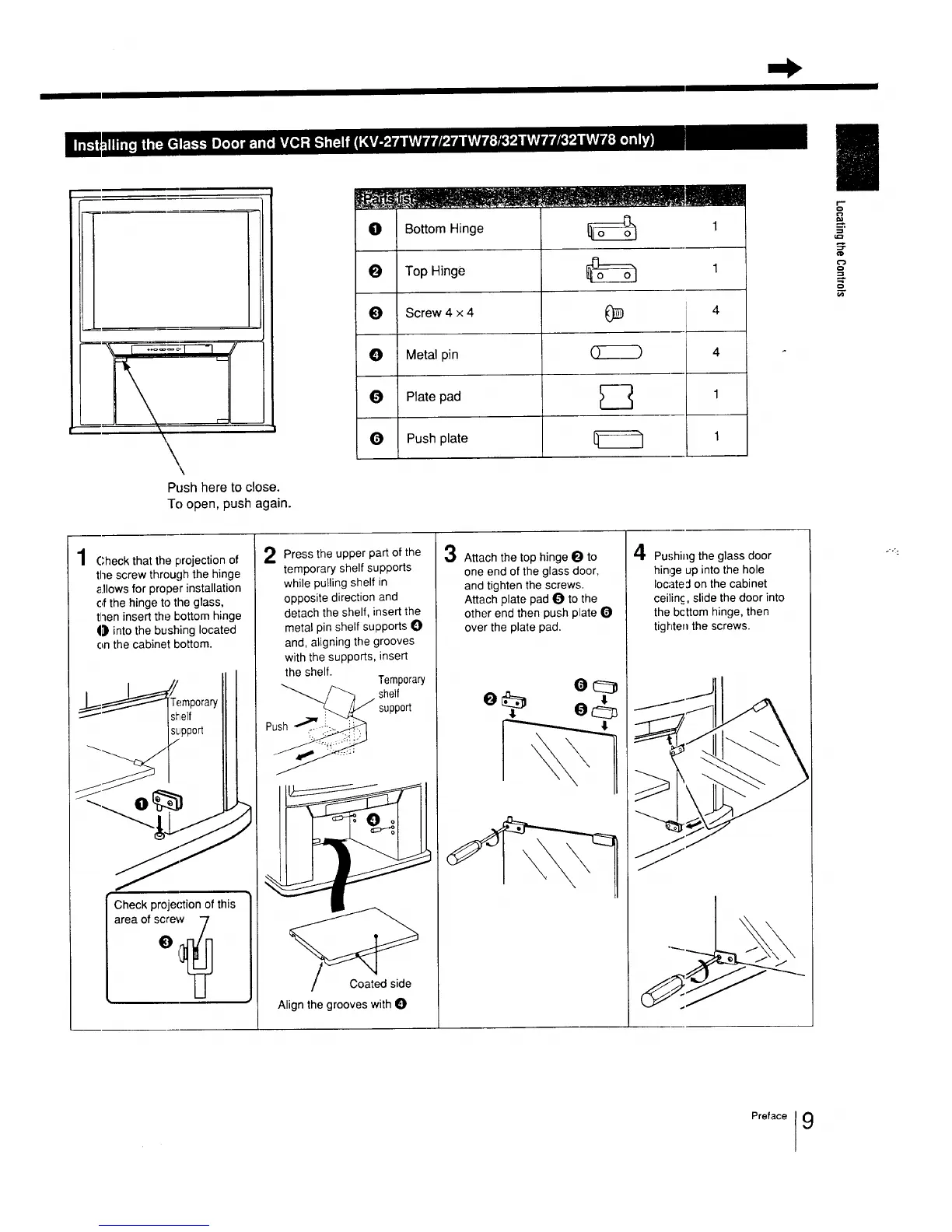

Push here to close.
To open, push again.
0 Bottom Hinge _ 1
0 Top Hinge _ 1
Screw 4 x 4 OD I 4
O Metal pin _ 4
0 Plate pad _ 1
0 Push plate _ 1
2_
Check that the projection of
the screw through the hinge
a.llows for proper installation
of the hinge to the glass,
tlnen insert the bottom hinge
0 into the bushing located
on the cabinet bottom.
_____.__ _mporary
shelf
support
/
Check projection of this
area of screw "7
I
Press the upper part of the
temporary shelf supports
while pulling shelf in
opposite direction and
detach the shelf, insert the
metal pin shelf supports
and, aligning the grooves
with the supports, insert
the shelf.
Temporary
_/"_ / shelf
';_.__!:=_"_/'i support
Coated side
Align the grooves with 0
Attach the top hinge 0 to
one end of the glass door,
and tighten the screws.
Attach plate pad 0 to the
other end then push plate
over the plate pad.
[ _\,
,/I
Pushing the glass door
hin up into the hole
locate:] on the cabinet
cet slide the door into
the bcttom hinge, then
tighten the screws.
/.._.
To Next Page
