Sony Trinitron KV-32TW77 - Exploded Views; Chassis Assembly Breakdown

NOTE:
* Items with no part number and no des-
cription are not stocked because they
are seldom required for routine service.
* The construction parts of an assembled
part are indicated with a collation
number in the remark column.

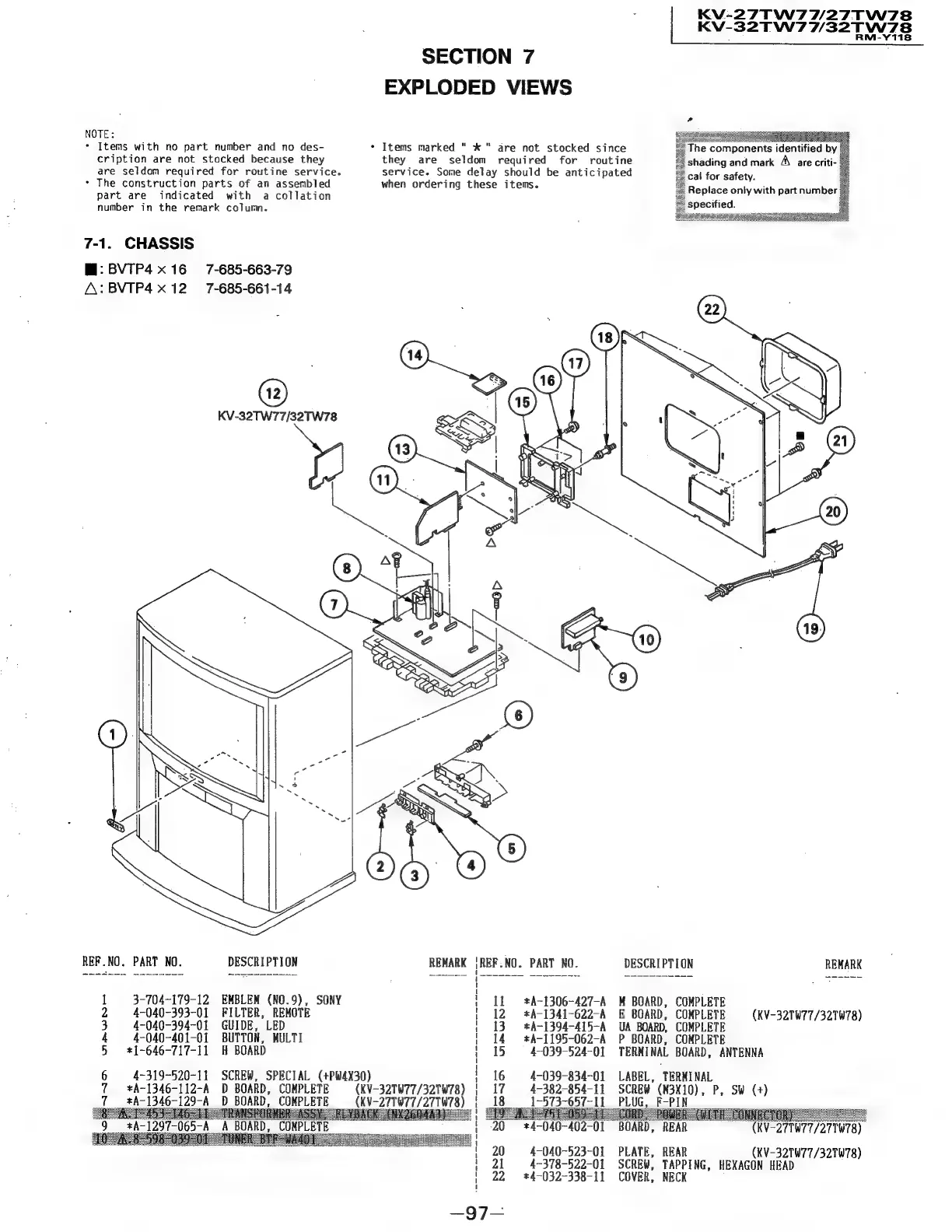

7-1. CHASSIS
Mi: BVTP4 x16 7-685-663-79
A: BVTP4 xX 12 = 7-685-661-14
(2)
KV-32TW77/32TW78
DESCRIPTION
REF.NO. PART NO.
1 3-704-179-12 EMBLEM (NO.9), SONY
2 4-040-393-01 FILTER, REMOTE
3 4-040-394-01 GUIDE, LED
4 4-040-401-01 BUTTON, KULTI
5 #*1-646-717-11 H BOARD
6
7
7
9
4-319-520-11 SCREW, SPECIAL (+PW4X30)
*A-1346-112-A D BOARD, COMPLETE
+A-1346-129-A_ D BOARD, COMPLETE
SECTION 7
EXPLODED VIEWS
+ Items marked " *" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
REMARK | REF. NO. PART NO.
KV-27TW77/27TW78
KV-32TW77/ 32T W738
. mponen'
= shading and mark A\ are criti-
= cal for safety.
Replace only with part number
ifi
DESCRIPTION REMARK
11 #*A-1306-427-A M BOARD, COMPLETE
12 *A-1341-622-A E BOARD, COMPLETE
13 *A-1394-415-A UA BOARD, COMPLETE
14 *A-1195-062-A P BOARD, COMPLETE
15 = 4-039-524-01 TERMINAL BOARD, ANTENNA
16 4-039-834-01 LABEL, TERMINAL
(KV-32TW77/32TH78)
(KV-32T077/32TW78) 4-382-854-11 SCREW (M3X10), P, SW (+)
(KV-27TW77/27TW78) | 18 — 1-573-657-11 PLUG, F-PIN
eee, +4 wr
20
4-040-523-01
PLATE,
REAR
(KV-32TW77/32TW78)
21 —_4-378-522-01 SCREW, TAPPING, HEXAGON HEAD
22 *4-032-338-11 COVER, NECK
