Sony Trinitron KV-32TW77 - Outer Cover Assembly Breakdown

KV-27TW77/27TW78
_ KV-32TW77/32TW78

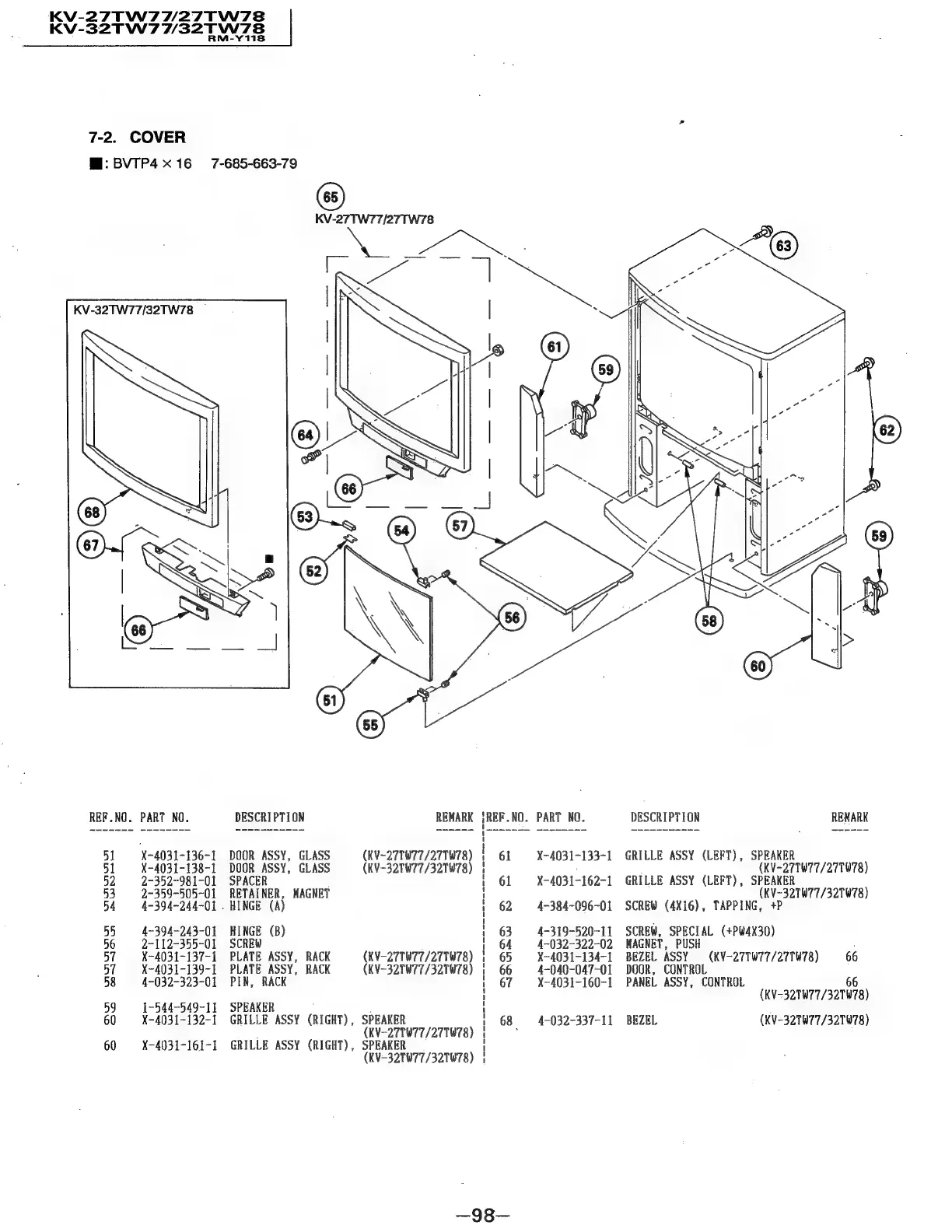

7-2. COVER
Mi: BVIP4x16 = 7-685-663-79
KV-32TW77/32TW78 ~
REF.NO. PART NO.
¥-4031-136-1
X-4031-138-1
2-352~-981-01
2-359-505-01
4-394-244-01 .
4-394-243-01
2-112-355-01
X-4031~137-1
X~4031-139-1
4-032-323-01
1-544-549-11
X-4031-132-1
X-4031-161-1
KV-27TW77/27TW78
DESCRIPTION
REMARK
DOOR ASSY, GLASS
DOOR ASSY, GLASS
SPACER
RETAINER, MAGNET
HINGE (A)
HINGE (B)
SCREW
PLATE ASSY, RACK
PLATE ASSY, RACK
PIN, RACK
(KV-27TW77/27TW78)
(KV-32TW77/32TW78)
(KV-27TW77/27TW78)
(KV-32TW77/32TW78)
SPEAKER :
GRILLE ASSY (RIGHT), SPEAKER
{KV-27T077/27TW78)
GRILLE ASSY (RIGHT), SPEAKER
(KV-32TW77/32TW78)
{REF.NO. PART NO.
X-4031-133-1
X-4031-162-1
4-384-096-01
4-319-520-11
4-032-322-02
X~-4031-134-1
4-040-047-01
X-4031-160-1
4-032-337-11
DESCRIPTION REMARK
GRILLE ASSY (LEFT), SPEAKER
(KV-27TW77/27TW78)
GRILLE ASSY (LEFT), SPEAKER
(KV-32TW77/32TW78)
SCREW (4X16), TAPPING, +P
SCREW, SPECIAL (+PW4X30)
MAGNET, PUSH
BEZEL ASSY — (KV-27TW77/27TW78) 66
DOOR, CONTROL
PANEL ASSY, CONTROL 66
(KV=32T077/32TW78)
BEZEL (KV-32TW77/32TW78)
