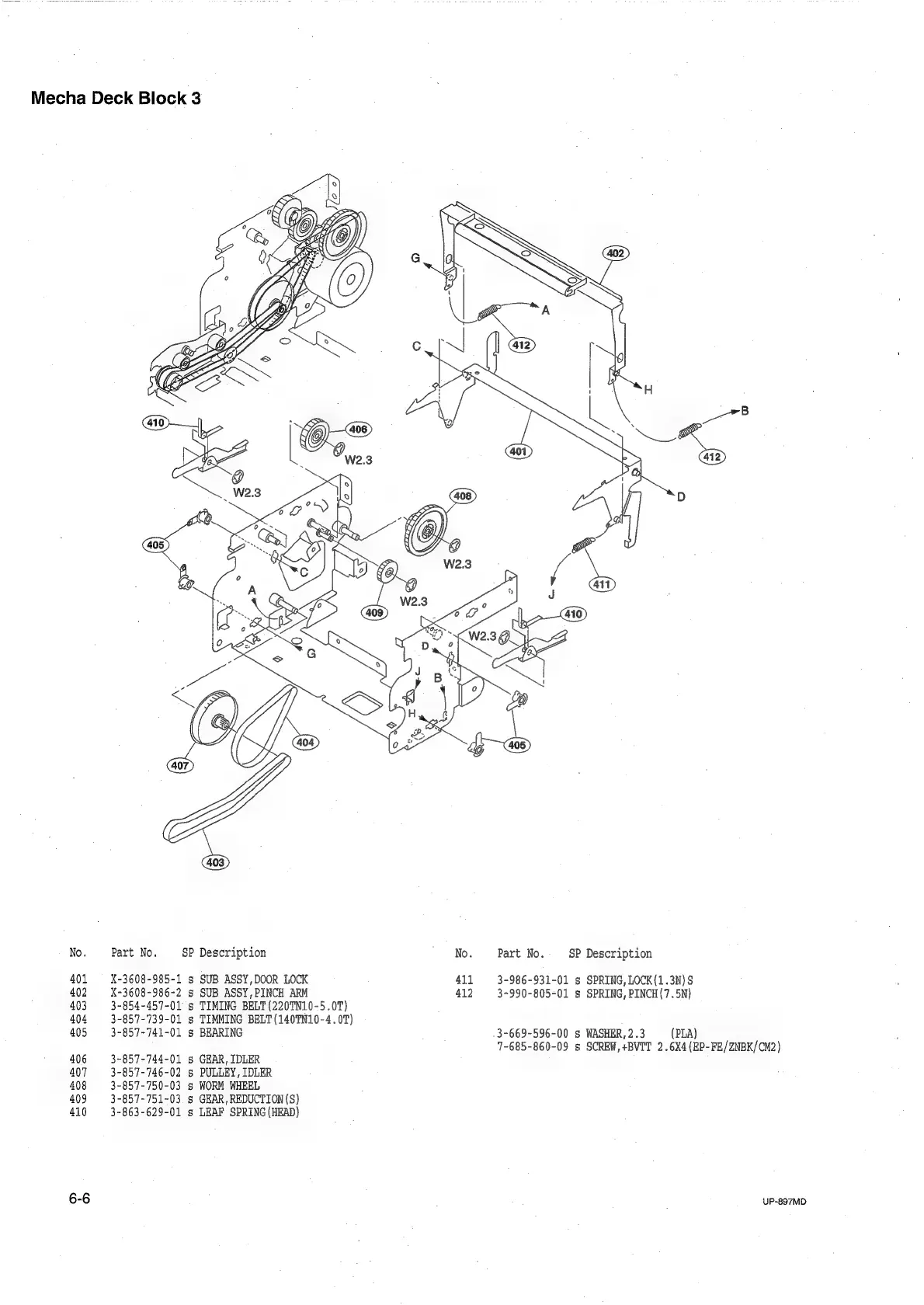

Mecha Deck Block 3
No.
401
402
403
404
405
406
407
408
409
410
Part No.
X-3608-985-1
X-3608-986-2
3-854-457-01
3-857-739-01
3-857-741-01
3-857-744-01
3-857-746-02
3-857-750-03
3-857-751-03
3-863-629-01
Description
SUB ASSY,DOOR LOCK
SUB ASSY,PINCH ARM
TIMING BELT (220TN10-5.0T)
TIMMING BELT (140TN10-4.0T)
BEARING
GEAR, IDLER
PULLEY , IDLER
WORM WHEEL
GEAR , REDUCTION (S)
LEAF SPRING (HEAD}
No.
411
412
Part No. SP Description
3-986-931-01 s SPRING, LOCK(1.3N)$
3-990-805-01 s SPRING, PINCH (7.5N)
.3-669-596-00 s WASHER, 2.3 (PLA)
7-685-860-09 s SCREW,+BVIT 2.6X4 (EP-FE/ZNBK/CM2)
UP-897MD
