Sony UP-897MD - Page 45

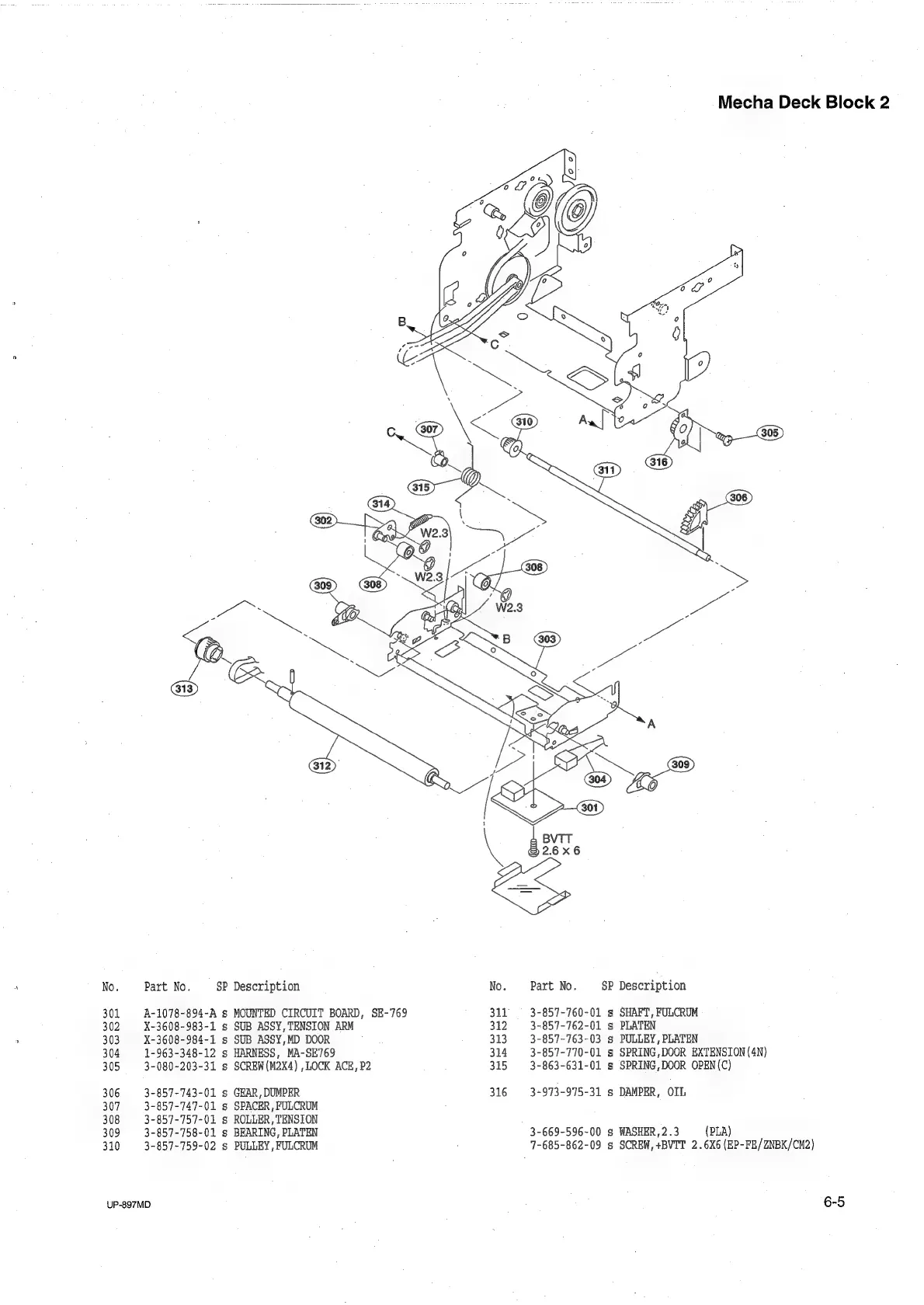

Mecha Deck Block 2
No. Part No.
301 A-1078-894-A
302 X-3608-983-1
303 X-3608-984-1
304 1-963-348-12
305 3-080-203-31
306 3-857-743-01
307 3-857-747-01
308 3-857-757-01
309 3-857-758-01
310 3-857-759-02
UP-897MD
SP
nNBnNMnNMN MN
nannn wn
Description
MOUNTED CIRCUIT BOARD, SE-769
SUB ASSY, TENSION ARM
SUB ASSY,MD DOOR
HARNESS, MA-SE769
SCREW (M2X4) , LOCK ACE, P2
GEAR , DUMPER
SPACER , FULCRUM
ROLLER , TENSION
BEARING, PLATEN
PULLEY , FULCRUM
311
312
313
314
315
316
Part No.
3-857-760-01
3-857-762-01
3-857-763-03
3-857-770-01
3-863-631-01
3-973-975-31
3-669-596-00
7-685-862-09
SP
s
s
s
s
s
s
s
s
Description
SHAFT , FULCRUM
PLATEN
PULLEY , PLATEN
SPRING, DOOR EXTENSION (4N)
SPRING, DOOR OPEN (C)
DAMPER, OIL
WASHER, 2.3 (PLA)
SCREW, +BVTT 2.6X6 (EP-FE/ZNBK/CM2)
6-5
