Sony VPL-PS10 - Page 102

4-2
VPL-PS10/PX10/PX15

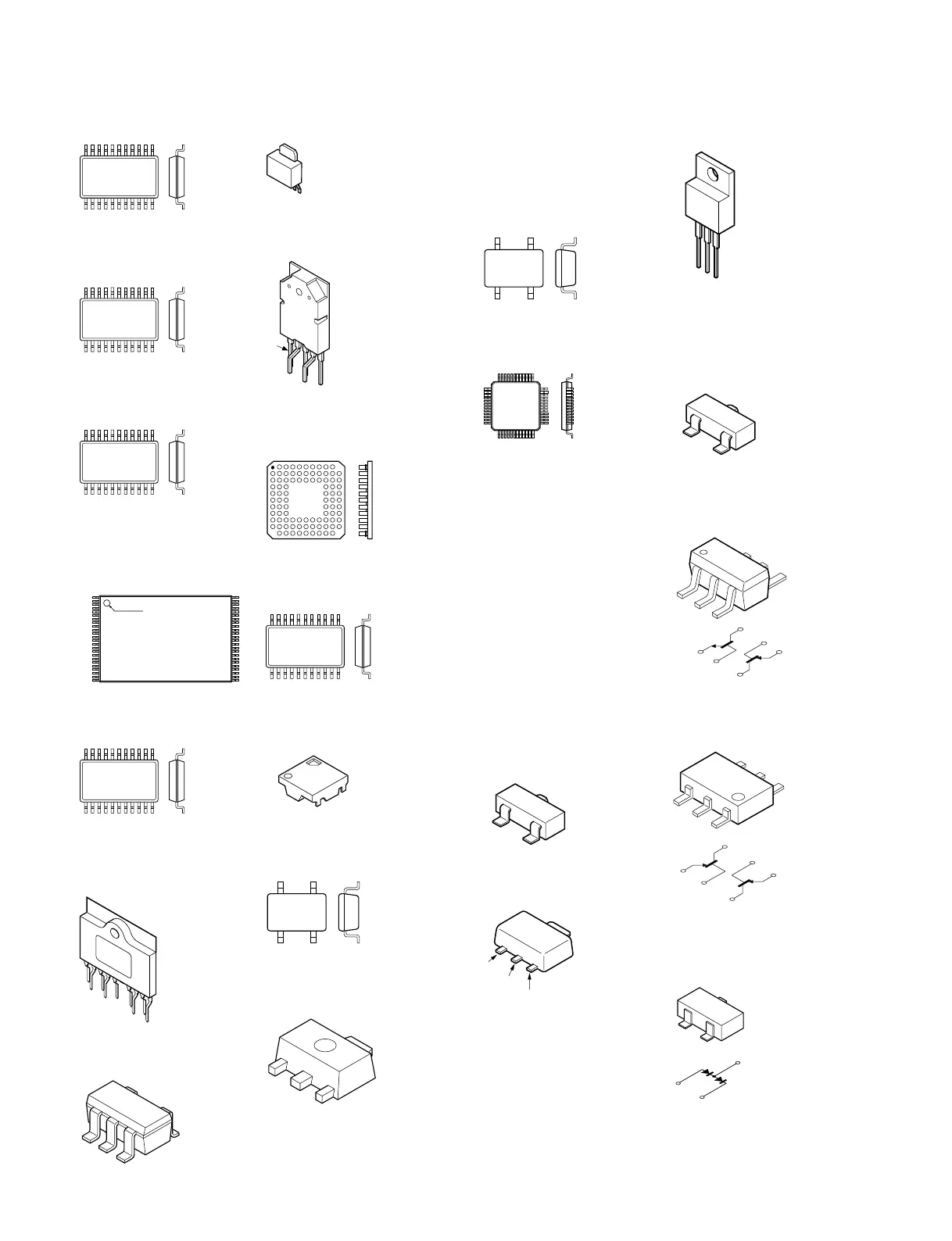

IC, Transistor, Diode
M52749FP-TP
1
TOP VIEW
42pin SOP
M52758FP
1
TOP VIEW
36pin SOP
M62392FP
1
TOP VIEW
24pin SOP
MBM29LV800TA-70PFTN-
SX1718
INDEX
TOP VIEW
1
24 25
48
MIC2563A-1BSM-T&R
1
TOP VIEW
28pin SOP
MZ1540
1
2
4
3
5
7
8
9
10
NNCD6.2MG-T2
3
4
1
5
PQ20VZ1U
1
2
3
5
4
PQ2TZ15U
5
1
R5C478II-BGA261A
BOTTOM VIEW
1
A
RCV4-A1T-MASK-25
ST72T631K4M1-XX
1
TOP VIEW
34pin SOP
RS-140-T
1
2
3
4
S-80828ANNP-EDR-T2
S-80842ANNP-ED6-T2
1
4pin CHIP
TA78M09F(TE16L)
1
2
3
TC75S56F(TE85R)
TC7S04FU(TE85R)
TC7S04FU-TE85R
TC7SET04FU(TE85R)
TC7SET08FU(TE85L)
TC7SET08FU(TE85R)
TC7W08FU
1
5pin CHIP
uPD72012GB-003-3B4
1
TOP VIEW
100pin QFP
2SA1037AK-T146-QR
2SA1037AK-T146-R
2SA1162-G
2SA1162-YG-TE85L
2SA1462
2SA1462-T1Y33Y34
2SA1611-M5M6
2SA1611T1-M5M6
2SC2712-YG
2SC2712-YG-TE85L
2SC3326N-A
2SC3326N-TE85L-AB
2SC4081-R
2SJ530S-TL
2SC4081T106R
DTC143ZKA-T146
DTC144EKA
DTC144EKA-T146
E
B
C
2SA1213Y-TE12L
2SB798
E
B
C
2SK2876-01MR-F119
GATE
DRAIN
SOURCE
DTA144EUA-T106
DTC114EU
DTC114EUA-T106
DTC123EKA-T146
GND
IN
OUT
HN1B01FU-TE85R
HN1C01FU-TE85R
5
6
4
1
3
2
4
5
6
2
1
3
XP4501-TXE
5
6
4
1
3
2
3
2
1
4
5
6
1SS226
MA157-TX
1
2
3
1
2
3
