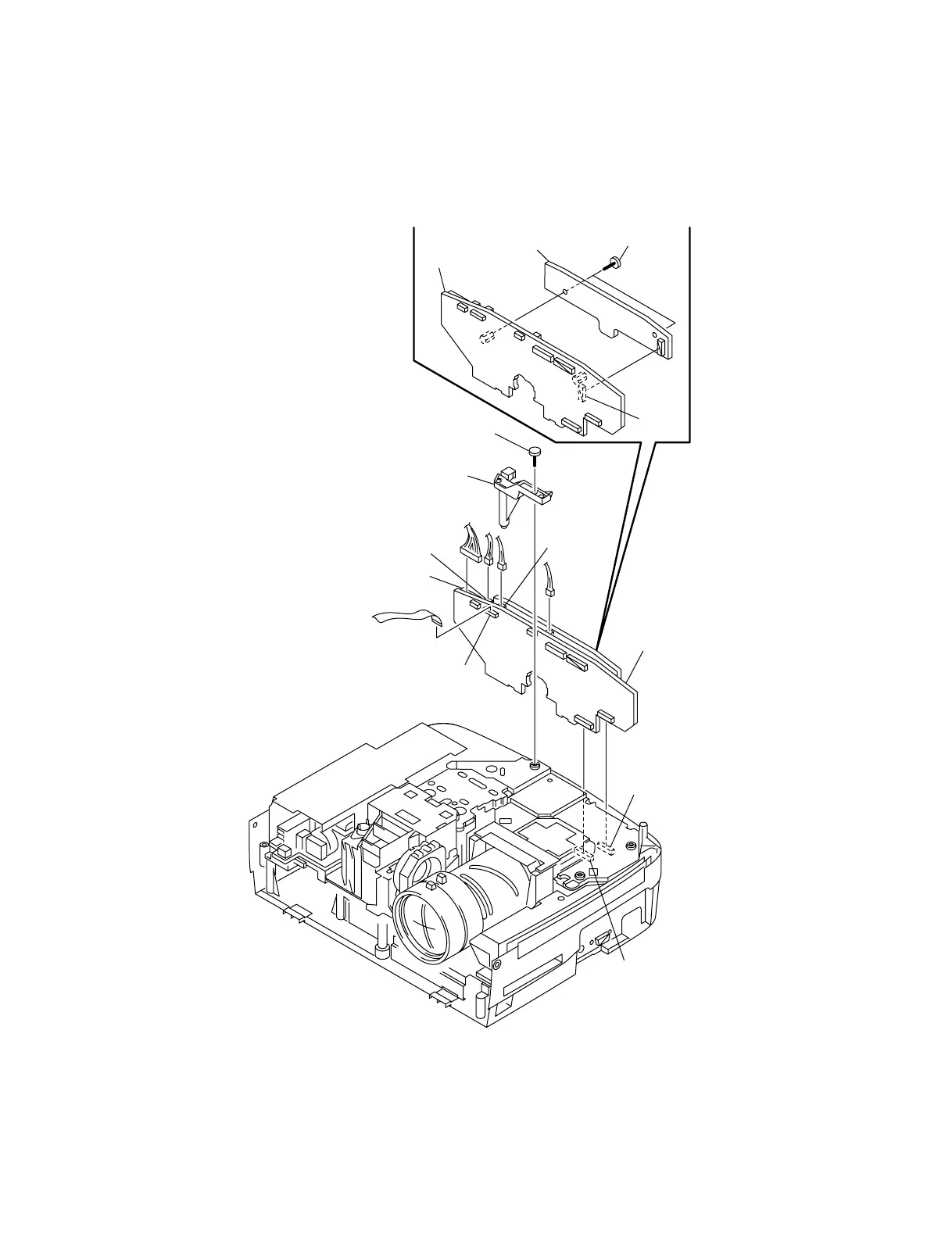

2-2-5. BB and BA Boards Removal
* Remove the C board. (Refer to 2-2-4.)
B block assembly
BB board
BA board
Screw
(B3
x
5)
Two screws
(B3
x
3)
CN801
CN810
CN809
CN811
CN303
CN806
1
2
3
4
Bracket (BB)
5
6
QA board
CN20
QB board
CN31
