Sony VPL-PS10 - F and V Boards Removal

2-14
VPL-PS10/PX10/PX15

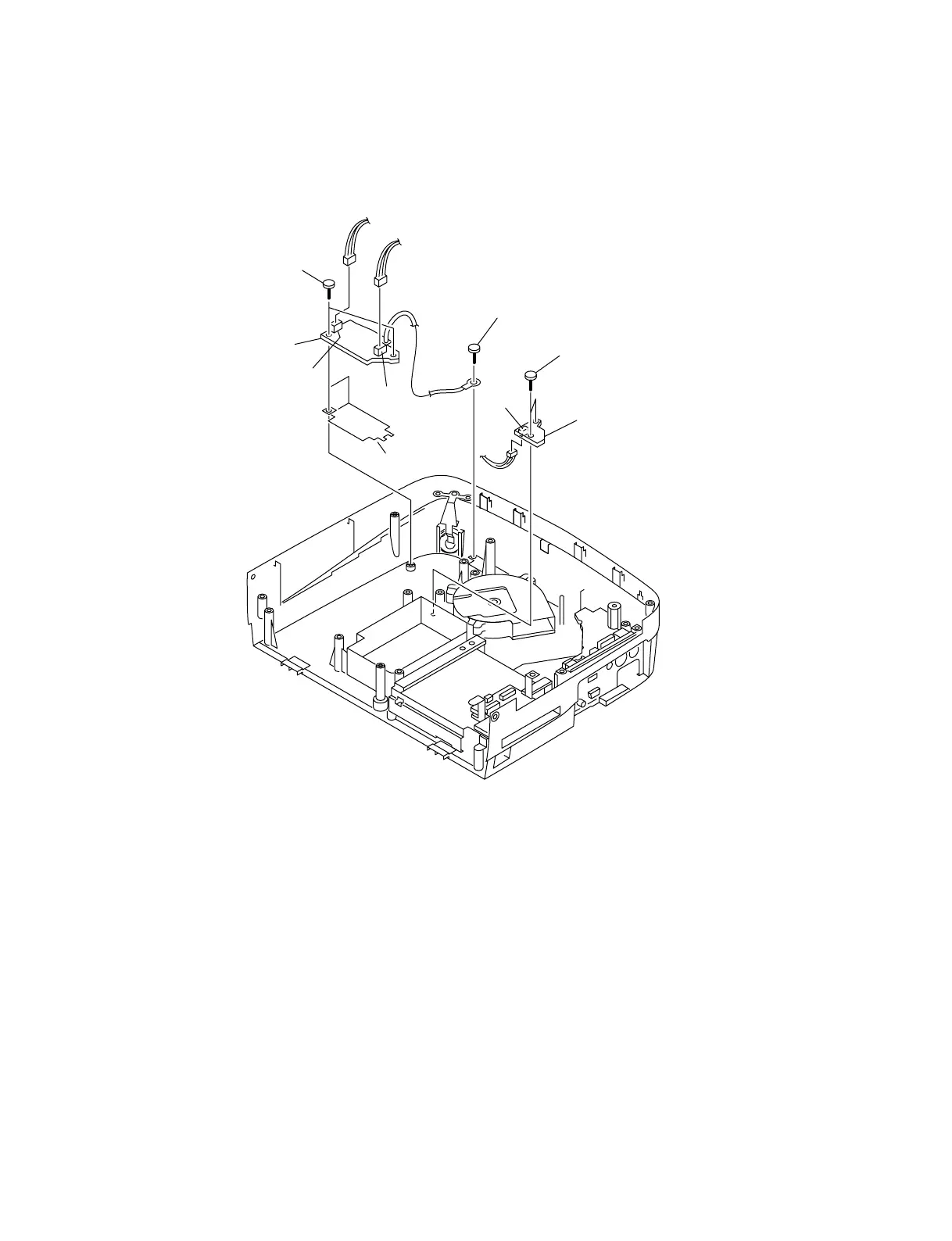

2-2-14. F and V Boards Removal
* Remove the Power Block. (Refer to 2-2-6.)
* Remove the optics unit assembly. (Refer to 2-2-7.)
Two screws
(B3 x 5)
Two screws
(B3 x 5)
Screw
(PSW4 x 8)
1
2
3
4
5
CN1002
CN16
CN1001
F board
V board
Sheet (F)
