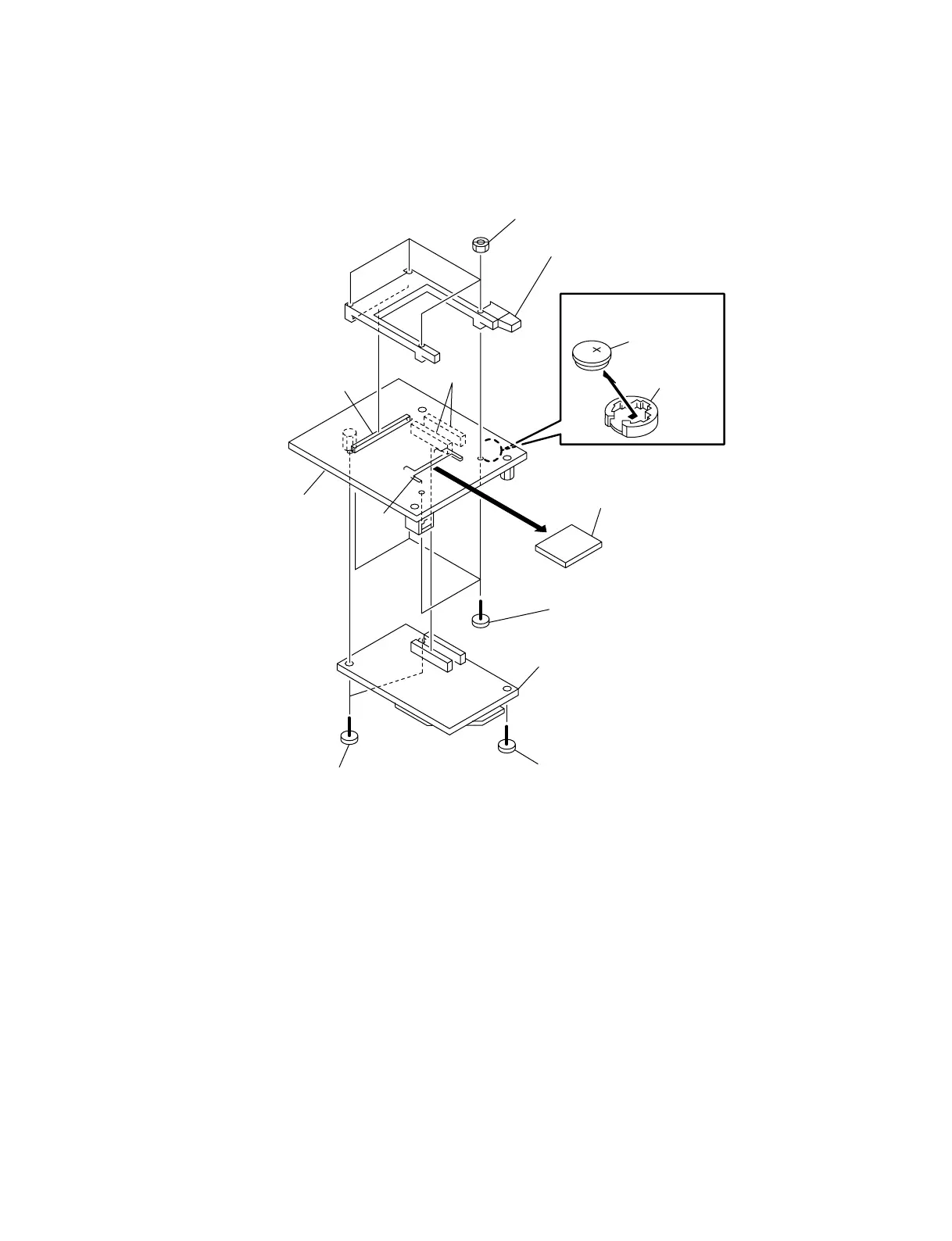

2-2-11. Parts from the QC Board Removal (VPL-PX15 only)
* Remove the QC Board. (Refer to 2-2-10.)
Screw
(P3 x 4)
Four screws
(P2 x 12)
Two screws
(P3 x 4)
1
2
3
4
5
6
7
CN9004
CN9008
CN9009
QC board
Remove the battery
in the direction of arrow.
Battery, Lithium
CR1220 Type
Battery removal
PC card connector
CF card assembly
Micon printed wiring board
Four nuts (M2)
Battery
holder
