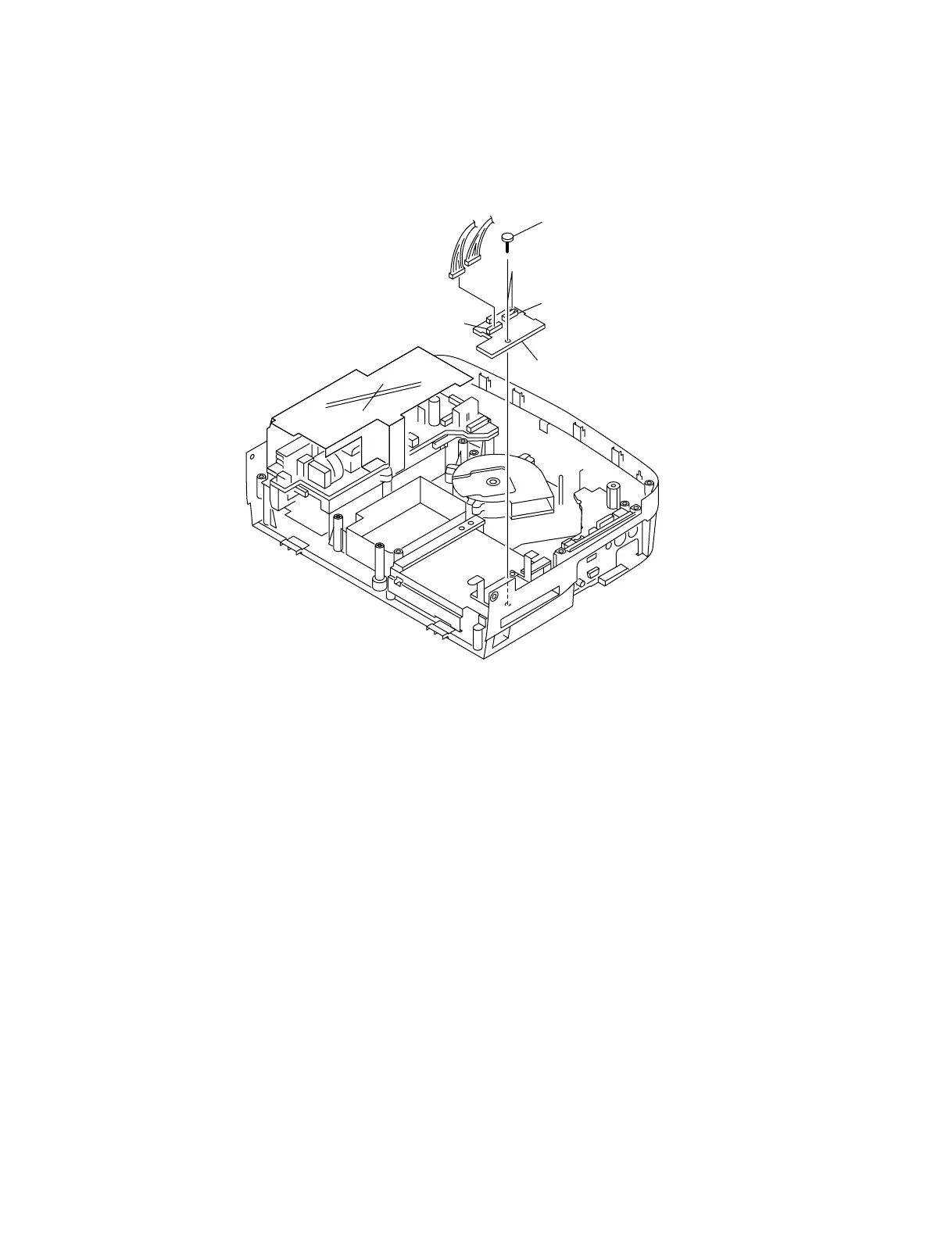

2-2-8. GA Board Removal (VPL-PX15 only)
* Remove the optics unit assembly. (Refer to 2-2-7.)
Two screws
(B3 x 5)
1
2
CN1502
CN1501
GA board
