Sony VPL-PS10 - CE Block Removal (VPL-PX15 Only)

2-9
VPL-PS10/PX10/PX15

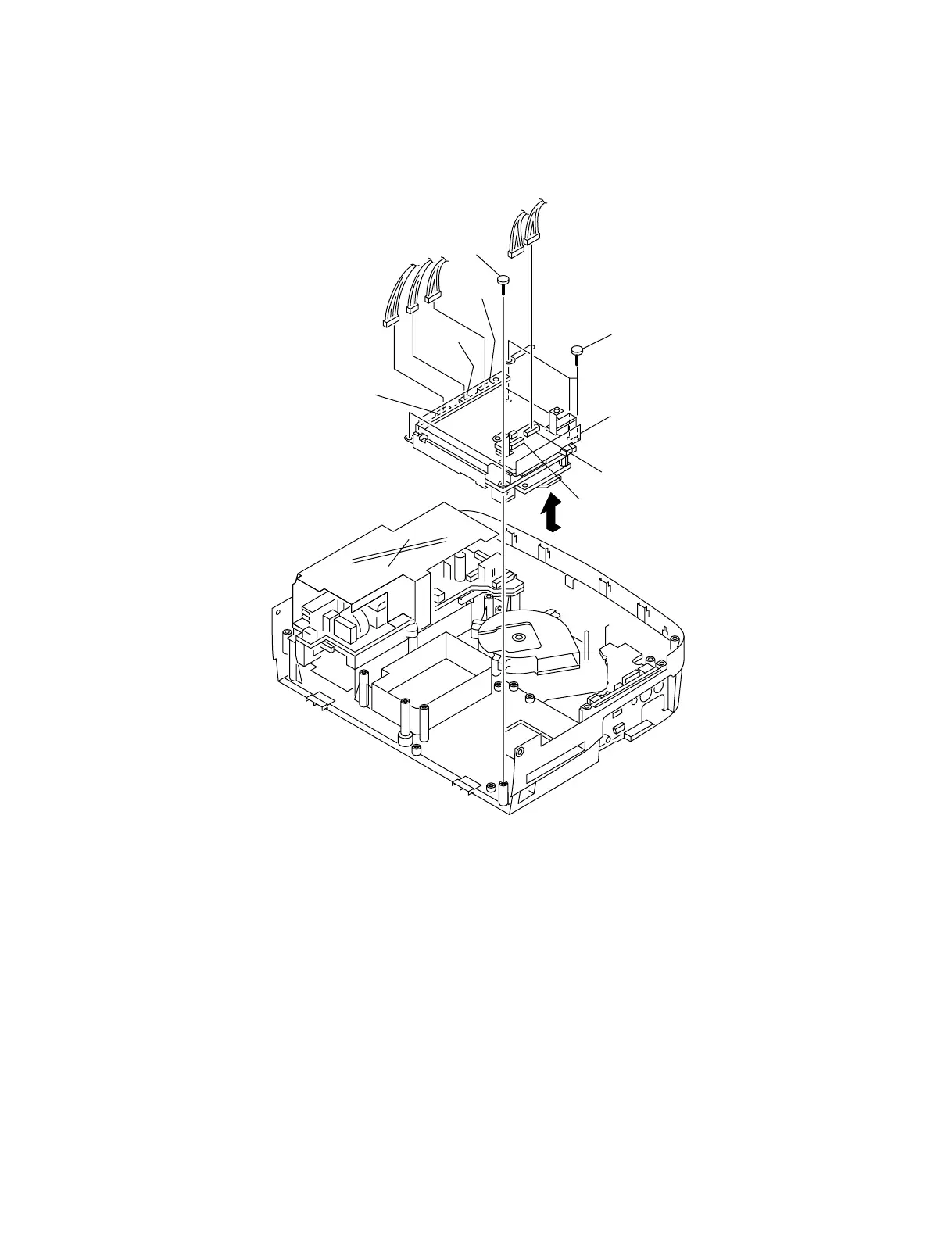

2-2-9. CE block Removal (VPL-PX15 only)
* Remove the optics unit assembly. (Refer to 2-2-7.)
Three screws
(B3 x 5)
Two screws
(B3 x 5)
1
2
3
CE block
GA board
CN1501
CM board
CN41
CM board
CN40
CM board
CN42
GA board
CN1502
