Sony VPL-PS10 - Prism Block Assembly and Polarizer Removal

2-15
VPL-PS10/PX10/PX15

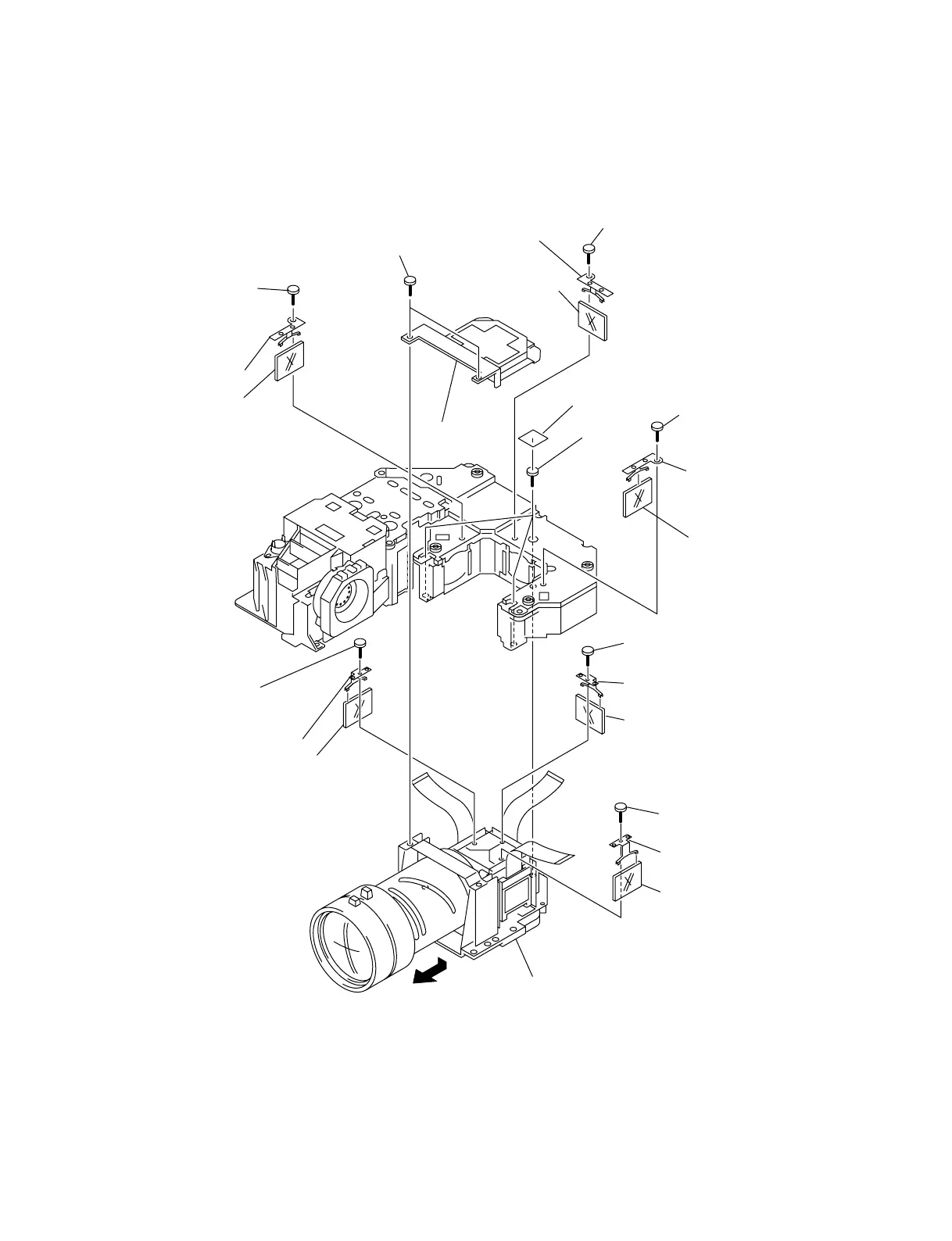

2-2-15. Prism Block Assembly and Polarizer Removal
* Remove the optics unit assembly. (Refer to 2-2-7.)
Prism block assembly
Three
screws
Screw
Screw
Out-polarizer (G)
Screw
Out-polarizer (R)
Screw
Out-polarizer (B)
Screw
Two Screws
Screw
1
2
3
4
5
6
7
8
9
!/
!-
!=
![
!]
Polarizer
retainer spring
Polarizer
retainer spring
Polarizer
retainer spring
Polarizer
retainer spring
Polarizer
retainer spring
In-polarizer (G)
In-polarizer (R)
Top cover
Sheet
In-polarizer (B)
Polarizer
retainer spring
!,
!.
@/
!\
!;
!'
@-
@=
@[
