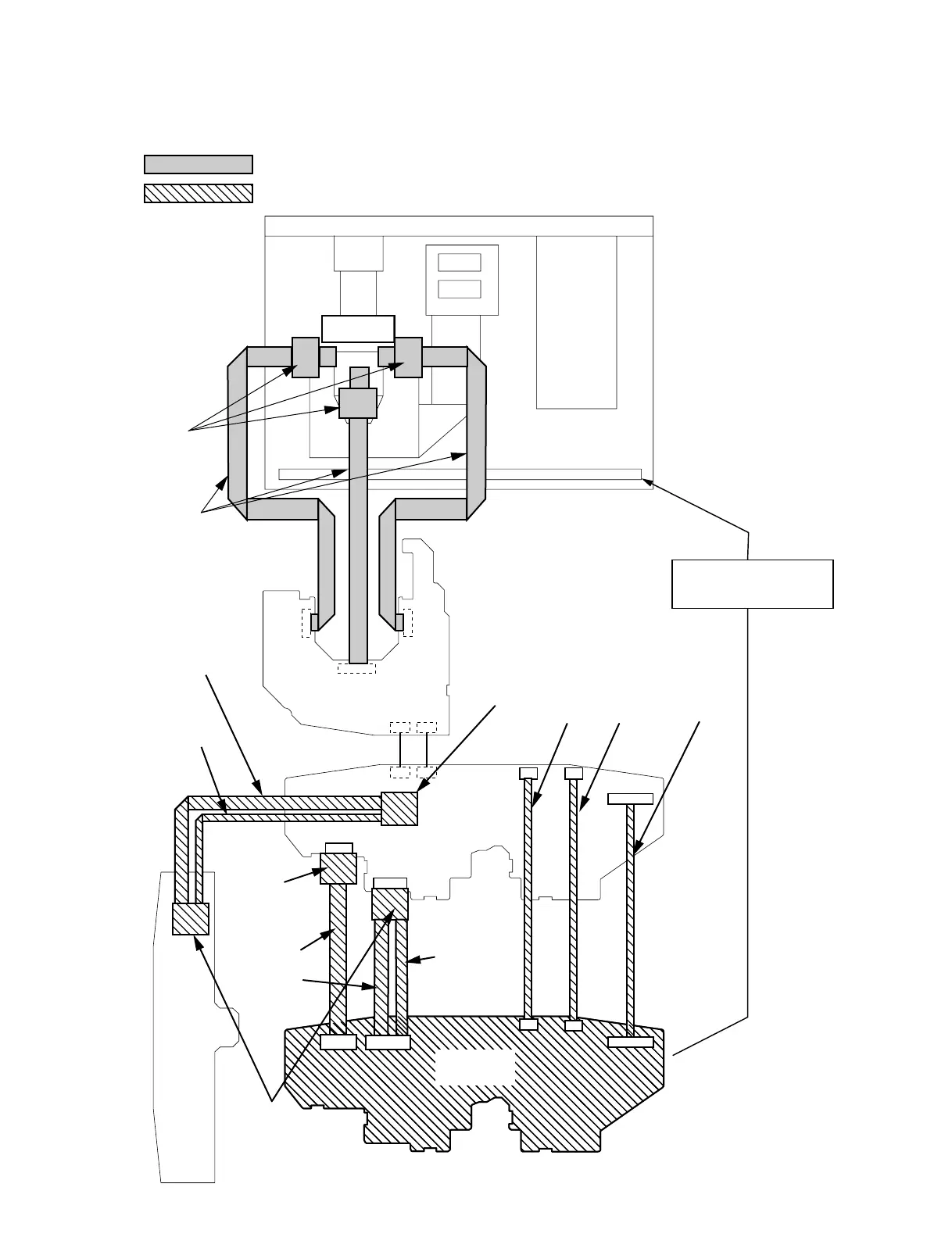

2-2-17. Extension Boards and Extension Cables Connection
board
BB
X6 boards
C board
X3 boards
X2 boards
X1 board
BA board
: X6 KIT ASSY (Part No. : A-1501-786-A)
: XBB KIT ASSY (Part No. : A-1501-989-A) (Including T3V board and harness 6P)
Flexible cables (30P)
Flexible cable (50P)
Flexible cable (24P)
Flexible cables
(50P)
Flexible cable
(24P)
Connector
(4P)
Connector
(5P)
Connector
(50P)
Connect the X4 board
instead of the BB board.
X4 board
