SoundCraft Si Series User Manual

Page 2 - 6 Soundcraft® Si Series User Guide
REAR CONNECTOR PANEL
The console has modular rear connector panels, the Analogue-to-Digital and Digital-to-Analogue converters
are contained in the rearcon modules. Each console has one master-section rearcon panel and four channel-
section modules (Si3) or three in the case of the Si2.
The master-section rearcon module has the following connectors:
Master Outputs (Right, Left & Centre) (XLRs)
Monitor Outputs (Right, Left & Centre) (XLRs)
4 pairs of Stereo Line inputs (3-pole Jacks),
8 Insert Points (separate send & return (3-pole Jacks)
Headphones Socket (3-pole Jack)
Talkback Mic (with 48V Phantom Power) (XLR)
Talkback External input (XLR)
Oscillator output (XLR)
MIDI IN OUT & THRU connectors (each a 5-pin DIN connector),
HiQnet™ connector (XLR-housed EtherCon).

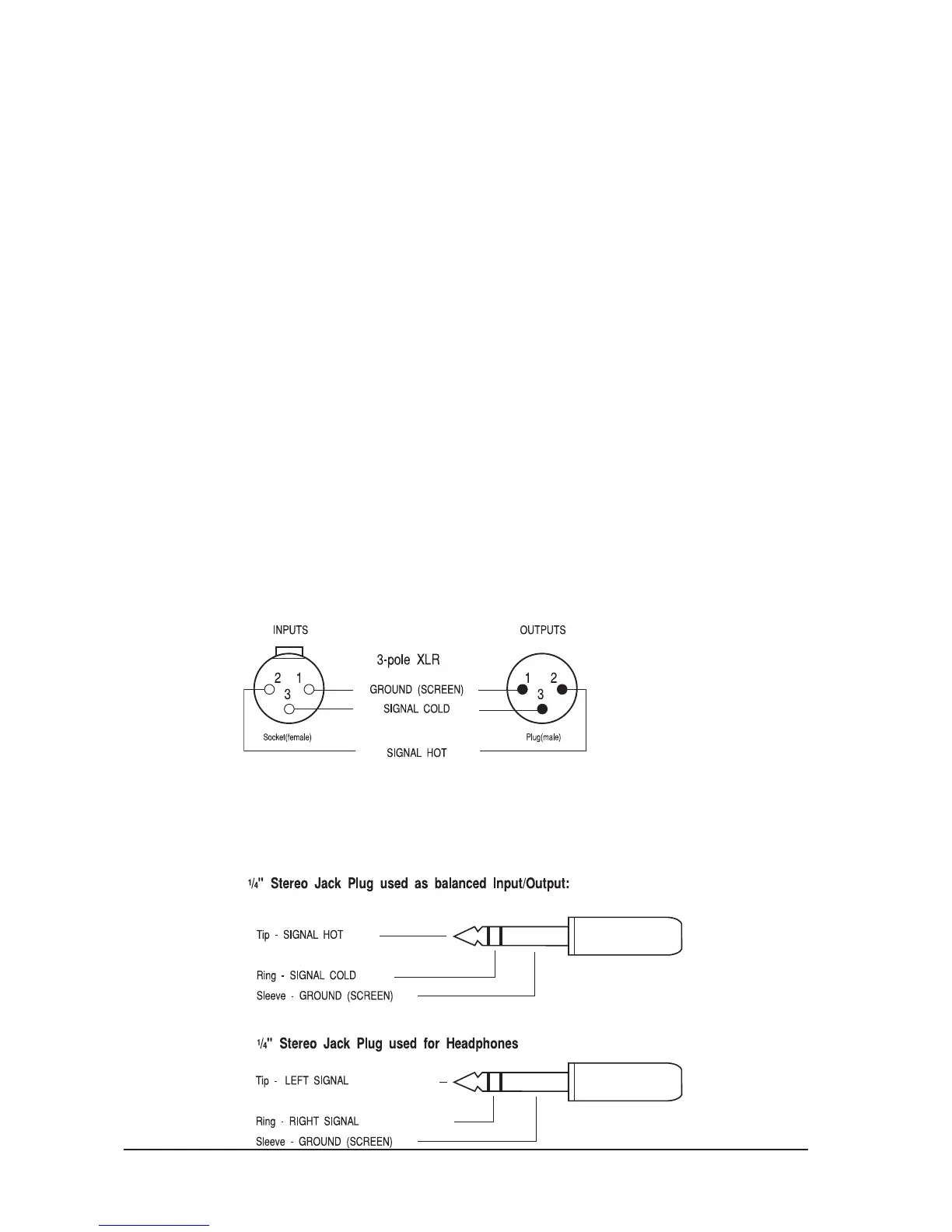

All inputs and outputs are balanced. Each channel-section rearcon module has the following connectors:
16 Mic/Line Input connectors and 8 Bus Output connectors, all on XLRs.

SoundCraft Si Series Specifications

General

Model Variants	Si Expression, Si Performer, Si Compact, Si Impact
Built-in Effects	Lexicon effects engine
Type	Digital mixer
EQ Bands	4-band EQ per channel
Subgroups	4 subgroups
Effects Engines	Lexicon effects engine
Faders	Motorized faders
Display	Varies by model
Dimensions	Varies by model
Weight	Varies by model
