Page 5 - 1Soundcraft® Si Series User Guide
MONITOR SYSTEM
The monitors system encompass the following four sub-systems:
Soloing
Audio Monitors
Talkback
CONTROLS

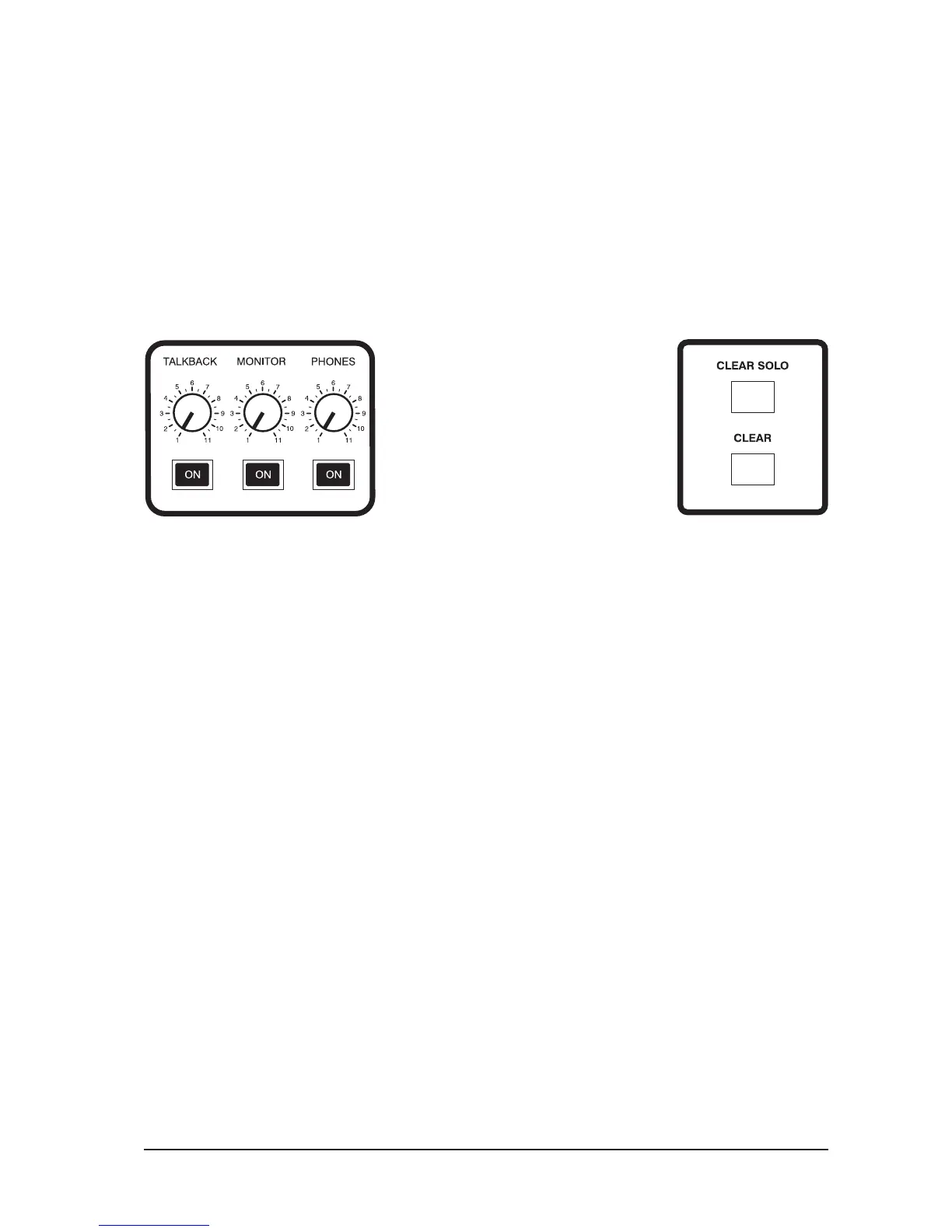

There are three volume controls for Talkback, Monitor and Headphones, each has its own ON button.
Whenever one or more SOLO buttons is active the CLEAR SOLO button illuminates. Pressing this will clear
all the active solos on all layers.
Other control functions are accessed via the touchscreen. These are discussed in the text where appropri-
ate.
CLEAR BUTTON
The CLEAR button is used to reset a large range of parameters to default conditions. The lists are shown
below.
Input bays: VCS/CHANNEL MODE/GLOBAL MODE
This uses interrogate/clear mode, i.e. press and hold one of the VCS/CM/GM buttons in the three lists be-
low, all of the input channels, in that bay and selected bank, which have the selected parameter set will be
revealed by illuminating their SEL buttons. Pressing the CLEAR button will result in the described action.
VCS Buttons Action
48v Switches 48v button selections OFF for all channels
Phase Switches PHASE button selections OFF for all channels
Delay Switches DELAY button selections OFF for all channels
Filters Switches FILTER button selections OFF for all channels
Gate In Switches GATE IN button selections OFF for all channels
Comp In Switches COMP IN button selections OFF for all channels
EQ In Switches EQ button selections OFF for all channels
LR Switches LR button selections OFF for all channels
C Switches C button selections OFF for all channels
LCR Switches all LCR button selections OFF for all channels
Isolate Switches ISOLATE button selections OFF for all channels
