Page 6 - 5Soundcraft® Si Series User Guide

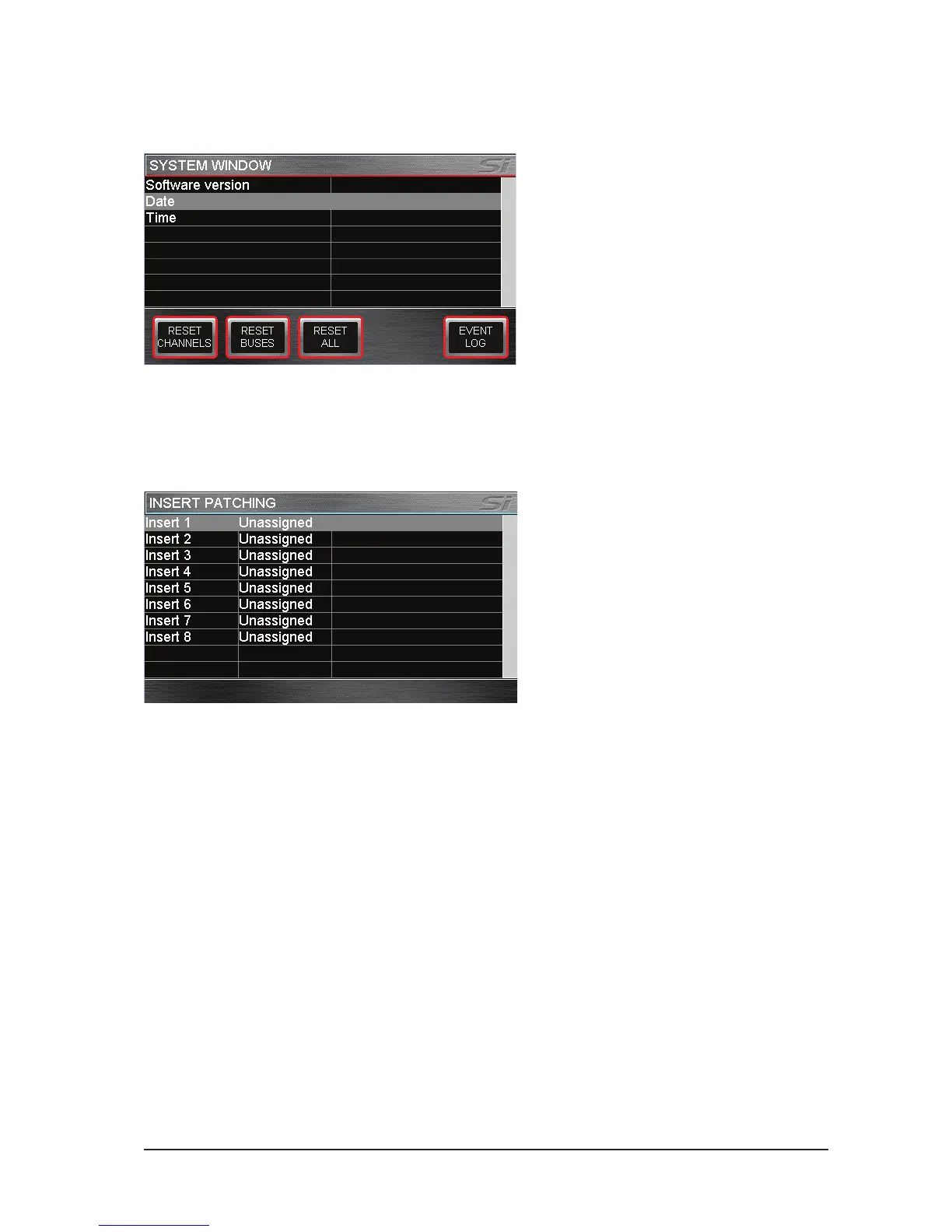

INSERT
This page allows the user to patch the 8 insert points and 4 Lexicon FX processors to where they are
needed.
The ADJUST knob moves the selected line through the list, pressing the knob highlights the current item. To
patch to a channel or bus press the required SEL button. Rotate the Adjust knob to select the required feed
point into the channel/bus.
INSERTS
The physical insert sends and returns are located on the rear connector panel. These can be patched to any
of the input channels (pre-EQ), to any of the output buses (pre-EQ, post-EQ or Post-fade),the matrix outputs
or the LCR buses.
LEXICONS
By default the Lexicon FX processors are inserted into buses 21 to 24. These buses are named LEX1 to LEX4.
In addition, the last four channels on bank D are hard-coded to the stereo outputs of the 4 FX processors
as Stereo FX Returns. These Returns can be routed to any of the output buses or main mix. Care should be
taken not to send signal to their own LEX send bus, otherwise feedback will occur.
SYSTEM
This page allows the user to reset Channels and Buses to factory-default settings.
