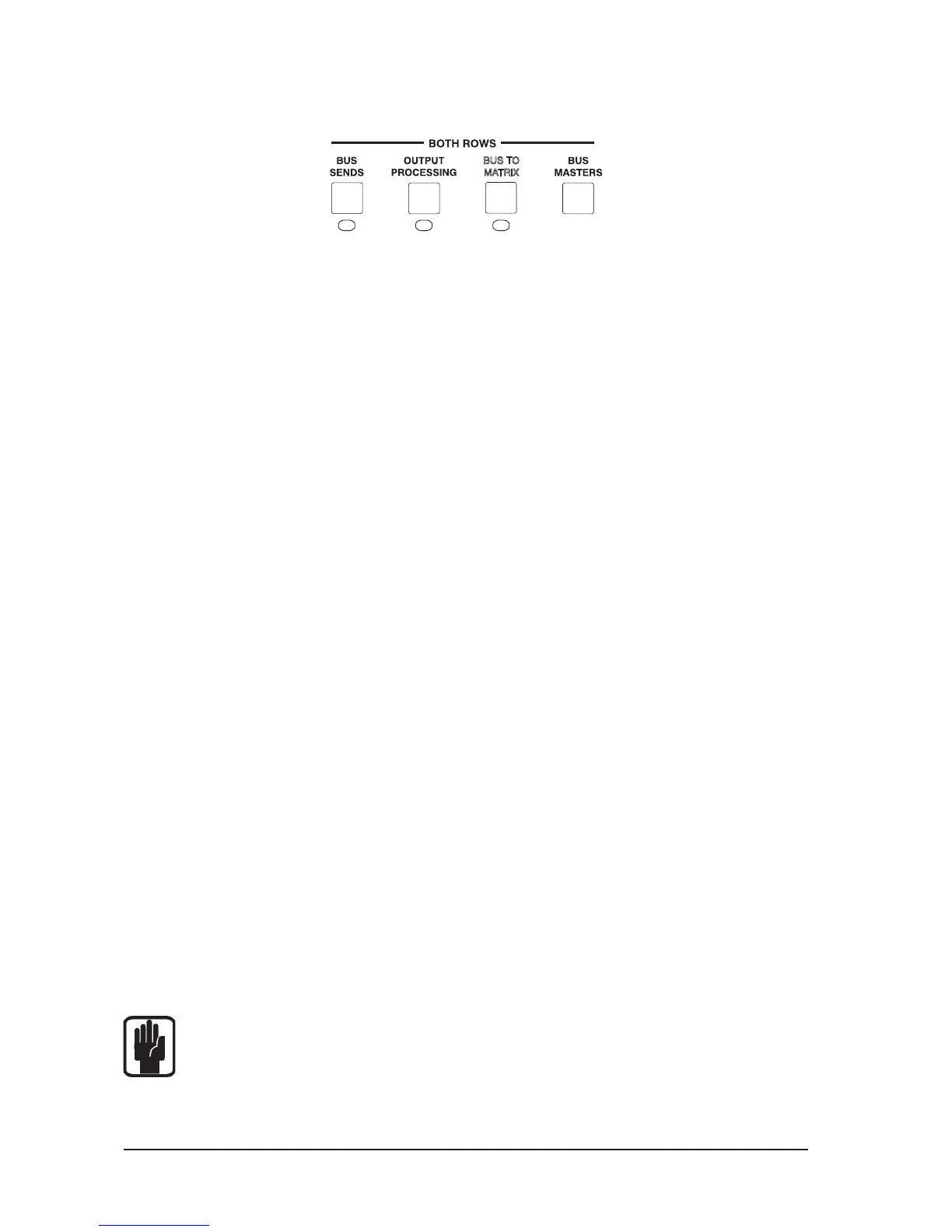

BOTH ROWS Buttons
There are 4 buttons in the Both Rows section
BUS SENDS Both the upper and lower rows of encoders in the output master section function as individu-
al bus (Aux/Group) sends 1-24 for any selected input channel fader.
Note: by default the 4 on-board Lexicon™ effects are inserted into busses 21-24. They are
inserted post-fader.
The AUX PRE button at the left of the upper row of switches can be used to switch any of the
bus sends between pre or post fade. When the AUX PRE button is active any encoder can be
pressed to toggle its send’s pre/post setting. The bus send can also be set ON at unity or OFF
at - inf by pushing & holding the encoder.
OUTPUT PROCESSING When the OUTPUT PROCESSING button is pressed, both rows of encoders and
the switches in the upper row section are used for controlling and processing a selected bus,
matrix or master output.
This is very similar to the facilities available on the VCS™ r input channels.
Any selected bus may have the following facilities appled:
4-band parametric EQ
Compressor
Delay
AFL trim (not for Matrix 1-8, L, R, C)
Phase reverse (not for L, R, C)
Isolate
Insert.
BUS TO MTX Both the upper and lower rows of encoders in the output master section function as indi-
vidual sends from buses 1-24 and the Left/Right/Centre buses to a selected matrix output.
Selecting the BUS TO MTX button will prime the button (illuminated orange), the user must
then select the MTX/MAST button found in the Output Fader select section. The chosen Matrix
output is then selected by pressing an output fader SEL button.
The encoders will normally control the sends from buses 1-24. To access sends from the
L, R and C buses press the button below the top-row right-hand display window : the encod-
ers used for buses 22-24 will now control the L, R and C buses.
BUS MASTERS Both the upper and lower rows of encoders in the output master section function as Mas-
ter level controls for bus outputs 1-24.
The BUS PRE button at the left of the upper row can be used to globally switch an entire
bus’ input channel feeds to be either pre or post fader.
When the BUS PRE button is active, the encoder for the chosen bus can be used to toggle
between pre and post fade feeds for the entire bus.
Note: if the bus is congured as a Group, the BUS PRE button has no effect.
Note: selecting a button in either the Upper or Lower Row section will extinguish any of the BOTH
ROWS buttons.
Note: Remember, individual channels may have their pre/post settings changed in the CHANNEL or
GLOBAL modes if a mix of pre and post sends to the same bus is required.
